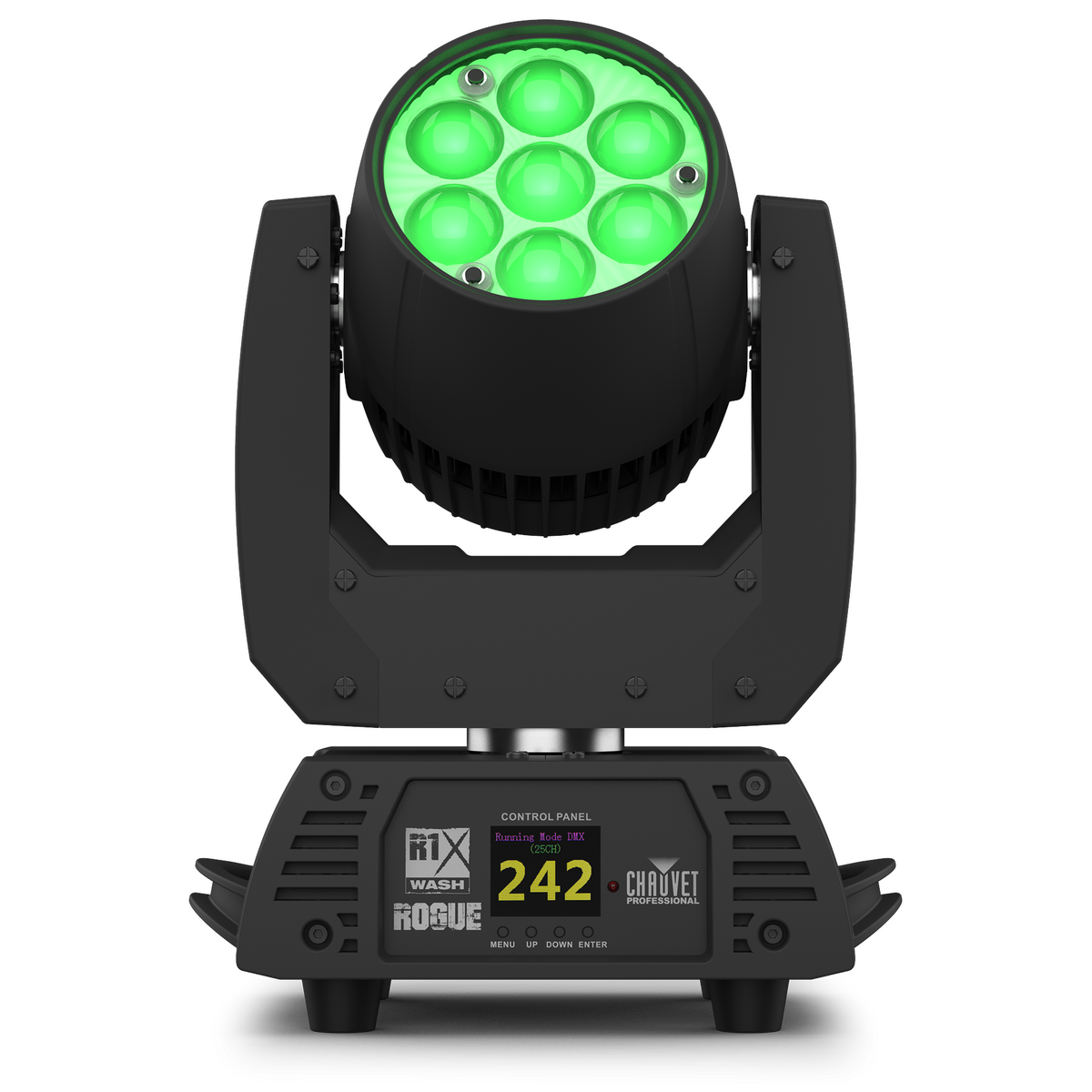

Chauvet Professional Rogue R1X Wash RGBW LED Moving Head Wash Light

Get Bright Washes and Smooth Zoom Control with the CHAUVET Professional Rogue R1X Wash Moving Head Wash Fixture

A bright and versatile moving wash zoom fixture powered by seven RGBW quad-LEDs, featuring a unique bubble lens for excellent color rendering and a wide 7.9° to 62.7° zoom range. Its blend of versatility, value, and performance makes this fixture a welcome addition to any touring rig or permanent installation.

• Features 16-bit dimming for smooth fades across master and individual color channels.
• Delivers quick and fluid 540° pan and 230° tilt for dynamic lighting effects.
• Supports DMX and RDM protocols with both 3-pin and 5-pin DMX connections.
• Provides selectable PWM settings to ensure flicker-free performance for on-camera use.
• Offers a user-selectable calibrated white setting for a consistent 7500 K output.
• Selectable LED output allows for seamless matching with legacy Rogue R1 Wash fixtures.

Rogue R1X Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique “bubble” lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 7.9° to 62.7° zoom range, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.

RGBW LED Wash with Zoom

A fully featured RGBW LED yoke wash fixture that includes a versatile zoom function.

16-Bit Dimming Control

Achieve exceptionally smooth fades with 16-bit dimming for the master dimmer and individual colors.

High Power LEDs

Features seven powerful 25-watt RGBW LEDs for bright, vibrant color output.

Versatile DMX Connections

Includes both 3-pin and 5-pin DMX input and output connections for flexible integration.

Superior Color Blending

A unique lens design ensures excellent mixing and blending of colors for a seamless wash.

Fast and Smooth Movement

Delivers quick and fluid pan and tilt movement for dynamic lighting effects.

RDM Enabled

Allows for remote addressing and troubleshooting, simplifying setup and maintenance.

Legacy Fixture Matching

Offers a selectable maximum LED output to perfectly match the performance of older Rogue R1 Wash fixtures.

Flicker-Free Camera Operation

Provides selectable PWM settings to ensure flicker-free performance when used with cameras.

Advanced Dimming Modes

Choose from six distinct dimming modes for advanced control and customized fade curves.

Calibrated White Point

A user-selectable calibrated white setting provides a consistent 7500 K color temperature at full output.

Universal Mounting Bracket

Comes with an Omega mounting bracket that is compatible with all Rogue and Maverick series fixtures.

OLED Display and Menu

Features an easy-to-read OLED display with a simple and effective menu for effortless configuration.

Flexible DMX Profiles

Offers both simple and complex DMX channel profiles to suit a variety of programming needs.

SPECIFICATIONS

Optical

• Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature Range: 2800 to 10000 K
• Beam Angle: 7.9° to 35.5°
• Field Angle: 11.5° to 50.8°
• Cutoff Angle: 19.3° to 62.7°
• Zoom Range: 7.9° to 62.7°
• Lumens - Source: 4,000
• Lumens - Output: 2,455
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction and Physical

• Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
• Weight: 13.6 lb (6.2 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 14, 15, 19, or 21
• Modes/Personalities: 4 personalities (14, 15, 19, 21)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V
• Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
• Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
• Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

Certifications and Qualifications

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
