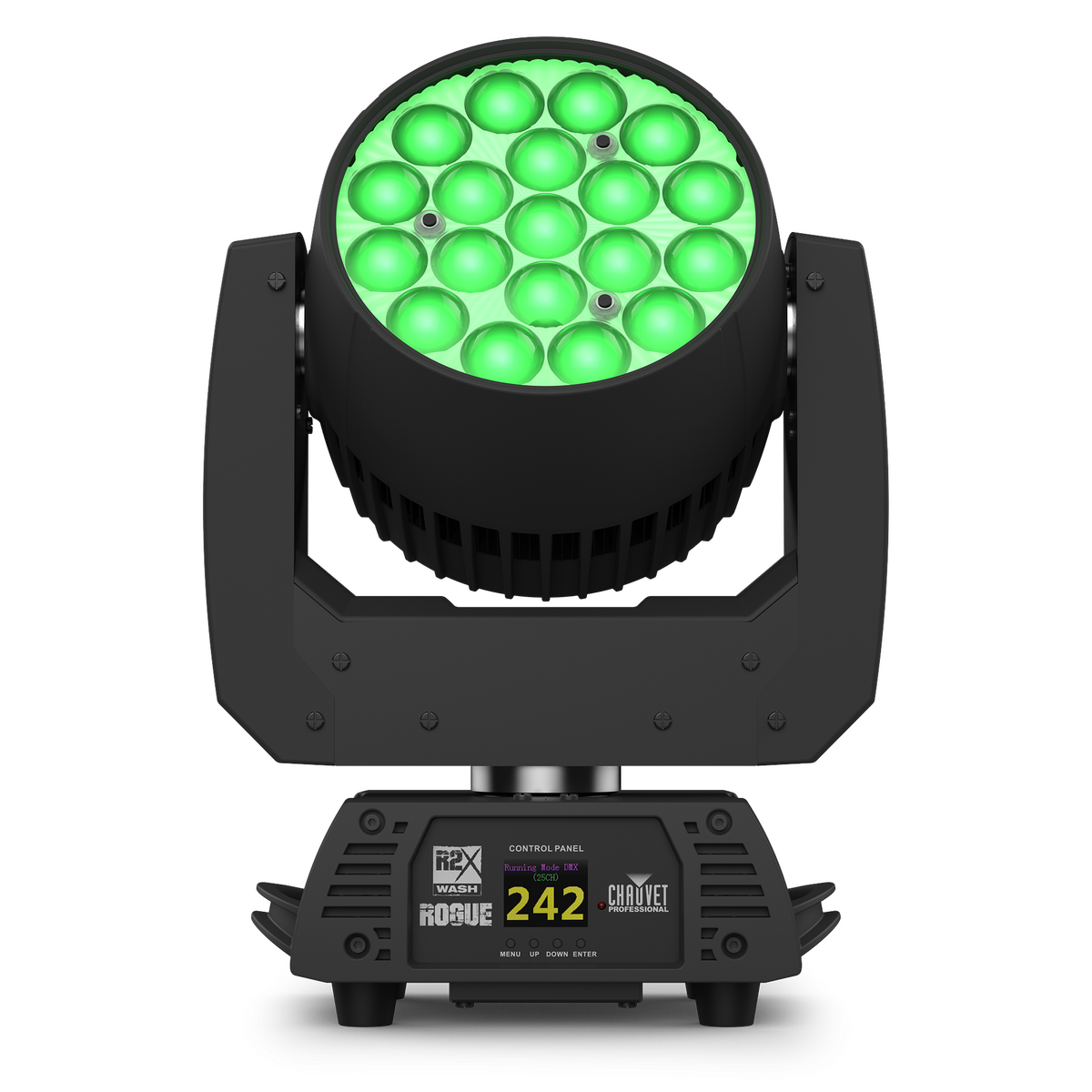

Chauvet Professional Rogue R2X Wash Moving Head

Get Powerful Wide-Area Washes With the Rogue R2X Wash Moving Wash Fixture

A bright and durable moving wash workhorse featuring 19 RGBW quad-LEDs with five-zone pixel control and an expansive zoom range for versatile area coverage. An essential addition for rental and production inventories, this fixture is perfectly suited for any application demanding powerful, wide-area washes and creative pixel-mapping effects.

• Delivers an expansive 7.3° to 64.3° zoom range for versatile beam and wash applications.
• Offers a wide color temperature range from 2800 K to 10000 K for flexible white light.
• Achieves exceptionally smooth fades with 16-bit dimming and six selectable dimming curves.
• Simplifies setup and troubleshooting with RDM for remote addressing and fixture management.
• Ensures flicker-free operation on camera with selectable Pulse Width Modulation settings.
• Matches legacy fixtures with a selectable maximum output level for seamless integration.

Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 7.3° to 64.3° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

RGBW LED Yoke Wash Fixture

A fully featured wash light with powerful RGBW LEDs, zoom capability, and independent zone control.

16-Bit Dimming

Achieve exceptionally smooth fades with high-resolution dimming for the master dimmer and individual colors.

High-Power RGBW LEDs

Equipped with nineteen 25-watt RGBW LEDs for intense brightness and vibrant color output.

Versatile DMX Connections

Includes both 3-pin and 5-pin DMX input and output connections for flexible system integration.

Five-Zone LED Control

Create dynamic pixel-mapping effects with control over five independent zones of LEDs.

Superior Color Blending

A unique lens design ensures excellent color mixing and a smooth, even field of light.

Fast Pan and Tilt

Delivers quick and fluid pan and tilt movements for dynamic positioning and effects.

RDM Enabled

Allows for remote addressing and troubleshooting, simplifying setup and maintenance.

Legacy Fixture Matching

Select a maximum output level to seamlessly match the performance of older Rogue R2 Wash fixtures.

Camera-Ready Operation

Offers selectable Pulse Width Modulation settings to ensure flicker-free performance on camera.

Advanced Dimming Modes

Choose from six distinct dimming curves for advanced and customized lighting control.

Universal Mounting Bracket

The included Omega mounting bracket is compatible with all Rogue and Maverick series fixtures.

Easy-to-Read OLED Display

Navigate settings effortlessly using the clear OLED display and a simple, effective menu system.

Flexible DMX Profiles

Provides both simple and complex DMX channel profiles for programming versatility.

SPECIFICATIONS

Optical

• Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (Range): 2800 to 10000 K
• Beam Angle: 7.3° to 35.2°
• Field Angle: 11.2° to 51.2°
• Cutoff Angle: 17.6° to 64.3°
• Zoom Range: 7.3° to 64.3°
• Lumens – Source: 10,300
• Lumens – Output: 6,418
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction/Physical

• Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
• Weight: 22.8 lb (10.3 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 15, 17, 22, 33, 54, or 56
• Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
• Power and Current: 342 W, 2.85 A @ 120 V, 60 Hz
• Power and Current: 338 W, 1.631 A @ 208 V, 60 Hz
• Power and Current: 344 W, 1.488 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

Compatible Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• Neutrik powerCON cables
• DMX Cables
• Flight Case: CP6CASER2W
• UPLOAD 08

What’s Included

• Rogue R2X Wash
• Neutrik powerCON power cord
• Omega bracket with mounting hardware
