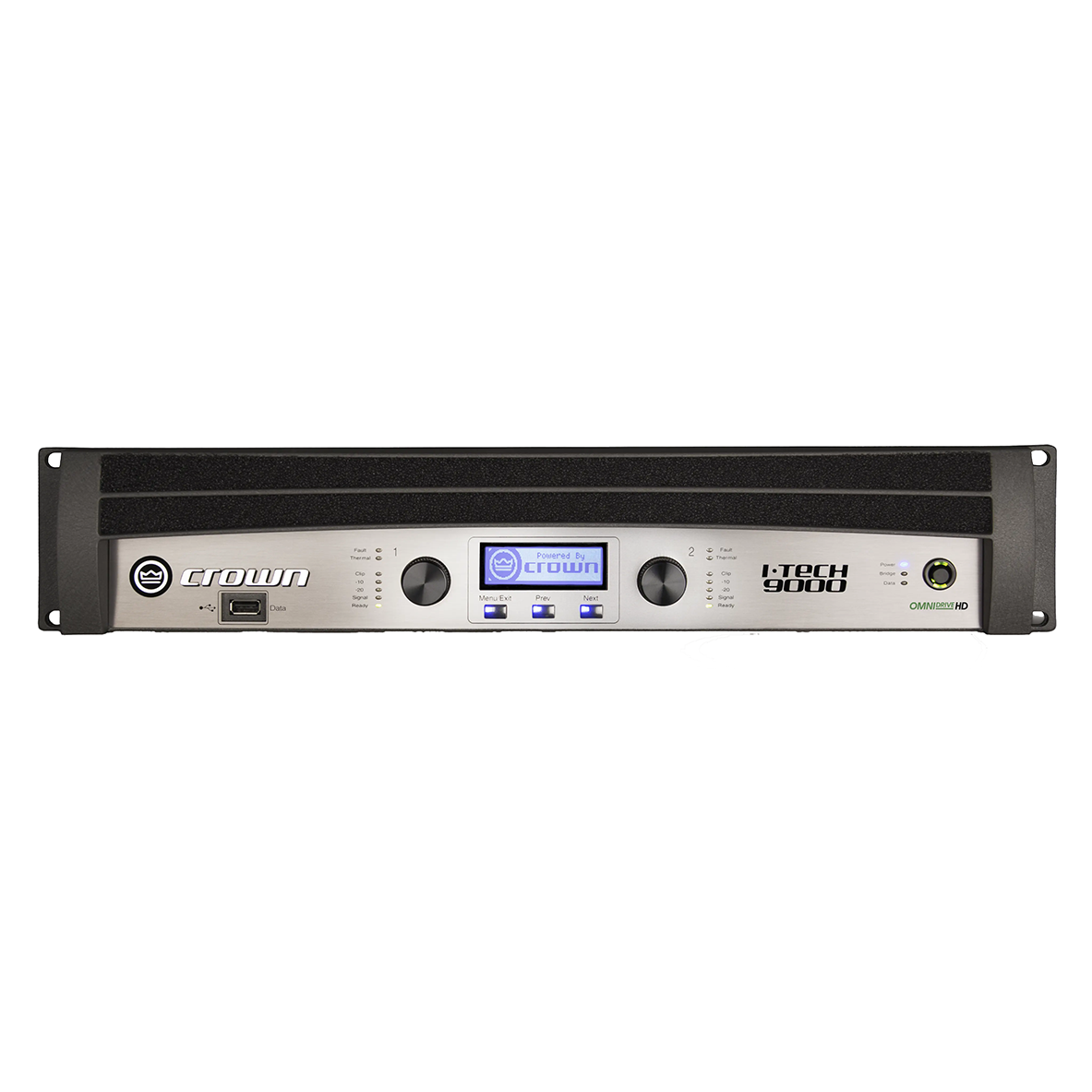

Crown Audio I-Tech 9000HD Two-channel 3500W Power Amplifier

Tour-Grade Power and Processing – The Crown I-Tech 9000HD 2-Channel Power Amplifier

The Crown I-Tech 9000HD is a two-channel professional power amplifier designed for demanding touring and installed sound applications. Delivering up to 3500 watts per channel at 4 ohms, it combines patented Class-I amplification with BSS OMNIDRIVEHD DSP, high-resolution 24-bit/192 kHz conversion, advanced LevelMAX limiting, Ethernet networking, and flexible analog and digital connectivity for powerful, precise system performance.

• Two-channel professional power amplifier delivering up to 3500 W per channel at 4 ohms
• BSS OMNIDRIVEHD DSP processing with IIR and linear-phase FIR filters
• 24-bit/192 kHz Cirrus Logic SHARC A/D and D/A converters
• LevelMAX peak-voltage and RMS-power limiters for smooth, accurate system protection
• 6th-generation patented Class-I BCA amplification circuitry
• True Ethernet backbone for fast, reliable, and scalable system control
• Analog, AES/EBU, CobraNet, HiQnet, and Ethernet connectivity
• Front-panel USB connector for transferring presets to and from a USB drive
• SLM Sweep Load Monitoring provides system-level diagnostics
• Universal 100-240 VAC, 50/60 Hz power supply
• User-definable front-panel security
• Designed for professional touring and installed sound applications

BSS OMNIDRIVEHD Processing

At the heart of the I-Tech 9000HD is the BSS OMNIDRIVEHD processing engine. It supports both IIR and linear-phase FIR filters and delivers high-definition signal processing through 24-bit/192 kHz Cirrus Logic SHARC A/D and D/A converters.

LevelMAX Limiting

LevelMAX peak-voltage and RMS-power limiters communicate with each other to provide smooth and accurate loudspeaker protection while preserving overall sound quality. This coordinated limiting helps maintain consistent performance during demanding high-output operation.

High-Efficiency Class-I Amplification

Crown's 6th-generation patented Class-I BCA circuitry efficiently couples amplifier power to the load while helping reduce AC current draw. Full power-supply voltage remains available for instantaneous power demand, while increased energy reserves support clean transient peaks.

Flexible System Connectivity

The I-Tech 9000HD supports analog, AES/EBU, CobraNet, HiQnet, and Ethernet connectivity. Inputs can be routed to available outputs as required, giving system designers and touring engineers extensive flexibility when integrating the amplifier into complex audio systems.

Advanced Monitoring and Control

SLM Sweep Load Monitoring provides system-level diagnostics, while true tachometer feedback monitors fan operation for precise thermal management and fan-fault protection. A front-panel USB connector allows presets to be transferred between the amplifier's DSP and a USB drive, while user-definable front-panel security helps prevent unauthorized changes.

SPECIFICATIONS

Amplifier

• Channels: 2
• Output Power: Up to 3500 W per channel at 4 ohms
• Amplifier Technology: 6th-generation patented Class-I BCA circuitry
• Peak Output Voltage: 200 Vrms
• Sensitivity: 1.4 Vrms to 7.75 Vrms

Audio Performance

• Signal-to-Noise Ratio: >112 dB
• THD: <0.1%
• Intermodulation Distortion: <0.2%
• Frequency Response: +/-0.25 dB
• Crosstalk: >80 dB
• Common Mode Rejection: >70 dB typical

DSP and Processing

• Processing Engine: BSS OMNIDRIVEHD
• Filter Types: IIR and linear-phase FIR
• Converters: 24-bit/192 kHz Cirrus Logic SHARC A/D and D/A
• Limiters: LevelMAX peak-voltage and RMS-power limiting
• Load Monitoring: SLM Sweep Load Monitoring

Connectivity and Control

• Analog Audio: Supported
• AES/EBU: Supported
• CobraNet: Supported
• HiQnet: Supported
• Ethernet: Supported
• USB: Front-panel connector for preset transfer
• Front-Panel Security: User-definable

Power

• Power Supply: Global universal power supply
• AC Input: 100-240 VAC, 50/60 Hz, +/-15%
• Power Connector: 20A IEC

Dimensions and Weight

• Dimensions (H x W x D): 89 x 483 x 411 mm / 3.5 x 19 x 16.2 inches
• Net Weight: 12.7 kg / 28 lbs
• Shipping Weight: 16.3 kg / 36 lbs
