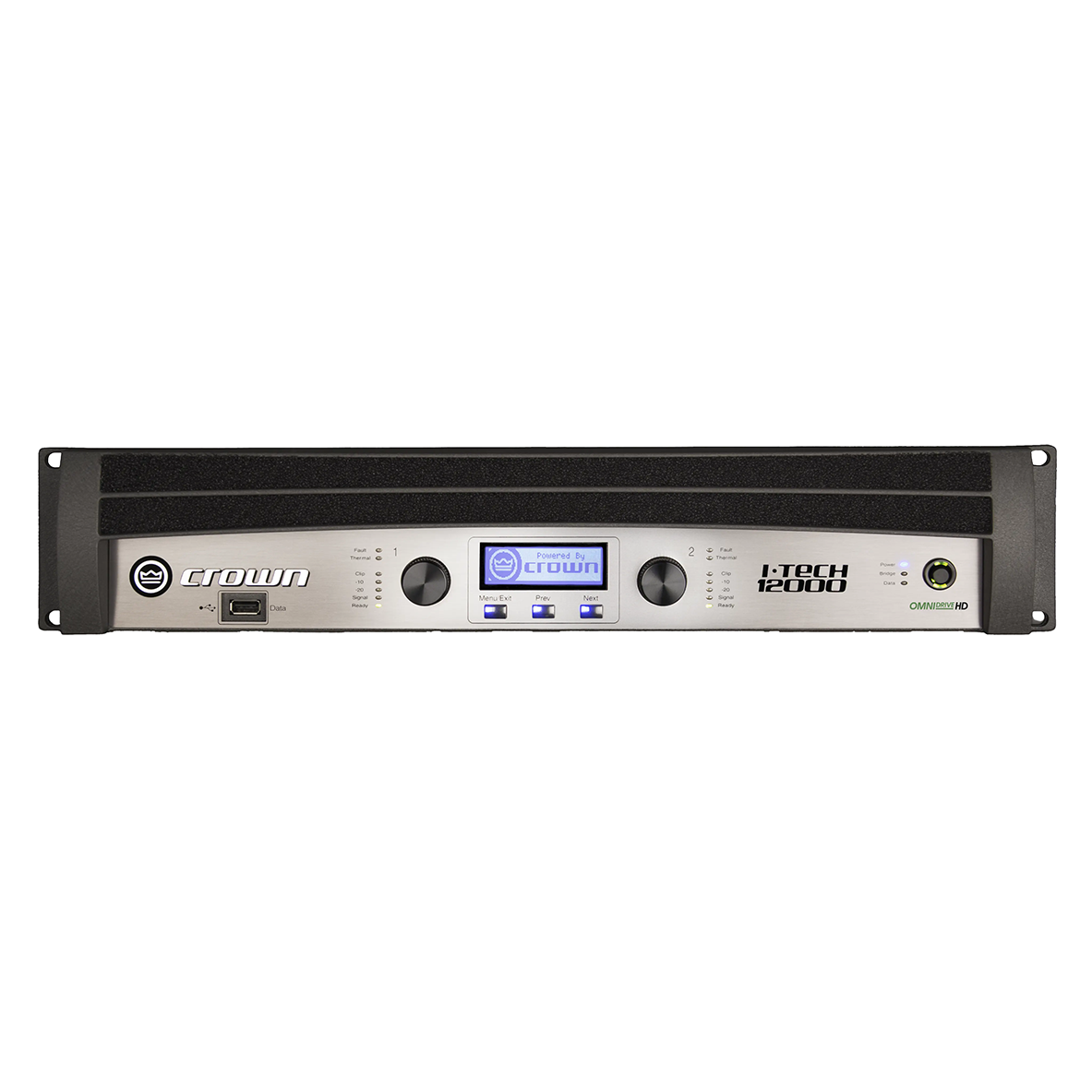

Crown I-Tech 12000HD 4,500-Watt 2-Channel Power Amplifier

Tour-Grade Power and Processing – The Crown I-Tech 12000HD 2-Channel Power Amplifier

The Crown I-Tech 12000HD is a two-channel professional power amplifier designed for demanding touring and installed sound applications. Delivering up to 4500 watts per channel at 4 ohms, it combines patented Class-I amplification with BSS OMNIDRIVEHD DSP, high-resolution 24-bit/192 kHz conversion, advanced LevelMAX limiting, Ethernet connectivity, and a universal power supply for powerful, precise, and highly configurable system performance.

• Two-channel professional power amplifier delivering up to 4500 W per channel at 4 ohms
• BSS OMNIDRIVEHD DSP with IIR and linear-phase FIR filtering
• 24-bit/192 kHz Cirrus Logic SHARC A/D and D/A conversion
• LevelMAX peak-voltage and RMS-power limiters provide smooth, accurate system protection
• Patented Class-I BCA amplifier circuitry delivers efficient high-power performance
• True Ethernet backbone for fast, scalable system control
• Analog, AES/EBU, CobraNet, HiQnet, and Ethernet connectivity
• Front-panel USB port supports preset transfer to and from a USB drive
• SLM Sweep Load Monitoring provides system-level diagnostics
• Universal 100-240 VAC, 50/60 Hz power supply
• User-definable front-panel security
• Designed for installed sound and professional touring applications

BSS OMNIDRIVEHD Processing

At the heart of the I-Tech 12000HD is the BSS OMNIDRIVEHD processing engine. Designed for high-performance professional systems, it supports IIR filters and linear-phase FIR filters while providing high-resolution signal processing through 24-bit/192 kHz Cirrus Logic SHARC A/D and D/A converters.

LevelMAX Limiting

LevelMAX peak-voltage and RMS-power limiters work together to provide smooth, accurate loudspeaker protection while preserving sound quality. This coordinated limiting architecture helps maintain consistent response during demanding high-output operation.

High-Efficiency Class-I Amplification

Crown's sixth-generation patented Class-I BCA circuitry efficiently couples amplifier power to the load while helping reduce AC current draw. Full power-supply voltage is continuously available, allowing the amplifier to respond quickly to transient peaks and demanding program material.

Flexible System Connectivity

The I-Tech 12000HD supports analog, AES/EBU, CobraNet, HiQnet, and Ethernet connectivity, allowing inputs to be routed to available outputs as required. A front-panel USB connector enables presets to be transferred between the amplifier's DSP and a USB drive for faster system setup and configuration.

Advanced Monitoring and Protection

SLM Sweep Load Monitoring provides system-level diagnostics, while true tachometer feedback monitors fan performance for improved thermal protection and control. High common-mode rejection also helps minimize hum and radio-frequency interference on input cabling.

SPECIFICATIONS

Amplifier

• Channels: 2
• Output Power: Up to 4500 W per channel at 4 ohms
• Amplifier Technology: 6th-generation patented Class-I BCA circuitry
• Peak Output Voltage: 200 Vrms
• Sensitivity: 1.4 Vrms to 7.75 Vrms

Audio Performance

• Signal-to-Noise Ratio: >112 dB
• THD: <0.1%
• Intermodulation Distortion: <0.2%
• Frequency Response: +/-0.25 dB
• Crosstalk: >80 dB
• Common Mode Rejection: >70 dB typical

DSP and Processing

• Processing Engine: BSS OMNIDRIVEHD
• Filter Types: IIR and linear-phase FIR
• Converters: 24-bit/192 kHz Cirrus Logic SHARC A/D and D/A
• Limiters: LevelMAX peak-voltage and RMS-power limiting
• Load Monitoring: SLM Sweep Load Monitoring

Connectivity and Control

• Analog Audio: Supported
• AES/EBU: Supported
• CobraNet: Supported
• HiQnet: Supported
• Ethernet: Supported
• USB: Front-panel connector for preset transfer
• Front-Panel Security: User-definable

Power

• Power Supply: Global universal power supply
• AC Input: 100-240 VAC, 50/60 Hz, +/-15%
• Power Connector: 20A IEC

Dimensions and Weight

• Dimensions (H x W x D): 89 x 483 x 411 mm / 3.5 x 19 x 16.2 inches
• Net Weight: 12.7 kg / 28 lbs
• Shipping Weight: 16.3 kg / 36 lbs
