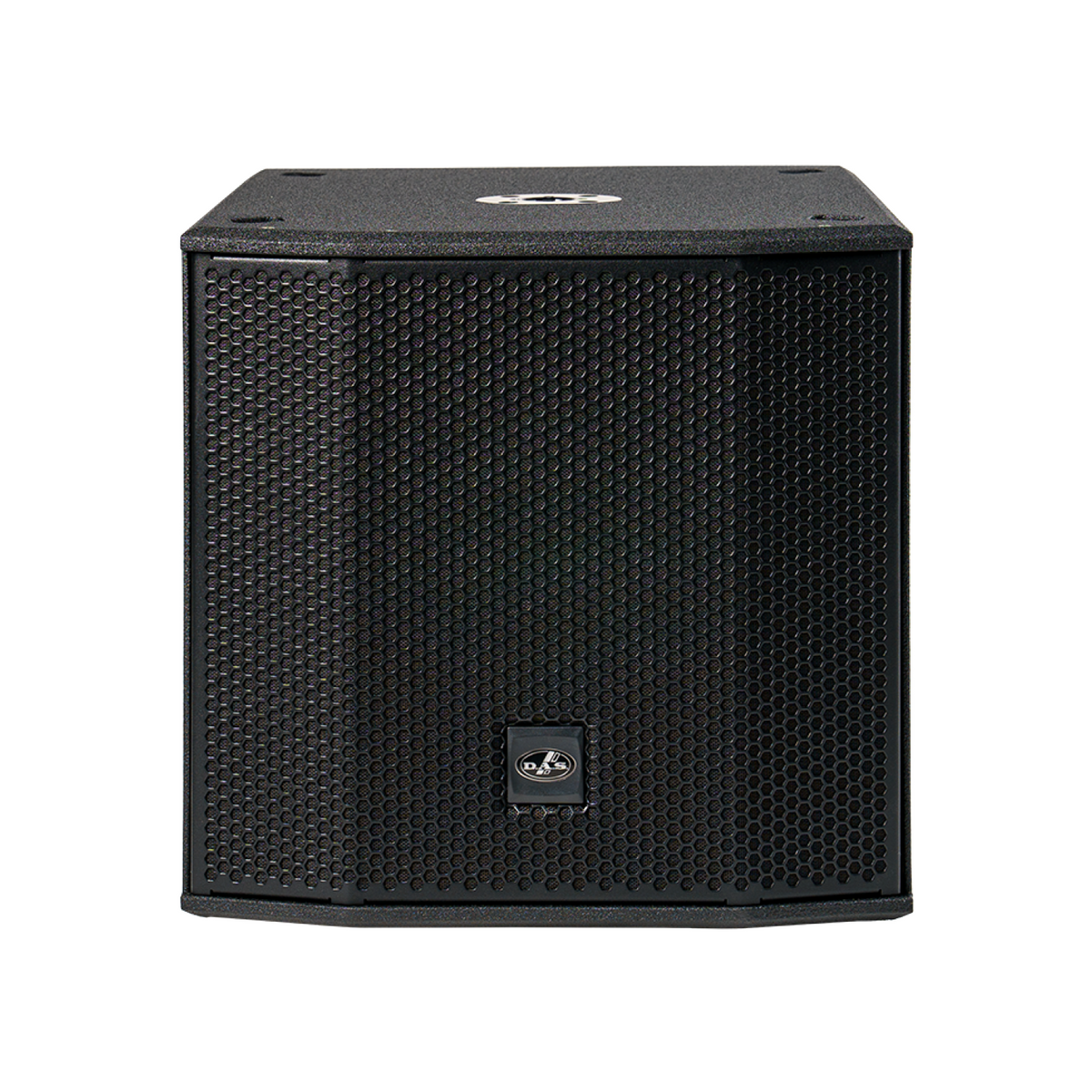

D.A.S. Audio ALTEA-S15A Powered 15-Inch Bass Reflex Subwoofer System

Sound With Soul - The D.A.S. Audio ALTEA-S15A Powered 15-Inch Bass Reflex Subwoofer System

The ALTEA-S15A is a compact yet powerful active subwoofer with a bass-reflex design that delivers deep frequency response and impressive sound pressure levels. The 15″ DAS 15FW4 woofer boasts a high-quality construction with a 3″ voice coil and die-cast aluminium basket, allowing for high excursion and a power handling of 600 watts/AES. An optimized ventilation system enables a high sustained load with extremely reduced power compression. The woofer is driven by an integrated Class-D power amplifier with a wide-range switching power supply, providing 600 watts/RMS and 1200 watts/peak, enabling up to 131dB/max SPL with a frequency response of 40Hz to 125kHz. The ALTEA-S15A also features an extensive range of settings to ensure the best possible performance. PowerCon In/Out power connections are included, while the integrated DSP with DAScontrol™ (LCD display+encoder) allows for adjustable crossover frequencies, two sound presets (deep/loud), and cardioid presets. With the cardioid presets you can quickly and easily create setups with multiple ALTEA-S15A units to reduce the sound energy emitted to the rear. The ALTEA-S15A cabinet is constructed of high-quality birch plywood and finished with our rugged ISOflex™ PU coating. The high-quality front grille is powder-coated. For transport, in addition to two side handles, the ALTEA-S15A is prepared for the mounting of rear wheels.

SPECIFICATIONS

• Performance:
  • Frequency Range (-10 dB): 40 Hz – 125 Hz
  • Maximum Peak SPL at 1 m: 131 dB
• Electronics and Connectors:
  • Nominal Amplifier Power (continuous): 600 W
  • Nominal Amplifier Power (peak): 1200 W
  • Input Type: Balanced
  • Input Impedance: 20 kohms
  • Input Sensitivity: 1.95 V (+8 dBu)
  • Audio Signal Input Connector: 2 x Female XLR
  • Audio Signal Loop Thru Connector: 2 x Male XLR
  • Control: DAScontrol™
  • AC Output Connector: powerCON NAC3MPB
  • Current Draw 230 V / 115 V: 1.4 A/2.8 A
• Enclosure:
  • Construction: Birch Plywood
  • Geometry: Rectangular
  • Finish: ISO-flex Paint
  • Color: Black
  • Dimensions (H x W x D): 470 x 485 x 685 mm (18.5 x 19.1 x 27.0 in)
  • Net Weight: 30.0 kg (66.0 lb)
• Components:
  • LF Driver: 15FW4
• Shipping:
  • Carton Dimensions (H x W x D): 515 x 525 x 716 mm (20.3 x 20.7 x 28.2 in)
  • Shipping Weight: 35.0 kg (77.0 lb)
