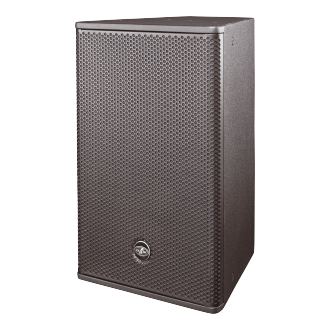

DAS Artec 312.96 Passive 12-Inch Installation Loudspeaker - Black

Deliver Full-Range Sound with the DAS Artec 312.96 Passive 12-Inch Installation Loudspeaker - Black

The ARTEC-312.96 is a compact 2-way full-range loudspeaker system comprised of one 12-inch low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

• Passive, 300 W, 12-inch, 2 way full-range, 90 x 60 rotatable horn, black
• SPL Max: 127 dB
• Dispersion: 90º x 60º
• Weight: 18,5 kg / 40,8 lb

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration.

The cabinet is fitted with M10 threaded suspension points.

SPECIFICATIONS

Performance

• Frequency Range: 50 Hz - 20 kHz at -10 dB
• Horizontal Coverage: 90º at -6 dB
• Vertical Coverage: 60º
• Nominal Impedance: 8 ohms
• RMS Power Handling: 300 W
• Peak Power Handling: 1200 W
• On-Axis Sensitivity: 96 dB SPL at 1 W / 1 m
• Maximum Peak SPL: 127 dB at 1 m
• Recommended Amplifier: INTEGRAL-A402, INTEGRAL-A404, INTEGRAL-A1002, INTEGRAL-A1004, INTEGRAL-A1602, INTEGRAL-A1604, INTEGRAL-MA1004, INTEGRAL-MA1604
• Recommended Processor: INTEGRAL-M88, INTEGRAL-MA1604, INTEGRAL-MA1004

Connectors

• Audio Input Connector: Covered barrier strip terminals
• Audio Output Connector: Covered barrier strip terminals

Enclosure

• Enclosure Construction: Birch plywood
• Enclosure Geometry: Trapezoidal
• Rigging: M10 rigging points
• Finish: ISO-flex paint
• Color: Black

Components

• LF Driver: 12MI
• HF Driver: M-34
• Horn/Waveguide: BC-916

Dimensions

• Dimensions: 615 x 385 x 375 mm / 24.2 x 15.2 x 14.8 inches
• Carton Dimensions: 710 x 450 x 450 mm / 28.0 x 17.7 x 17.7 inches

Weight

• Net Weight: 19.0 kg / 41.9 lb
• Shipping Weight: 21.0 kg / 46.3 lb
