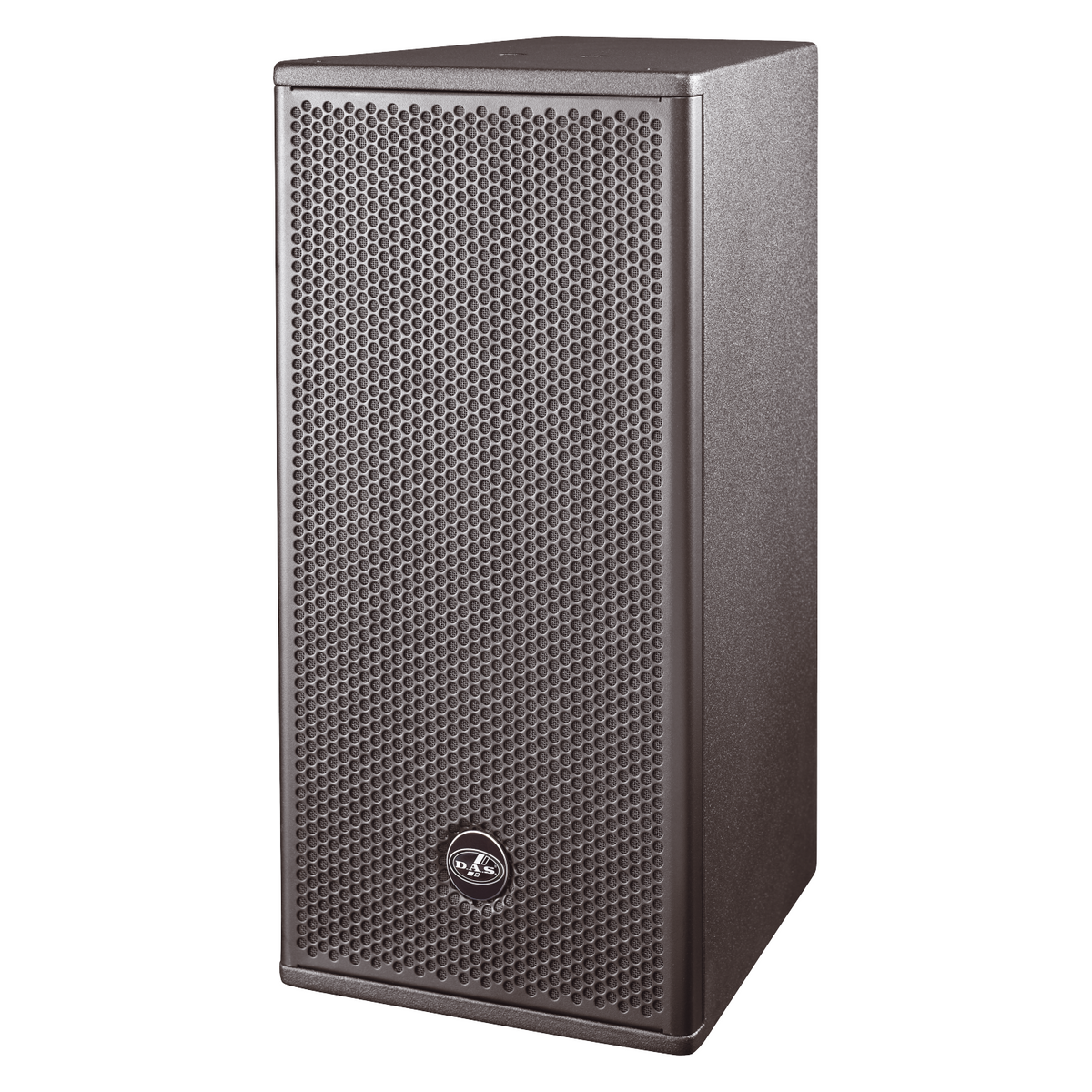

DAS Audio Artec 310.96-T - 1000W 10-inch Passive 2-Way 70V/100V Installation Loudspeaker with 90 x 60-Degree Coverage in Black Finish

DAS Audio Artec 310.96-T - 1000W 10-inch Passive 2-Way 70V/100V Installation Loudspeaker with 90 x 60-Degree Coverage in Black Finish

The ARTEC-310.96 is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays. The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount.

• The ARTEC-310.96-T features a 10-inch low-frequency transducer and M-34 compression driver with a titanium diaphragm for high-quality audio performance.
• It offers a frequency range of 60 Hz to 18 kHz, making it suitable for a variety of applications, including live sound and installations.
• The rotatable waveguide provides 90° x 60° coverage for flexible installation options while maintaining optimal sound dispersion.
• The cabinet is constructed from high-quality Baltic Birch plywood and finished in durable ISO-flex black paint for enhanced durability and aesthetics.
• The trapezoidal enclosure design minimizes standing wave coloration and allows for flexible installation in close-packed arrays.
• On-axis sensitivity of 90 dB SPL at 1W/1 m and maximum peak SPL of 126 dB at 1 m ensure powerful sound output.
• Nominal impedance of 8 ohms with RMS power handling of 250 W and peak power handling of 1000 W.
• Factory-installed multi-tap transformer provides power options for both 70V (12.5 W, 25 W, 50 W, 100 W) and 100V (25 W, 50 W, 100 W) systems.
• Includes an AXU-A310 U-bracket for easy mounting and installation.
• Overall dimensions: 24.0 x 11.6 x 13.6 inches; net weight: 34.2 lbs; shipping weight: 45.2 lbs; carton dimensions: 27.8 x 15.4 x 16.4 inches.

SPECIFICATIONS

• Frequency Range (-10 dB): 50 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 90º
• Vertical Coverage: 60º
• Nominal Impedance: 8 ohms
• RMS Power Handling: 250 W
• Peak Power Handling: 1000 W
• On-axis Sensitivity 1W/1 m: 96 dB SPL
• Maximum Peak SPL at 1 m: 126 dB
• Recommended Amplifiers: INTEGRAL-A402, INTEGRAL-A404, INTEGRAL-A1002, INTEGRAL-A1004, INTEGRAL-A1602, INTEGRAL-A1604, INTEGRAL-MA1004, INTEGRAL-MA1604
• Recommended Processors: INTEGRAL-M88, INTEGRAL-MA1604, INTEGRAL-MA1004
• Connectors:
  • Audio Input Connector: Covered Barrier Strip Terminals
  • Audio Output Connector: Covered Barrier Strip Terminals
• Enclosure:
  • Construction: Birch Plywood
  • Geometry: Trapezoidal
  • Rigging: M10 Rigging Points
  • Finish: ISO-flex Paint
  • Color: Black
  • Depth: 345 mm (13.6 in)
  • Dimensions (H x W x D): 610 x 295 x 345 mm (24.0 x 11.6 x 13.6 in)
  • Net Weight: 15.5 kg (34.2 lb)
• Components:
  • LF Driver: 10MI
  • HF Driver: M-34
  • Horn/Waveguide: BC-916
• Shipping:
  • Carton Dimensions (H x W x D): 705 x 391 x 416 mm (27.8 x 15.4 x 16.4 in)
  • Shipping Weight: 19.5 kg (43.0 lb)
