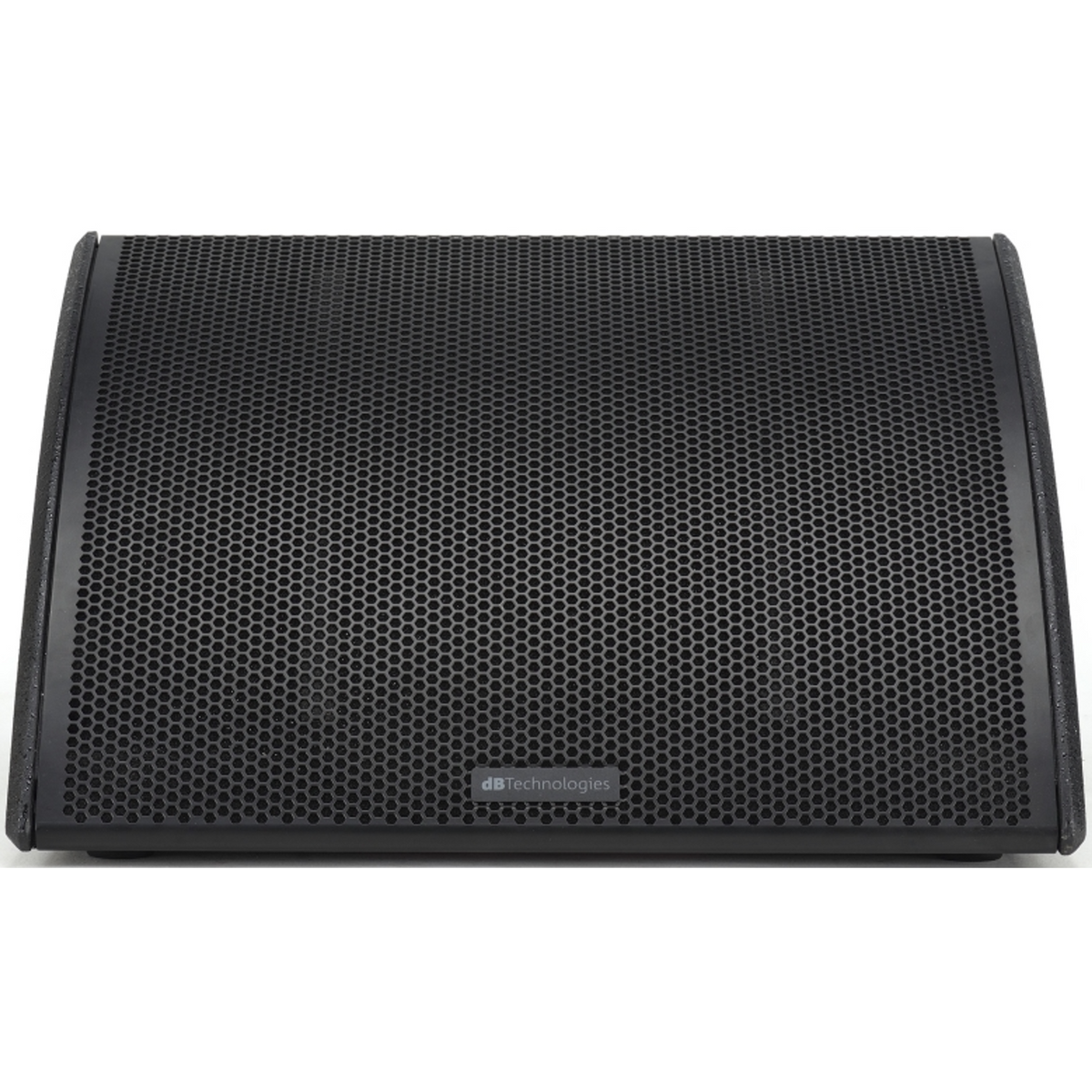

dBTechnologies FMX15 15-Inch Powered 2-Way Coaxial Stage Floor Monitor

dB Technologies Issues In A New Generation For Their Flagship FlexSys Wedge Monitors With The FMX-15 Coaxial Floor Monitor

FMX series encompasses a range of tailored monitoring solutions featuring coaxial design, precise dispersion pattern, last-generation sound processing with linear phase FIR Filters and maximum adaptability to the needs of every performer.

• Active 2-way stage monitor
• Coaxial configuration
• Linear phase FIR Filters
• Ultra-precise directivity
• Rotatable horn (90° x 60° or 60° x 90° dispersion)
• Front-rear grille design
• Integrated handle on bottom side

The FMX Series

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10, 12 and 15") equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers. The wedge's coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound. In facts, FMX's horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user. Moreover, 8 on-board presets optimize EQ for different needs making FMX a skillful yet easy-to-use tool for performers of every kind.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

SPECIFICATIONS

Technical

• Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical

• Frequency Response (- 10 dB): 46 Hz - 19 kHz
• Max SPL: 128 dB
• HF: 1" driver, 1.3" v.c.
• Directivity: 60° X 90°
• Horn: Rotatable
• LF: 15" driver, 2" v.c.

Amplifier

• Amp Class: Class D
• Peak Power: 1200 W

Processor

• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 Hz
• System Presets: 8 presets
• Limiter: Peak, RMS, Thermal
• Advanced DSP Function: FIR Filters
• Crossover Frequency: 1740 Hz
• Slope LF/HF: 24 dB/oct

Mechanics

• Housing: Plywood
• Housing Design: Multifunctional
• Handles: 1x integrated on bottom side
• Pole Mount: 36 mm
• Width: 19.68 inches / 500 mm
• Height: 13.38 inches / 340 mm
• Depth: 19.68 inches / 500 mm
• Weight: 37.2 lbs / 16.9 kg
