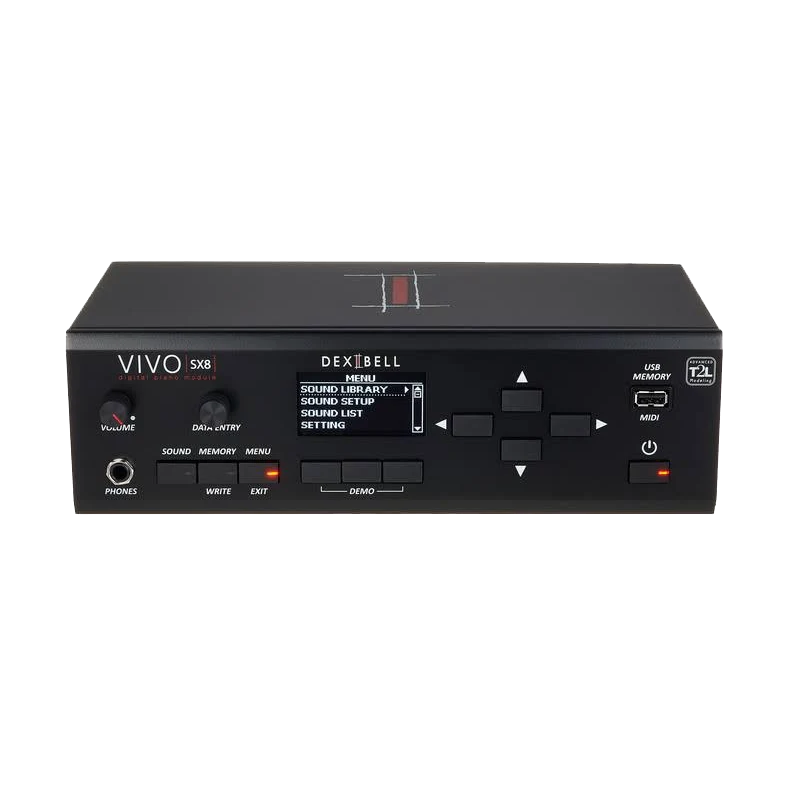

Dexibell Vivo SX8 Sound Module

Advanced Stage Piano Sound in a Compact Module – The Dexibell VIVO SX8 Sound Module

The Dexibell VIVO SX8 is a compact desktop and rackmount sound module powered by Dexibell's Advanced T2L sampling and modelling technology. Designed for stage, studio, and professional keyboard setups, it combines high-resolution 24-bit/48 kHz sound, extensive piano and organ libraries, unlimited polyphony with 320 oscillators, powerful DSP processing, Bluetooth connectivity, and USB audio/MIDI integration in a compact 1U-ready format.

• Advanced T2L sampling and modelling technology for expressive, detailed sound reproduction
• New quad-core processor with 3.2 GB of fully replaceable wave memory
• 178 onboard sounds plus more than 100 organ presets
• Includes sounds selected from Dexibell's PLATINUM library
• Unlimited polyphony with up to 320 oscillators
• 24-bit/48 kHz internal sound format with 32-bit floating-point DSP processing
• 9 independent DSP effects plus dedicated organ effects
• 24 reverb types
• Bluetooth audio streaming and MIDI BLE 4.2
• USB MIDI and digital audio input/output for direct computer integration
• Compatible with the Dexibell VIVO Editor and XMURE apps
• Desktop or standard 19-inch rackmount operation
• Rack ears included

Advanced T2L Sound Engine

The VIVO SX8 uses Dexibell's Advanced T2L technology, combining high-resolution sampling and modelling to reproduce the detail, dynamics, and natural response of acoustic and electric instruments. XXL wave samples can extend up to 15 seconds on lower piano notes, helping preserve the natural evolution and decay of the original instrument.

Extensive Piano, Organ and Instrument Library

The SX8 includes 178 sounds plus more than 100 organ presets, with additional user sounds available for download. Organ models include TW1, TW2, FARF, VX, PIPE, and downloadable User1 and User2 types. Nine virtual draw faders on the LCD provide hands-on-style control over tone-wheel organ settings.

Expandable 3.2 GB Wave Memory

The 3.2 GB internal wave memory is fully replaceable by the user and supports both Dexibell and SoundFont formats. Additional sounds can be loaded to customize the module for specific musical styles, performances, or production requirements.

Powerful Effects and Three-Part Performance

The VIVO SX8 provides three independent parts with extensive onboard processing. Nine independent DSP effects are available across the three parts, while organ-specific processing includes Rotary, Overdrive, and Vibrato/Chorus. Dexibell's seamless changes technology allows effects to transition smoothly when recalling sounds and setups.

Bluetooth and USB Integration

Bluetooth audio and MIDI provide convenient wireless integration with compatible devices. The VIVO Editor app allows supported programs and parameters to be controlled from an iOS device, while the XMURE app provides access to accompaniment styles. USB connectivity also allows MIDI and digital audio to be recorded and played simultaneously with a computer without requiring a separate audio interface.

Compact Desktop or Rackmount Design

At just 2 kg, the VIVO SX8 provides a powerful sound engine in a compact enclosure suitable for desktop operation or installation in a standard 19-inch rack. Rack ears are included for straightforward professional installation.

SPECIFICATIONS

Sound Engine

• Product Type: Sound Module
• Format: Desktop or 19-inch Rackmount
• Tone Generator: Advanced T2L Sampling and Modelling Technology
• Sampling: XXL wave size, up to 15 seconds on lower piano notes
• Sound Wave Format: 24-bit linear / 48 kHz
• Internal Processing and DSP: 32-bit floating point
• Maximum Polyphony: Unlimited with 320 oscillators
• Parts: 3

Sounds and Memory

• Sounds: 178 plus user-downloadable sounds
• Organ Presets: More than 100
• Internal Memory: 80
• User Memory: Unlimited, loadable from USB memory
• Wave Memory: 3.2 GB, fully replaceable by the user
• Supported User Sound Formats: Dexibell and SoundFont

Organ

• Organ Types: TW1, TW2, FARF, VX, PIPE, User1, User2
• Tone-Wheel Control: 9 virtual draw faders on LCD
• Organ Effects: Rotary, Overdrive, Vibrato/Chorus

Effects

• Reverb: 24 types
• DSP Effects: 9 independent effects across 17 types
• DSP Allocation: 3 x Part 1, 3 x Part 2, 3 x Part 3
• Effect Recall: Seamless Changes technology

Tuning and Temperament

• Master Tuning Range: 415.4 Hz - 466.1 Hz
• Tuning Resolution: 0.1 Hz
• Tuning Presets: 440 Hz and 442 Hz
• Temperaments: 9 types
• User Temperaments: 3

Audio Performance

• D/A Conversion: 24-bit linear / 48 kHz
• Dynamic Range / S/N: 106 dB

Connections

• Main Balanced Outputs: XLR Left / Right
• Main / Sub Unbalanced Outputs: 1/4-inch L/Mono and Right
• Headphone Output: 1 x 1/4-inch
• Foot 1: Progressive Damper Action Pedal with sympathetic resonance simulation
• Foot 2: Expression Pedal / Assignable Function
• MIDI: In and Thru
• USB To Host: MIDI and Digital Audio In/Out
• USB To Device: Memory and MIDI

Wireless

• Bluetooth Audio: Streaming Audio Input
• Bluetooth MIDI: MIDI BLE 4.2

Display and Control

• Display: 128 x 64-dot high-contrast graphic display
• Controller: Data Entry Encoder
• Touch Sensitivity: Adjustable global curve plus individual sound curves in memory

Power

• Maximum Power Consumption: 7 W
• Standby Power Consumption: Less than 0.2 W

Dimensions and Weight

• Width: 292 mm
• Depth: 173 mm
• Height: 87 mm
• Weight: 2 kg

Included Accessories

• Rack Ears
