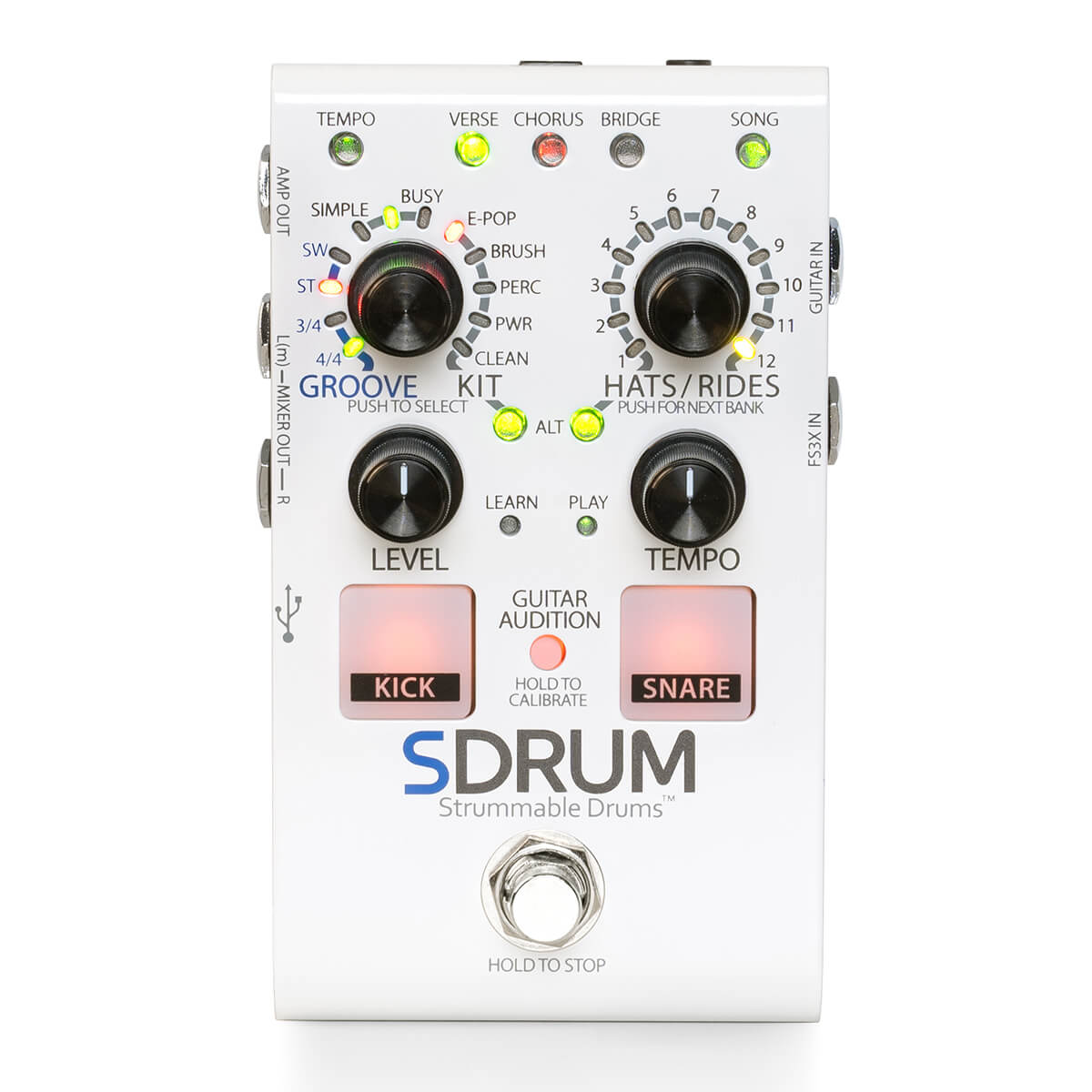

Digitech SDrum Strummable Drums Guitar Effects Pedal

Instant Rhythm Creation, Dynamic Grooves & Effortless Guitar-Driven Performance - The Digitech SDrum Strummable Drums Guitar Effects Pedal

SDRUM is the world’s first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching through lists in a frustrating attempt to find the beat you want.

The SDRUM stores up to 36 different songs. Beats are played from a choice of 5 different kits covering a wide range of genres. The pedal also supports three different parts (e.g. verse/chorus/bridge) for each song that can be switched on the fly for enhancing live performances and exploring song ideas.

SDRUM is the fastest way to go from a beat idea to a working drum track.

SPECIFICATIONS

Controls

• Groove/Kit, Hats/Rides, Level, Tempo

Backlit Buttons

• Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition

Pads

• Kick, Snare

Footswitches

• Main Footswitch

LEDs

• Learn, Play

Jacks

• Guitar In, FS3X In, Amp Out, Mixer Out L(M), Mixer Out R, JamSync Out

Other

• Mini USB Port

Inputs

• Guitar Input: Unbalanced, 1/4" TS | Impedance: 1 MΩ | Max Input: +8 dBu
• FS3X Input: 1/4" TRS (Compatible with DigiTech FS3X)

Outputs

• Amp Output: Unbalanced, 1/4" TS | Impedance: 1 kΩ | Frequency Response: 20 Hz–20 kHz
• Mixer L/R Outputs: Impedance Balanced, 1/4" TRS | Impedance: 1 kΩ | Max Output: +19 dBu | Frequency Response: 20 Hz–20 kHz
• JamSync Outputs: 1/8" TRS

Performance

• Bit Depth: 24-Bit
• Sample Rate: 44.1 kHz
• Signal-To-Noise Ratio: ≥108 dB, A-Weighted
• THD + Noise: 0.004% @ 1 kHz

Storage

• Maximum Bars: 4 Bars Per Song Part
• Maximum Parts: 3 Per Song
• Maximum Songs: 36

USB

• Type: Mini-B, USB 2.0

Physical

• Dimensions: 5.25" (L) x 3" (W) x 2.45" (H) | 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)
• Unit Weight: 1.14 lb | 0.52 kg
• Shipping Weight: 1.92 lb | 0.87 kg

Power

• Power Requirements: 9 VDC External Power Adapter
• Power Consumption: <5 W
• Current Draw: 500 mA
• Power Adapter Model: PS0913DC-04 (US, JA, EU, AU, UK)
• Power Adapter Output: 9 VDC, 1.3 A
