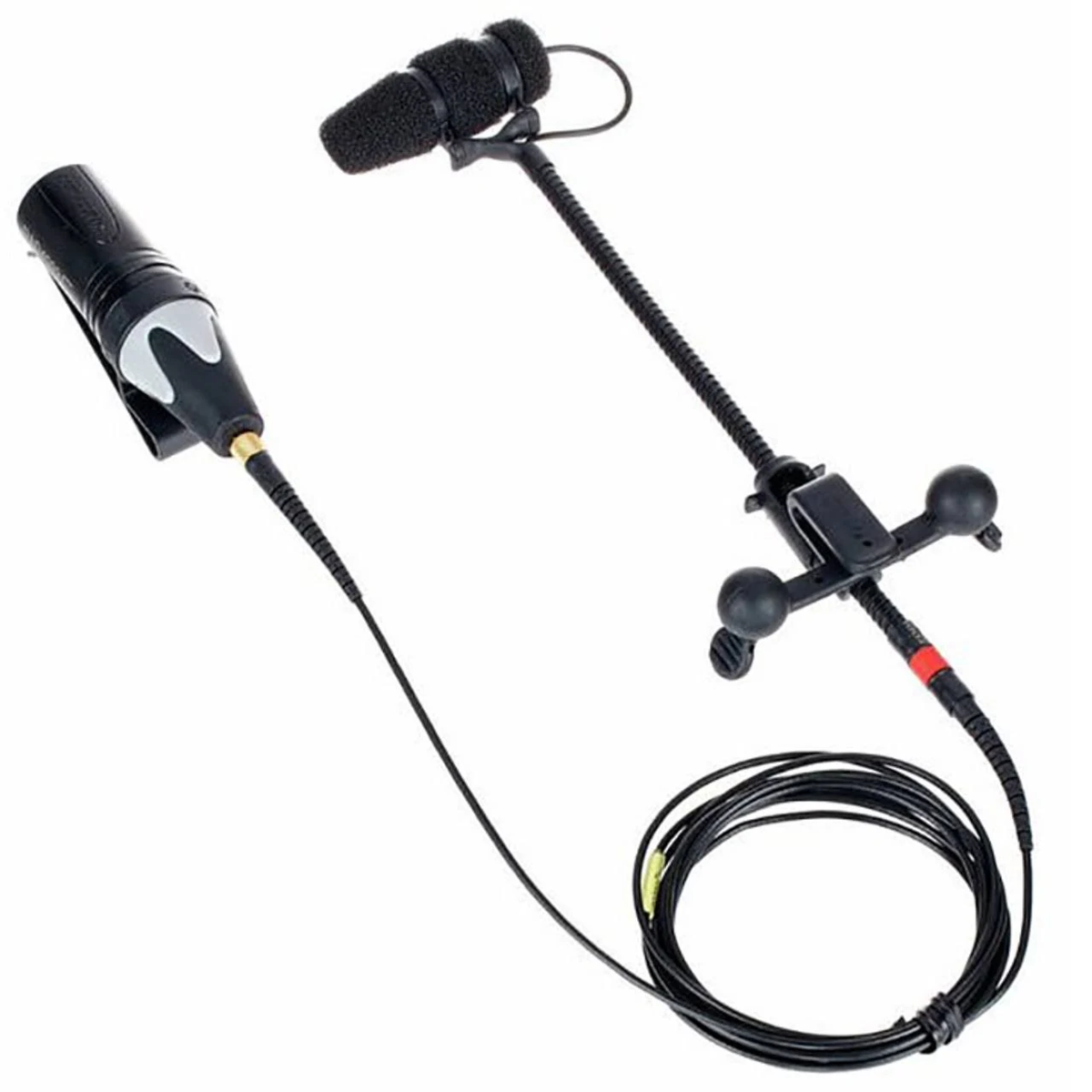

DPA 4099-DP-1-201-B CORE+ Supercardioid Instrument Microphone with Bass Clip

Capture Every Nuance with the DPA 4099-DP-1-201-B CORE+ Supercardioid Instrument Microphone with Bass Clip

The DPA 4099 CORE+ Instrument Microphone delivers world-class sound for acoustic instruments, combining DPA’s renowned clarity with innovative CORE+ technology. Designed for a wide range of applications—from delicate string instruments to loud brass and percussion—the 4099 captures every detail with precision, offering a natural, uncolored sound that musicians and engineers can trust. With enhanced durability, flexibility, and reliability, this updated model sets a new benchmark for live and studio performance.

• CORE+ technology delivers improved dynamic range and authentic sound reproduction
• Handles high SPL levels with exceptional clarity
• Wide dynamic range and superior gain-before-feedback
• Supercardioid pickup pattern ensures focused isolation
• Advanced, flexible clip system for easy instrument mounting
• Reliable MicroLock® connector compatible with various wireless systems
• IP58 certified for dust and moisture resistance
• Lightweight, discreet design with improved shock mount for reduced vibration noise

SPECIFICATIONS

• Directional Pattern: Supercardioid
• Principle of Operation: Pressure gradient
• Cartridge Type: Pre-polarized condenser
• Frequency Response: 20 Hz – 20 kHz
• Effective Frequency Range (±2 dB at 20 cm): 80 Hz – 17 kHz with 2 dB soft boost at 10–12 kHz
• Sensitivity (nominal, ±3 dB at 1 kHz): 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent Noise Level (A-weighted): Typ. 23 dB(A), max 26 dB(A)
• THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
• THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
• Dynamic Range: Typ. 118 dB
• Max SPL (THD 10%): 145 dB SPL peak
• Output Impedance: 30–40 Ω (MicroLock), 100 Ω (with DAD9099 or DAD9001)
• Power Supply: 5–10 V (wireless), P48 (phantom power) with DAD9099 or DAD9001
• Current Consumption: Typ. 1.5 mA (mic only), 3.5 mA (with XLR adapter)
• Connector: MicroLock
• Gooseneck Length: 140 mm (5.5 in)
• Microphone Diameter: 5.7 mm (0.22 in)
• Microphone Length: 50 mm (1.97 in)
• Cable Length: 1.8 m (5.9 ft)
• Weight (microphone): 18 g (0.63 oz)
• Operating Temperature: -40°C to 45°C (-40°F to 113°F)
• Relative Humidity: Up to 90%
• Color: Black
