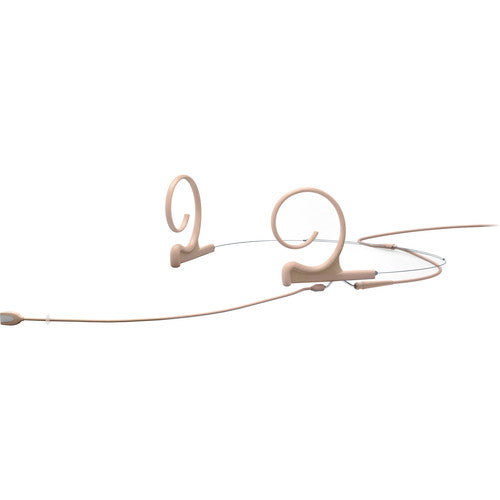

DPA Microphones d:fine Core 4188 Slim Directional Flex Headset Mic with 120mm Boom and MicroDot Connector - Beige

Speak with Confidence with the DPA Microphones d:fine Core 4188 Slim Directional Flex Headset Mic with 120mm Boom and MicroDot Connector - Beige

The 4188 Slim Earset Mic combines the sound of the 4088 directional capsule and a lightweight and flexible one-ear earset. It can be used when miking needs to be fast, easy, and where the person wearing the microphone won't feel the presence of it such as in conference, speech and active live performance applications.

• Earset (one ear) - Quickest and lightest option.
• Pristine audio quality
• Lightweight and flexible
• Easy mounting to the left or right
• Minimal visual impact
• Resistant to humidity
• Flexible adapter system fits most professional wireless systems

SPECIFICATIONS

• Directional Pattern: Cardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Dynamic range: Typ. 111 dB
• Color: Beige
• Boom Length: 120 mm
• Connector: MicroDot
• Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
• Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
• Max. SPL, THD 10%: 144 dB SPL peak
• Rated output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
• Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
• Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
• Electromagnetic compatibility (EMC): Fully compatible
• Microphone diameter: 5.4 mm (0.21 in)
• Cable length: 1.3 m (4.3 ft)
• Cable color: Black or beige
• Cable diameter: 1.6 mm (0.06 in)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%

Manufacturer: DPA Microphones
Model: 4188-DC-F-F00-LH
SKU: I510166-N-0-WHXA
EAN: 5713055014575
