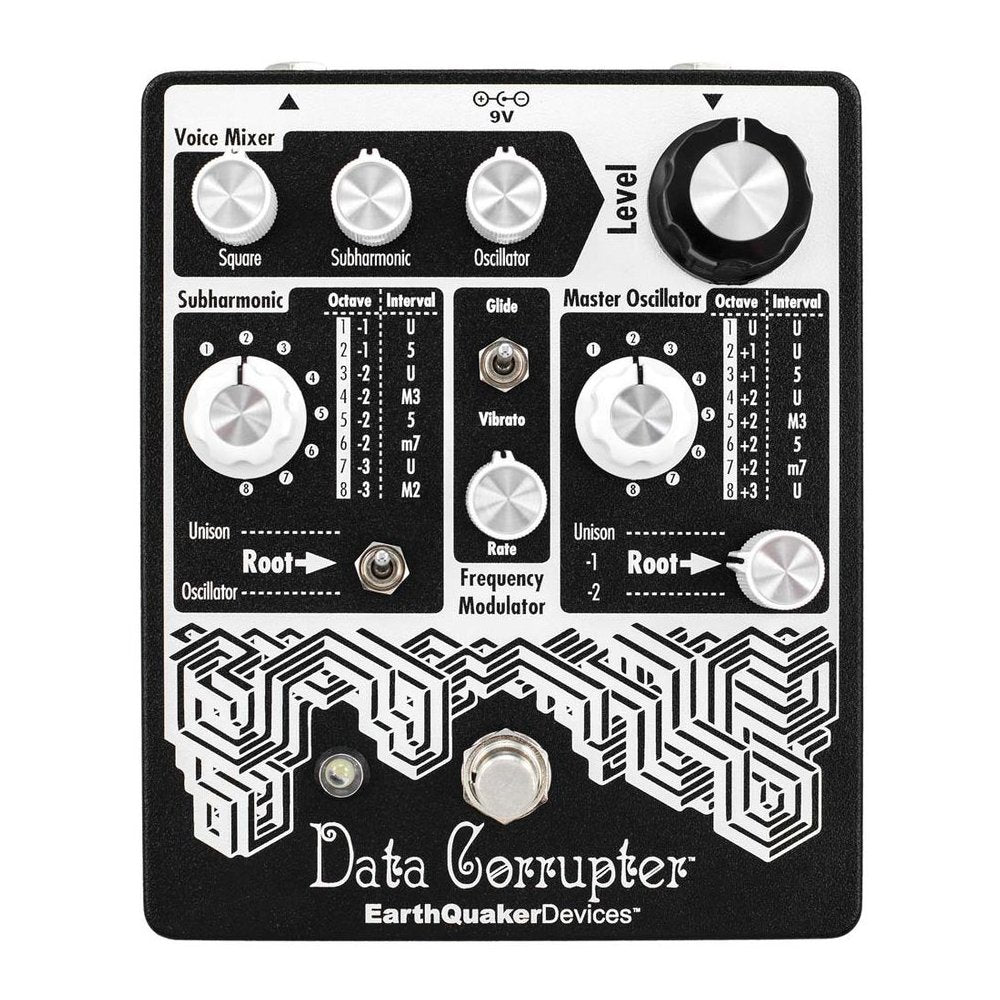

EarthQuaker Devices Data Corrupter Modulated Monophonic Harmonizing PLL Pedal

Out Of This World Sounds With The EarthQuaker Devices Data Corrupter Modulated Monophonic Harmonizing PLL Pedal

Okay Brainiac, its time to put down that graphing calculator and get to work decoding your brand new Data Corrupter!

The Data Corrupter is a monophonic analog harmonizing PLL with modulation. It takes your input signal and brutally amplifies it into a crushing square wave fuzz tone that is then multiplied, divided and modulated to create a wild, yet repeatable, three-voice guitar synthesizer.

The Master Oscillator is the central nervous system at the heart of the Data Corrupters cyberpunk hive mind. The three-position switch on the Master Oscillator control panel labeled Root feeds your input to the Data Corrupters signal harvester in its original octave (Unison), one octave down (-1) or two octaves down (-2). Use the Master Oscillators Root switch to fine tune the Data Corrupters tracking response for maximum compatibility with your preferred instrument and frequency register. Once youve chosen your input octave, the Data Corrupter will perform its calculations and spit out a synthesized frequency, the octave and/or interval of which may be selected via the Master Oscillators eight-position rotary switch. The Voice Mixers Oscillator control adjusts the Master Oscillator blend.

The Frequency Modulator applies pitch-bend modulation to the Master Oscillator. In Glide mode, you'll hear a smooth portamento as each note slides into the next. In Vibrato mode the pitch modulates up and down for a retro sci-fi laser effect.

The Subharmonic assimilates the input signal into one of eight lower octave programs between one and three octaves below the original. For a more stable lower octave, set the Subharmonics Root switch to the Unison position, which divides the Square Wave input signal, and removes the Frequency Modulator from the Subharmonic signal path. To unleash the cracked machine lurking within the Data Corrupter mainframe, set the Subharmonic Root switch to Oscillator and try not to look away as the sonic malware you just installed mangles your input signal into the sum and difference of both the Master Oscillator and Subharmonic with the Frequency Modulator applied to the upper and lower octaves. If you think you're brave enough, set the Subharmonic Root switch to Oscillator and try experimenting with different Master Oscillator and Subharmonic programs to wind up the doomsday clock and inch ever closer to the Singularity. Adjust the Voice Mixers Subharmonic control to set the lower octave volume.

Finally, (or is it?) the Square control located top-left on the Voice Mixer blends in a fuzzed-out square-wave take of your input in its original octave. That's it. These aren't the droids we're looking for. Move along.

Each and every Data Corrupter is built one-at-a-time by a team of ensigns aboard the Starship Enterprise locked in orbit around the Borg Cube of Akron, Ohio, USA. Make it so. Engage.

SPECIFICATIONS

• Dimensions: 5.65 x 4.75 x 2.25 Inches (144 x 121 x 57 mm) with Knobs
• Current Draw: 26 mA
• Input Impedance: 1 MΩ
• Output Impedance: < 1 kΩ
• Flexi-Switch® Technology: Relay-Based, True Bypass Switching with Momentary and Latching Operation
• Latching Operation: Tap the Footswitch Once to Activate the Effect and Again to Bypass
• Momentary Operation: Hold the Footswitch to Use the Effect; Releasing the Switch Bypasses the Effect
• Power Requirement: 9V DC Power Supply with 2.1 mm Negative Center Barrel
• Power Note: Relay-Based Switching Requires Power to Pass Signal
• Recommended Power Supply: Pedal-Specific, Transformer-Isolated Wall-Wart or Multiple Isolated-Output Power Supply
• Power Warning: Do Not Run at Higher Voltages
