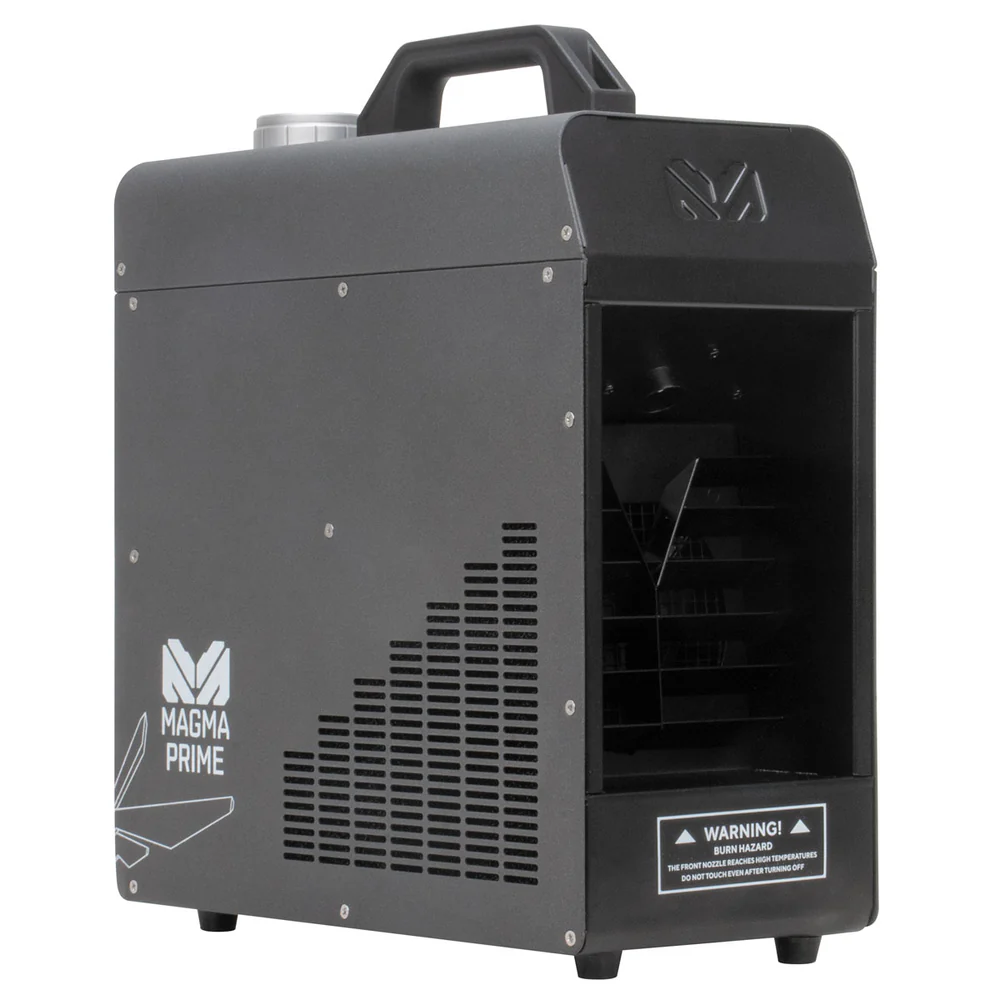

Elation MSP001 Magma Prime 700W Water-Based Fazer

Produce Consistent Atmospheric Effects with the Elation Magma Prime 700W Water-Based Fazer

The Elation Magma Prime 700W water-based fazer delivers advanced atmospheric performance with a high-volume dry faze effect and low fluid consumption. Featuring innovative HPA (high pressure air) pump technology, it minimizes the risk of heater clogging while maintaining consistent output. The unit includes an onboard LCD touch screen control panel, DMX-512 and RDM support, a durable aluminum housing, and optional wired or wireless remote control options for flexible operation.

• 700W water-based fazer
• 4,000 CFM (113 m³/min) output
• Advanced HPA high pressure air pump technology
• Compact, lightweight, and robust design
• Onboard LCD touch control panel
• Optional MAGFLY wireless DMX transceiver
• Optional MAGRF wireless and wired remotes
• Durable aluminum housing

SPECIFICATIONS

Performance

• Rated Power: 700W
• Maximum Output: 4,000 CFM (113 m³/min)
• Ready Time: 6 minutes (approximate)
• Fluid Capacity: 0.345 gallons (1.3 liters)
• Fluid Consumption: 0.115 oz/min (3.4 ml/min)

Compatible Fluid

• Atmosity Extreme Filtered Fog Fluid (AEF-4L)

Construction

• Thermally protected heat exchanger
• Advanced HPA high pressure air pump technology
• Sealed fluid reservoir
• External visual fluid level detection
• Compact lightweight mobile design

Control

• 3 DMX channel modes (1 / 3 / 5)
• Onboard LCD touch control panel
• DMX-512 and RDM protocol support
• Optional MAGFLY wireless DMX transceiver
• Optional MAGRF wireless and wired remotes
• MagRemote VIDI

Connections

• Locking 5-pin XLR connector In/Out
• IP65 locking power connector In
• Wired digital communication network

Size and Weight

• Length: 13.3 inches (338 mm)
• Width: 6.30 inches (160 mm)
• Height: 15.70 inches (400 mm)
• Weight: 22.48 lbs (10.2 kg)

Electrical

• AC120V 60Hz (US Version)
• AC230V 50Hz (EU Version)
• 9A @ 120VAC (NFB)
• 5A @ 230VAC – 240VAC
• Maximum Power Consumption: 720W

Thermal

• Maximum Ambient Temperature (Ta max): 104°F (40°C)
• Exterior Surface Temperature (steady state): 122°F (50°C)

Approvals and Ratings

• CE
• FCC
• IP20
