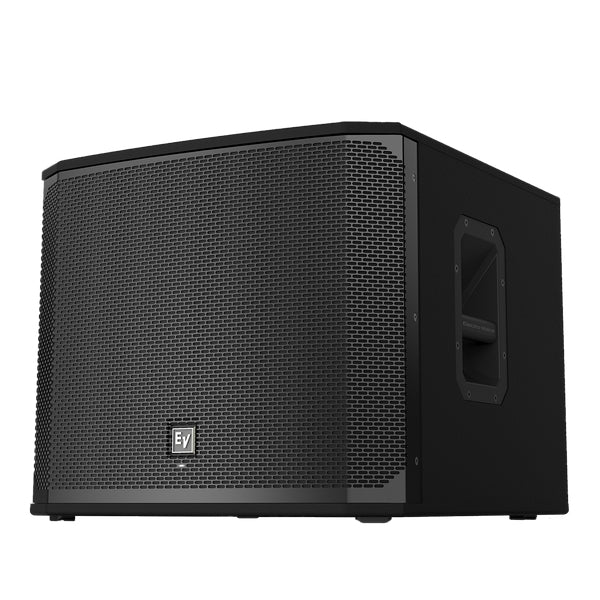

Electro-Voice EKX-15S 15" Passive Subwoofer

Get Exceptional Sound And Reliability With The Electro-Voice EKX-15S 15" Passive Subwoofer

The Electro Voice EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

The Electro Voice EKX 15S passive subwoofer will handles 1600 W (peak), 133 dB peak SPL on the Electro Voice EKX-15S utilizing high sensitivity transducers designed and engineered by EV.

The Electro Voice EKX sub is lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Large slot ports are designed for low distortion and excellent bass extension.

• Metal grille reinforcement bar (two bars on the EKX-18S).
• M20 threaded pole mount plate.
• Frequency Response (-10 dB) 40 Hz - 300 Hz Half Space Measurement
• Nominal Impedance 8 Ω
• Power Handling (Continuous / Peak) 400 W/1600 W

SPECIFICATIONS

• Axial Sensitivity (SPL, 1 W @ 1 m): 95dB
• Connector Type: Dual NL4
• Depth: 21.7" (551mm)
• Enclosure Material: 15 mm, plywood with EVCoat
• Family: EKX
• Frequency Response (-10 dB): 40 Hz - 300Hz (Half Space Measurement)
• Frequency Response (-3 dB): 60 Hz - 100Hz (Half Space Measurement)
• Grille: 18 AWG steel with powdercoat
• Height: 17.9" (455mm)
• LF Transducer: EVS-15C 381 mm (15 in)
• Max. SPL/1m (calc): 133dB
• Maximum SPL: 133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
• Minimum Impedance: 7.5Ω
• Nominal Impedance: 8Ω
• Passive Power Handling: 1600W peak
• Power Handling (Continuous / Peak): 400 W/1600W
• Power Rating: 1600W
• Powered or Passive: Passive
• Recommended High-Pass Frequency: 35Hz
• Shipping Weight: 69lbs (31.3kg)
• Speaker Type: Subwoofer
• Weight Net: 54.9lbs (24.9kg)
• Width: 20.9" (530mm)
• Woofer Size: 15inch
