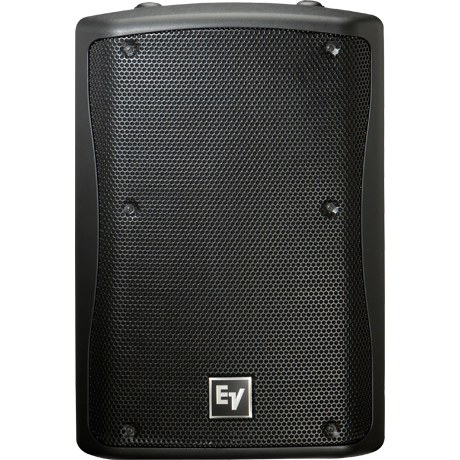

Electro-Voice ZX3-60B 12-Inch Two-Way Passive Hybrid Loudspeaker - Black

Unparalleled Versatility in a Lightweight Package - The Electro-Voice ZX3-60B 12-Inch Two-Way Passive Hybrid Loudspeaker - Black

The Electro-Voice ZX3 sets a new benchmark in lightweight 12" two-way loudspeaker performance, catering to a broad spectrum of portable and fixed installations. With the introduction of the DVX3121 12" woofer and the ND2 neodymium compression driver, the ZX3 embodies Electro-Voice's continuous innovation, positioning itself prominently within the ZX series, bridging the gap between the ZX1 and ZX5 models./p>

The ZX3 distinguishes itself through unparalleled versatility in addressing various audio needs. Equipped with the industry's top-performing drivers and supported by an extensive array of optional accessories—such as the CB-5 array kit, MB3 wall/ceiling mount bracket, HA-3 handle adapter for the VSA-1 strong arm mount, and TCA-1 truss clamp adapter—the ZX3 offers unmatched flexibility. This allows for its seamless integration into diverse setups, from array configurations and truss-mounted installations to monitor applications and main system setups with subwoofers.

Encased in a durable and stylish injection-molded enclosure, the ZX3 shares functional similarities with its larger counterpart, the ZX5, including options for 90° x 50° or 60° x 60° horn dispersion patterns, monitor angles of 45° or 55°, and configurations for passive or bi-amp operation. Furthermore, it boasts seven M8 rigging points for secure mounting. Available in both weatherized versions and in black or white finishes, the ZX3 also offers the HDC-3 heavy-duty stackable cover for additional protection, ensuring it meets the aesthetic and environmental needs of any venue or event.The Electro-Voice ZX3 sets a new benchmark in lightweight 12" two-way loudspeaker performance, catering to a broad spectrum of portable and fixed installations. With the introduction of the DVX3121 12" woofer and the ND2 neodymium compression driver, the ZX3 embodies Electro-Voice's continuous innovation, positioning itself prominently within the ZX series, bridging the gap between the ZX1 and ZX5 models.

The ZX3 distinguishes itself through unparalleled versatility in addressing various audio needs. Equipped with the industry's top-performing drivers and supported by an extensive array of optional accessories—such as the CB-5 array kit, MB3 wall/ceiling mount bracket, HA-3 handle adapter for the VSA-1 strong arm mount, and TCA-1 truss clamp adapter—the ZX3 offers unmatched flexibility. This allows for its seamless integration into diverse setups, from array configurations and truss-mounted installations to monitor applications and main system setups with subwoofers.

Encased in a durable and stylish injection-molded enclosure, the ZX3 shares functional similarities with its larger counterpart, the ZX5, including options for 90° x 50° or 60° x 60° horn dispersion patterns, monitor angles of 45° or 55°, and configurations for passive or bi-amp operation. Furthermore, it boasts seven M8 rigging points for secure mounting. Available in both weatherized versions and in black or white finishes, the ZX3 also offers the HDC-3 heavy-duty stackable cover for additional protection, ensuring it meets the aesthetic and environmental needs of any venue or event.

• Versatile performance for mains, fills, or monitors
• DVX3121A woofer with forced-air cooling
• 2-inch ND2 titanium/neodymium HF driver
• Passive crossover
• Choice of 90º x 50º or 60º x 60º coverage horn
• High sensitivity, 131 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• High-impact polypropylene enclosure
• Compact monitor-friendly wedge shape
• Up to four anchor-plate attachments
• M8 mounting inserts (7)
• Integrated handle
• Available in black and white


SPECIFICATIONS

• Minimum Impedance: 6.2Ω
• HF Transducer: 2-inch ND2
• Speaker Type: Full-Range
• Woofer Size: 12inch
• Powered or Passive: Passive
• Frequency Response (-3 dB): 58 - 15000Hz
• Max. SPL/1m (calc): 131dB
• Coverage (Nominal -6 dB) H: 90/60°
• LF Transducer: 12-inch DVX3121A
• Coverage (Nominal -6 dB) V: 50/60°
• System Power Handling (Continuous/Program/Peak): 600//2400Watts
• Power Rating: 2400W
• LF Power Handling: 500Watts
• HF Power Handling: 40Watts
• Crossover Frequency: 2000Hz
• Enclosure Material: High Impact Polystyrene Composite
• Grille: Polyester Powder Coated, 18GA Galvanized Steel
• Sensitivity 1 W/1 m: 97dB
• Available Color: Black or white
• Height: 24.13" (613mm)
• Width: 15.63" (397mm)
• Recommended High-Pass Frequency: 50Hz
• Depth: 14.25" (362mm)
• Internal Crossover: Yes
• Weight Net: 43.65lbs (19.8kg)
• Family: ZxZxA
• Nominal Impedance: 8Ω
• Input Connections: 2 conductor SJO cable and gland nut
