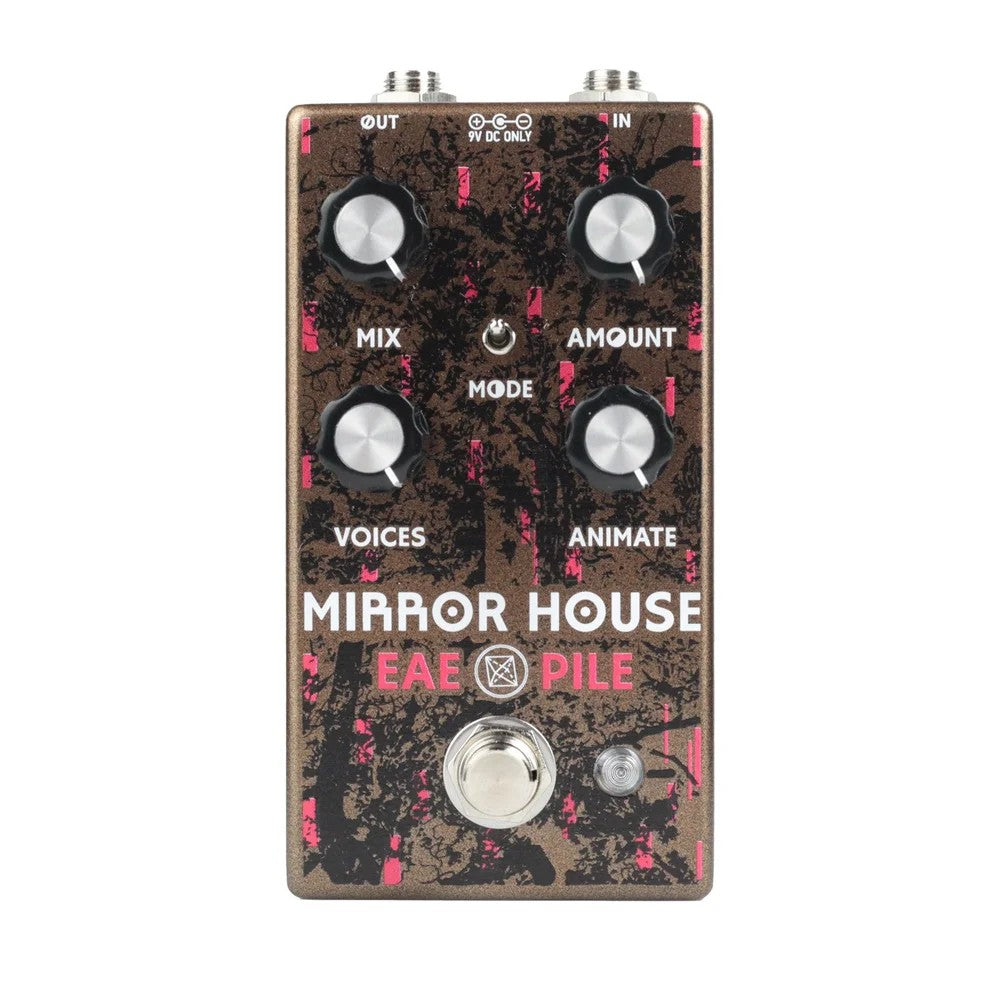

Electronic Audio Experiments Mirror House V2 Pitch Shift Guitar Effects Pedal

Explore Otherworldly Pitch-Shifting Texture - The Electronic Audio Experiments Mirror House V2 Pitch Shift Guitar Effects Pedal

Mirror House creates two pitch-shifted copies of an incoming signal which veer off into equal and opposite directions. This diametric approach to pitch shifting is capable of weird detuning, disorienting microtonal clusters, chords of parallel harmony, or ugly, strange dissonance. (It can also be a chorus.)

The two pitch voices can be shifted both statically and dynamically, with a selection of ranges and behaviors. Envelope controlled pitch-shifting creates dynamic vibrato, glissando, and divebomb effects as the voices are pulled apart and come back together. In Flutter mode, Animate controls a random LFO, for a tastefully off-kilter chorus and vibrato. Detune and Flutter modes each have a static range of a semitone, while Shift mode is quantized up to an octave in both directions. Depending on your harmonic tendencies, this particular array of features is perhaps an invitation, perhaps a provocation.

This pedal was originally developed in collaboration with our friends in the band Pile, and as of Version 2 is now available as a steady offering in our product catalog. This new version features the new Flutter mode, improved envelope sensitivity, and a reduced noise floor compared to Version 1.

SPECIFICATIONS

General

• Size/Weight: 121mm x 66mm x 40mm, 0.4kg
• Bypass: Relay Switching with True Bypass
• Input Impedance @ 1 kHz: 500kΩ
• Output Impedance @ 1 kHz: <1kΩ
• Power: 9V DC, 2.1 mm Center Negative Barrel
• Current Draw: 95mA

Controls

• Mix: Relative Level Between the Dry and Effected Signals
• Amount: Static Pitch Shifting Amount
• Animate: Additive Modulation Applied to the Amount Control
• Voices: Mix Between Higher and Lower Pitch Voices
• Mode Toggle: Shift / Flutter / Detune

Modes

• Shift: Quantized Semitone Pitch Shifting up to One Octave
• Flutter: Random LFO-Based Pitch Modulation for Chorus and Vibrato Sounds
• Detune: Voice Shifting from Unison up to a Semitone

Changelog

• V2 (2025)
• Updated Bypass to Use a Relay
• Improved Envelope Tracking for Shift and Detune Modes
• Reduced Noise in DSP Signal Path
• Artwork Updated
• Added Flutter Mode

Manufacturer: Electronic Audio Experiments (EAE)
Model: MIRROR HOUSE V2
SKU: I870148-N-1-WHXX
