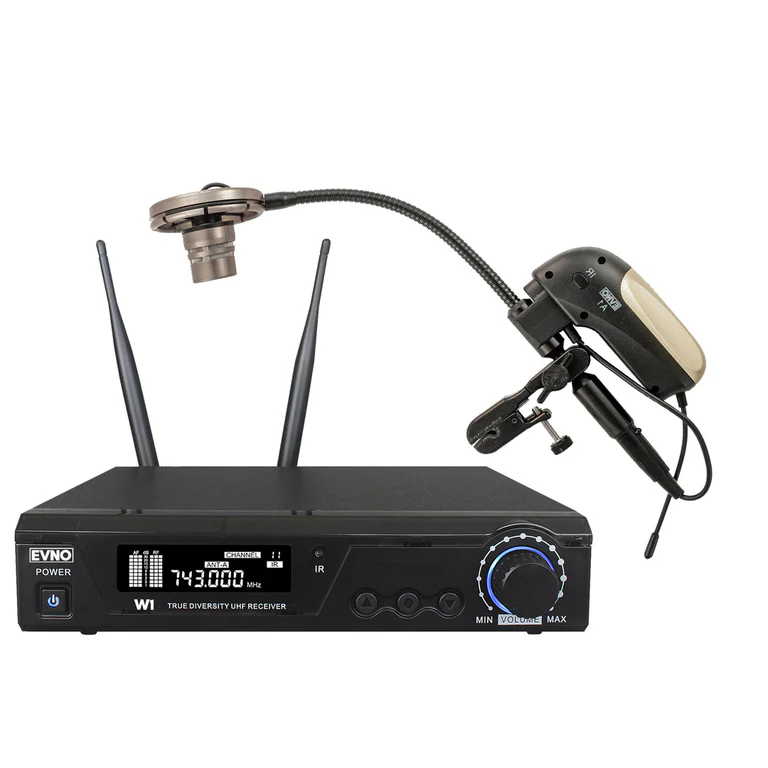

Evno SX-W1 Wireless Saxophone Microphone System

Flagship-Class Sound - The Evno SX-W1 Wireless Saxophone Microphone System

The Evno SX-W1 is the flagship wireless system for alto, tenor, and baritone saxophones in the Evno lineup, designed for superior performance and reliability. It features the W1 True Diversity wireless system, providing the greatest distance and stability for wireless audio transmission. The package contains everything needed in a complete wireless package. The SX-W1 package includes the SX microphone with the Evno W1 True Diversity wireless system.

•  True Diversity Antenna System: Utilizes two antennas and two receivers simultaneously, combining the audio and switching between antennas based on signal strength for enhanced stability and range.
•  Range: Offers a maximum distance of approximately 150 meters, making it suitable for large venues and stages.
• Metal Chassis: Durable and robust design with a 1-XLR and 1-1/4 inch output.
•  Rack-Mountable: 1/2 rack-mountable design with a rack-kit and extension cables for standard rack unit placement. Antennas can be positioned on the front of the rack case for easy access and removal.

SPECIFICATIONS

Receiver:

• Frequency Range: 902-928 MHz
• Receive Sensitivity: -110 dBm (sinad ≥30 dB)
• Signal/Noise Ratio: >105 dB
• Power Supply: DC 12V / 500 mA
• Audio Output: 1 - 1/4 inch
• Antenna: Detachable, Dual

Transmitter:

• Frequency Range: 902-928 MHz
• RF Power: 10 mW
• Microphone Type: Condenser
• Directivity: Cardioid
• Deviation: ±48 KHz
• Antenna: 1/4 wave length wire type
• Battery Voltage: 1.5V (1x1.5V AA Battery)
• Power Consumption: 14 hours, battery-dependent

System Specification:

• Comprehensive Performance
• Frequency Range: 902-928MHz, 823-832MHz
• Modulation Mode: FM
• Dynamic Range: >100dB
• Frequency Response: 60Hz-17KHz±3dB
• Total Harmonic Distortion: <0.5% at 1KHz
• Signal/Noise Ratio: ≥108dB
• Distance: Up to 250 feet / 80 m
