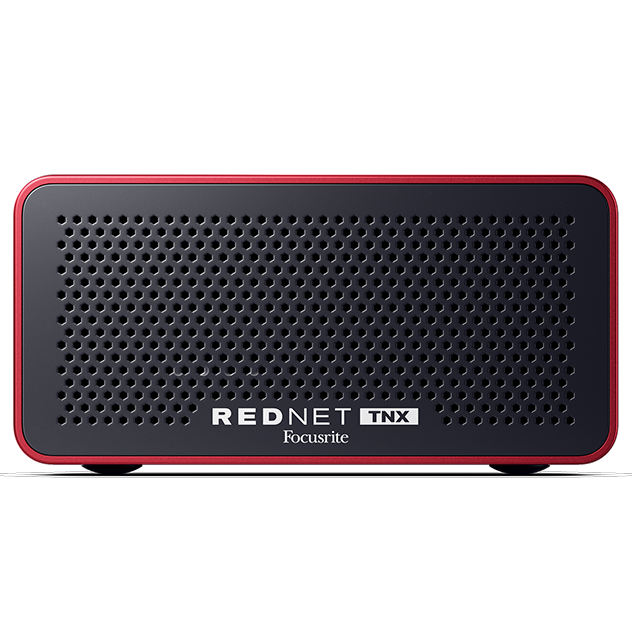

Focusrite RedNet TNX High-Channel Dante and Thunderbold Interface

For a Professional Workflows - The Focusrite RedNet TNX High-Channel Dante and Thunderbolt Interface

RedNet TNX is a portable Dante interface that delivers high channel counts, ultra-low latency, and powerful audio workflows via a single Thunderbolt connection. Designed for recording, post-production, and broadcast, it provides seamless integration into high-end audio environments with unmatched flexibility.

• Low-latency, flexible high-channel-count Thunderbolt™ and Dante interface
• 128x128 channels at 24-bit/192 kHz out of the box
• Upgradable to 256x256 channels at 24-bit/96 kHz with Dante Ready™
• Dual Thunderbolt™ 3 ports (15W power each) for daisy-chaining devices
• Dual Ethernet RJ-45 connections with switched or redundant mode
• Supports AES67 and SMPTE ST 2110 (DDM required)
• Integrated network interface with single-cable network control
• CoreAudio (Mac), ASIO and WDM (Windows) compatibility
• Compact and portable design with rack shelf mounting capability
• Backed by Focusrite's three-year warranty and 24/7/365 technical support
• Includes Thunderbolt™ cable, Ethernet cable, external power supply

SPECIFICATIONS

• Model: RedNet TNX
• Simultaneous I/O: 128x128 (all sample rates), 256x256 (up to 96 kHz with Dante Ready)
• Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (24-bit)
• Connectivity: 2x RJ-45 Dante ports (Cat 5e or higher), 2x Thunderbolt 3 ports
• Driver Support: ASIO, WDM (Windows); CoreAudio (Mac)
• Power: External DC power supply
• Mounting: M5 x 12mm screw threads for shelf or cradle
• Dimensions (Unit): 2.82" H x 5.67" W x 8.36" D
• Weight (Unit): 3.29 lbs (4.78 lbs with accessories)
• Boxed Dimensions: 10.75" H x 14.72" W x 5" D
• Boxed Weight: 6.55 lbs
• Heat Performance: Max ambient temp 50°C / 122°F

INCLUDED ACCESSORIES

• Focusrite RedNet TNX unit
• 6.5 ft Thunderbolt™ 3 cable
• 6.5 ft Cat6A Ethernet cable
• External power supply and cable
• Focusrite Pro Important Information Guide
• Safety Information Sheet
