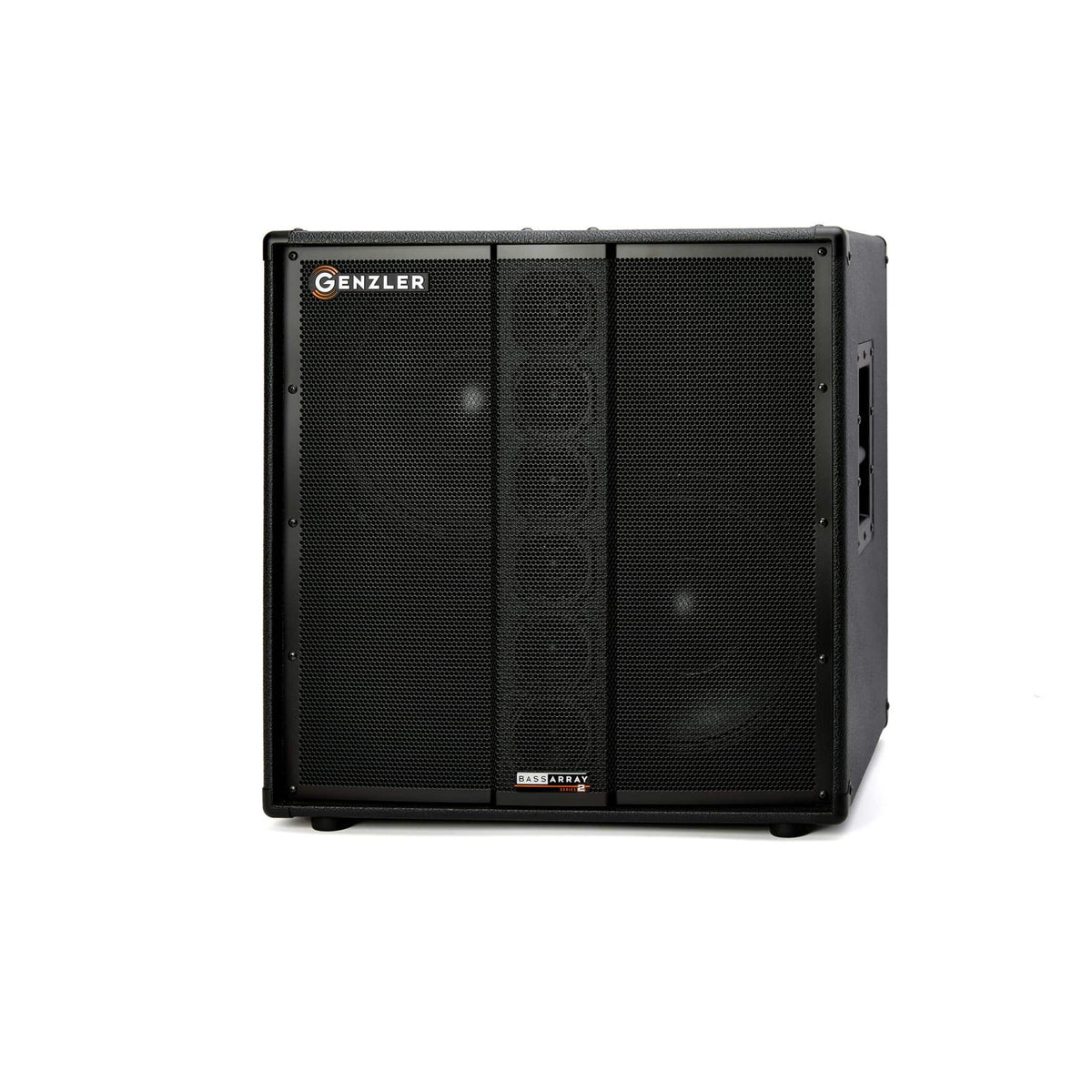

Genzler BA2-212-3 Bass Array - Series 2

Experience Broad Dispersion and Deep Lows with the Genzler BA2-212-3 Bass Array - Series 2 Bass Cabinet

Genzler Amplification announces the addition of a new Series 2, 2 x 12-inch model to their revolutionary Bass Array cabinet line-up. The BA2-212-3 is loaded with 8 separate neodymium cone drivers and brings a unique and dynamic signature response to the BA line. Overall tonal characteristics include big, fast, tight lows, transitioning into tame mids with smooth high/mid presence. Its tonal signature is a wide and deep foundation, warm and evenly weighted mids through to its top end clarity.

• All premium Italian-designed neodymium loudspeakers
• 800 watt power handling
• Broader dispersion, with big, fast tight lows and mid-range definition
• Evenly weighted mids, with smooth top-end clarity and presence
• Balanced response across all 8 drivers

Designed into the same cabinet size as the BA2-410-3 cabinet, this innovative design blends the punch and quickness of two premium offset neodymium 12-inch drivers, in a vented bass reflex enclosure, and the performance and pattern control of a 6 x 3-inch neodymium paper cone driver line array element. The placement of the line array in front, and between the two offset 12-inch woofers further provides an extremely broad projection pattern, immediate quickness and clarity that is not possible with many stacked 2 x 12-inch designs.

Also due to line array principles the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern. This offers the most even projection possible around the perimeter of the stage and audience.

The benefits of this design are exponential for the player:

Delivering full, deep, low frequency response from the high efficiency 2 x 12-inch woofers — doing what they do best, providing excellent support of the fundamental for the lower strings of the instrument.

Smooth, seamless, clear, and articulate mid-range to high frequency transition across the audio spectrum.

Broad horizontal dispersion far exceeding conventional woofer/tweeter combinations.

Providing a much more open, smoother midrange and high frequency response because of the ideal natural characteristics of the mid-high frequency array when compared to a conventional tweeter that cannot reproduce the crucial midrange frequencies without pattern control or un-natural distortion.

The BA2-212-3 is an extremely versatile, lightweight (47 lbs) 800 watt, 4-ohm cabinet, and is ideal for those players that need the highest powered, most dynamic performance possible, in a single, compact, cabinet design. And for the ultimate big stage rig, it is an ideal choice in combination with the BA2-115-3SLT cabinet.

SPECIFICATIONS

• Power Handling: 800 watts
• Frequency Response: 37 – 18K Hz
• Sensitivity 1W/1M: 100 dB
• Nominal Impedance: 4 ohm
• Crossover Frequency: 800 Hz
• Weight: 47 lbs
• Dimensions – HxWxD: 23.75 x 23 x 18 inches

Shipping

• Carton Dimensions: 27 x 27 x 22 inches
• Shipping Weight: 57 lbs

Input Panel/Crossover Network

• Custom designed 6 dB/octave slopes in balance with the acoustical controls of each enclosure
• Two Speakon NL-4 connectors and two 1/4-inch sealed jacks to reduce rear cabinet air loss and noise

Speaker Components

• Two premium neodymium 12-inch loudspeakers utilizing a fiberglass former voice coil with a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity
• Six premium neodymium 3-inch full-range, mid/high cone drivers utilizing a fiberglass former voice coil, a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity; these drivers are loaded into a sealed line array stack

Cabinet

• Cabinet built with Lite-ply and Baltic Birch plywood
• Heavy-duty textured black vinyl
• Black metal corners and heavy-duty metal recessed handles
• Custom, curved grille with a unique center pleat to protect the array column
• Large rubber feet
