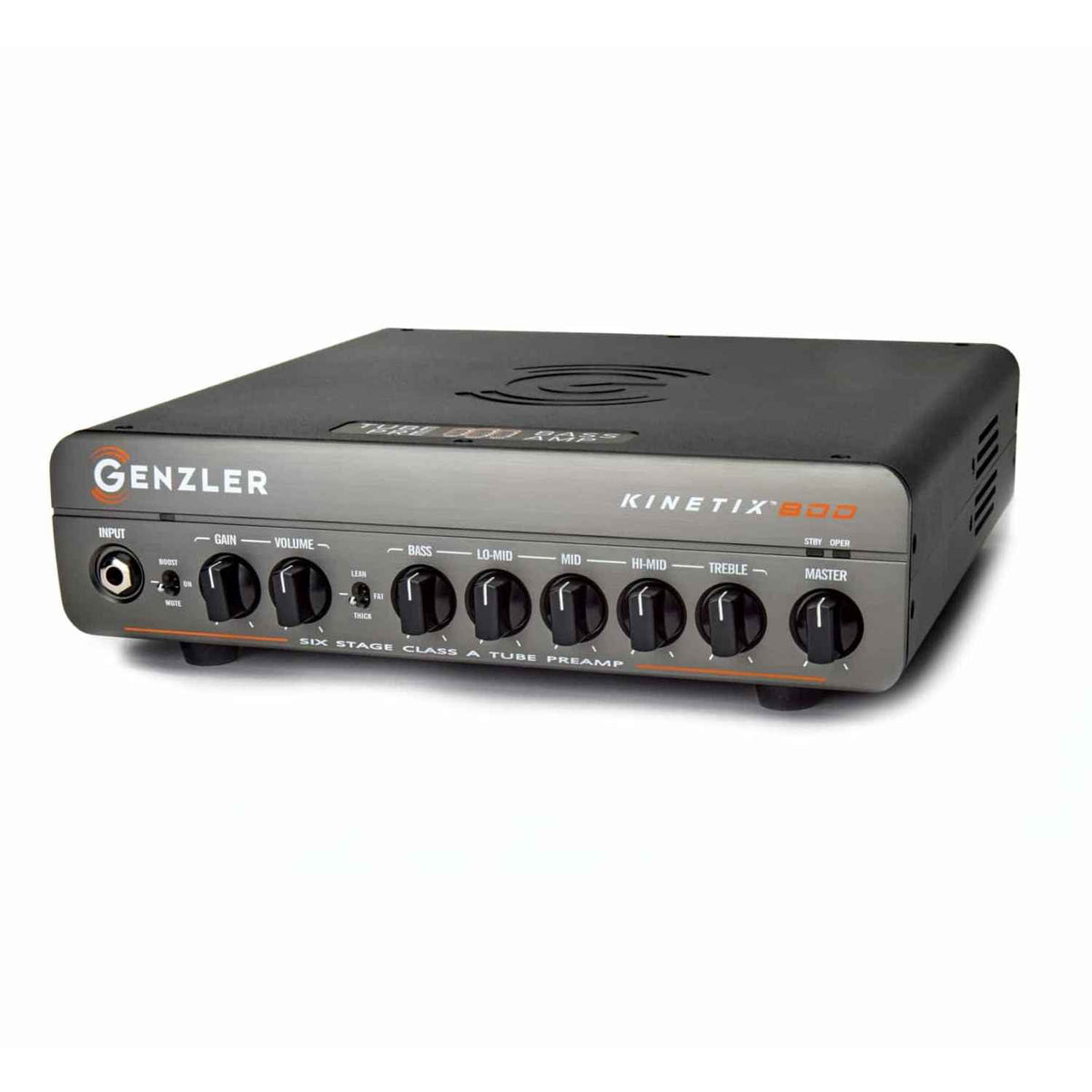

Genzler Kinetix 800 400-Watt 8-Ohms Bass Amplifier Head

An Extension of Your Tone...in Musical Motion - The Genzler Kinetix 800 Bass Amplifier Head

Our circuitry and mechanical designs within the KINETIX™ 800 deliver an all-new platform in tube preamp, compact bass amplification design – exactly what players have come to expect from the GENZLER® design team. From natural, pristine, quick responsive reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”, the KINETIX™ 800 provides the tonal pallet needed to cover all of the bassist’s amplifier requirements. It is a simple to use, very musical amplifier, and is what a high-voltage tube preamp brings to the player’s dynamic interaction with their instrument through a world class bass amplifier.

The KINETIX™ 800 preamp offers 3 – 12AX7 preamp tubes running at a full 300 volts, offering the character, touch sensitivity and harmonic content of classic tube, bass amplification. Other features include a ¼” unbalanced instrument INPUT jack; 3-position toggle switch for MUTE, ON and BOOST functions; preamp GAIN and VOLUME controls; 3-position tonal foundation switch for LEAN, FAT and THICK settings; 5-band, fixed equalization filters and a MASTER volume control. The power amp is a robust, lightweight, Class D design and is supported by a state-of-the-art, high frequency, switch-mode power supply (SMPS), which does away with the weight of a traditional power transformer. The KINETIX™ 800 utilizes a proprietary high-voltage power supply for the all tube preamp. This uses a rear panel Line Voltage Selector switch for proper setting of the correct line voltage range for the specific country of use. This allows the world traveling musician to always have the correct tube voltage for optimum performance.

SPECIFICATIONS

Preamp

• Six Stage Class A Tube Preamp
• 3 x 12AX7 Tubes Running at 300V Plate Voltage
• 1 MΩ Input Impedance
• Mute / On / Boost Switch with +8dB Boost
• Gain & Volume Controls
• Lean / Fat / Thick Voicing Switch
• Tube-Driven 5-Band EQ
• Bass: ±13dB @ 70Hz
• Low Mid: ±10dB @ 250Hz
• Mid: +6/-11dB @ 575Hz
• High Mid: ±11dB @ 2.3kHz
• Treble: ±16dB @ 5kHz

Power Amp

• KINETIX™ 800 Class D Power Amplifier
• Universal Auto-Sensing Switch-Mode Power Supply (SMPS)
• High-Voltage Selector Switch for Preamp Tubes
• Power Output: 400W @ 8Ω, 800W @ 4Ω, 800W @ 2.67Ω
• Minimum Speaker Load: 2.67Ω
• Operating Voltage: 100–240V, 50/60Hz

Rear Panel

• Tube-Driven XLR Direct Output
• Mic / Line Switch
• Pre / Post EQ Switch
• Ground Lift Switch
• Effects Loop
• Aux Input
• Tuner Output
• Headphone Output
• Impedance Selector Switch
• Dual Speakon® Speaker Outputs

Dimensions & Weight

• Dimensions: 3.25" H × 11.25" W × 11.375" D (82.5 × 285.75 × 288.92mm)
• Weight: 7.25 lbs (3.26kg)

Shipping

• Shipping Dimensions: 16" L × 14" D × 6" H (392 × 355.6 × 152.4mm)
• Shipping Weight: 10 lbs (4.5kg)

Manufacturer: GENZLER AMPLIFICATION
Model: KNX-800
SKU: I786330-4-WHXD
