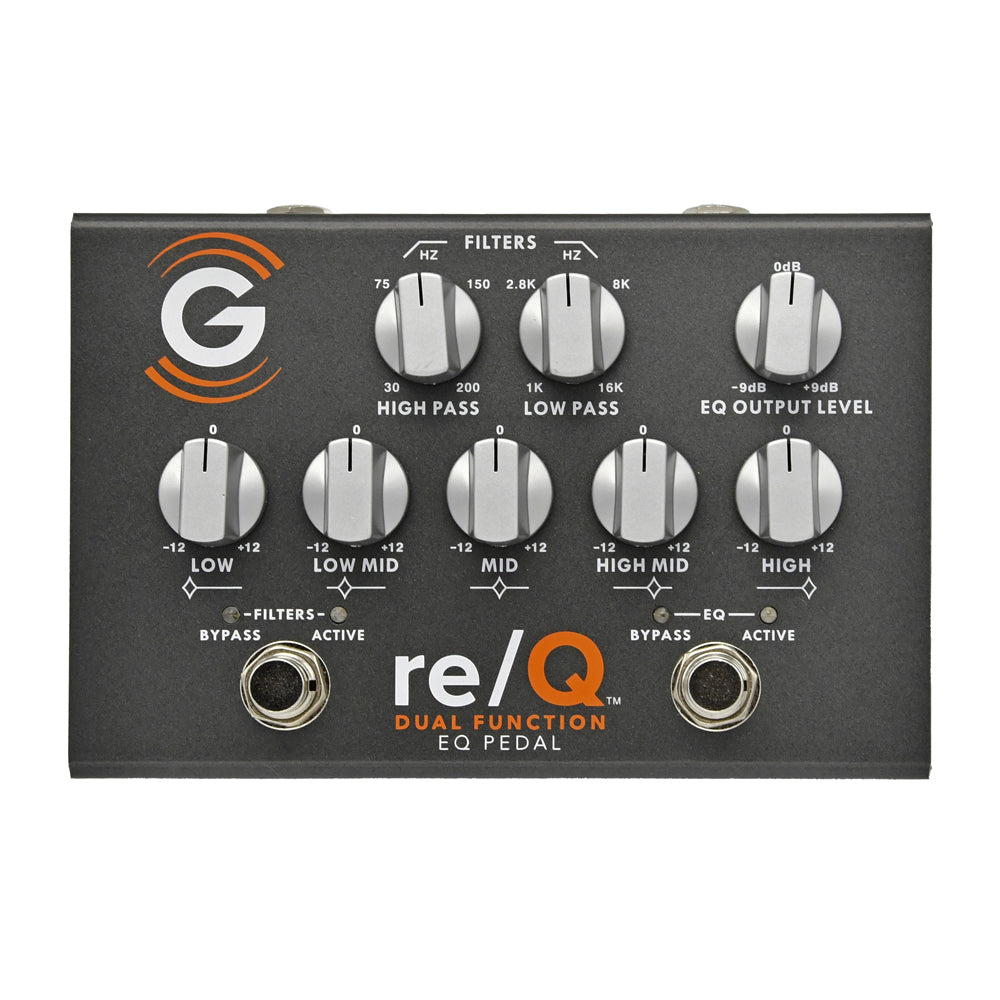

Genzler RE/Q Dual Function Equalization Pedal

The “Swiss Army Knife” for Tone - The Genzler RE/Q Dual Function Equalization Pedal

The re/Q™ DUAL FUNCTION EQ PEDAL is a low noise, ALL ANALOG multi-function HIGH PASS FILTER – LOW PASS FILTER and 5 BAND EQ pedal that gives the player complete tonal control over the cut-off of the extreme low and high frequencies, plus 5 bands of peak-dip equalization. The filter section is foot switched independently from the EQ section, and there is additional make-up gain or cut after the EQ for balancing of levels or to act as an additional boost/cut function when the EQ is switched into the signal path. The re/Q is also a great companion to our 4 ON THE FLOOR Classic Overdrive Pedal. It can be used to tailor your instrument’s tone for various overdrive settings, or increased boost levels for any of the Overdrive gears.

• Lightweight Aluminum Chassis
• Rugged Stomp Switches
• Low-noise, Silent Switching Circuitry
• High-Pass and Low-Pass Filter
• 5 Band Fixed EQ Network
EQ Output Level Control
• Accepts Power Supplies From 9VDC – 18VDC (low noise type), Either Polarity (auto detecting) 40mA Max — (Power Supply Not Included)
• Dimensions: 6”W X 4.1”D X 2.3”H
• Weight: 1.3 Lbs.

There are a wide variety of uses for the re/Q and is an excellent compliment to either of our MAGELLAN 350 or MAGELLAN 800 bass amps and our Acoustic Array PRO and MINI acoustic combos.

SPECIFICATIONS

• Input Impedance: 1M Ohm
• Output Impedance: 1k Ohm
• HPF: 30Hz–200Hz
• LPF: 1kHz–14kHz
• EQ Filter Points
• Low: 90Hz
• Low Mid: 250Hz
• Mid: 630Hz
• High Mid: 1.3kHz
• High: 2.6kHz
• EQ Band Control Range: +/- 12dB
• EQ Output Level Control Range: +/- 9dB
• Input Sensitivity (Nominal): -10dBu to -20dBu (Instrument Level)
• Input Level (Maximum): 0dBu (9V Supply), +5dBu (12V Supply), +10dBu (18V Supply)
• Output Level (Nominal): -10dBu to -20dBu (Instrument Level)
• Output Level (Maximum): +9dBu (9V Supply), +14dBu (12V Supply), +20dBu (18V Supply)
• Power Supply: 9VDC-18VDC (Low Noise Type), Either Polarity (Auto-Detecting), 40mA Max (Power Supply Not Included)
• Dimensions: 6” (152mm) W x 4.1” (104mm) D x 2.3” (59mm) H
• Weight: 1.3 lb (0.6kg)
