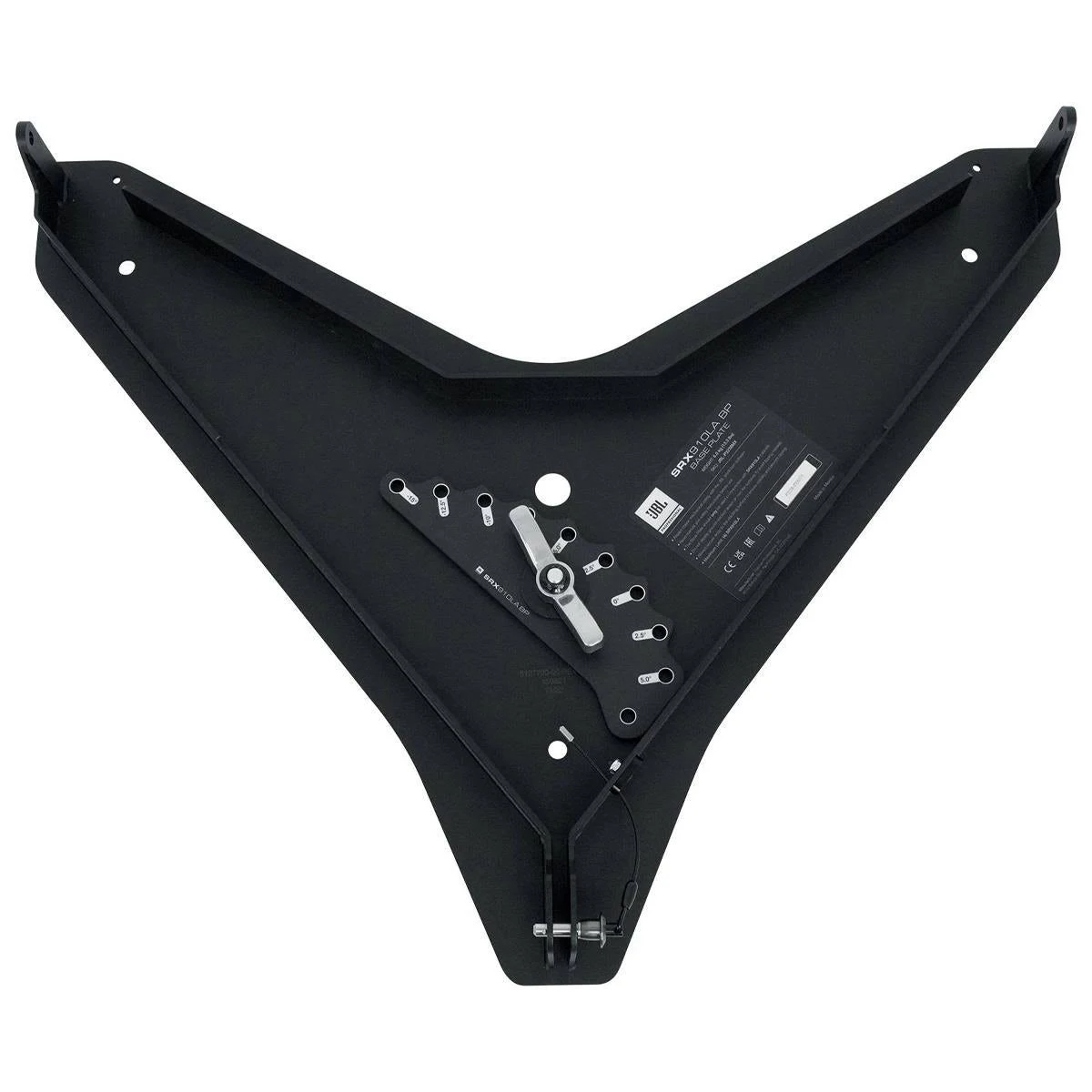

JBL Base Plate for SRX910LA

Ground-Stack SRX910LA Arrays with the JBL SRX910LA Base Plate

The JBL SRX910LA Base Plate is a universal adapter frame designed to ground-stack SRX910LA line array systems on compatible subwoofers or support structures such as stages, scaffolding, and carts. Using the included M20 thumb screw, the base plate connects to supported subwoofers equipped with a standard M20 pole-mount adapter, while the rear angle selection bar provides flexible array positioning from -15 to +5 degrees.

• Enables ground stacking of JBL SRX910LA arrays
• Universal M20 threaded pole mount for compatible subwoofers
• Rear angle selection bar provides adjustment from -15 to +5 degrees
• High-grade steel construction with anti-corrosion coating
• Black powder-coat finish
• Three M10 through-holes allow permanent attachment to compatible support structures
• Compatible with the JBL-P3312MX pole-mount adapter
• Supports SRX910LA configurations on compatible subwoofers, stages, scaffolding, or carts

Flexible Ground-Stacking Options

The SRX910LA Base Plate provides a stable platform for ground-stacking SRX910LA arrays on a variety of compatible supports. It can be mounted to supported subwoofers equipped with an M20 pole-mount adapter, including models such as the SRX918S and SRX928S, or secured to other support structures using the three integrated M10 through-holes.

Adjustable Array Angle

The rear angle selection bar allows the array angle to be adjusted from -15 to +5 degrees, providing flexibility when configuring coverage for different venues and audience areas.

Durable Steel Construction

Built from high-grade steel with an anti-corrosion coating and black powder-coat finish, the SRX910LA Base Plate is designed for professional use in touring, rental, and installed sound environments.

SPECIFICATIONS

General

• Product Type: Base plate for JBL SRX910LA arrays
• Construction: High-grade steel with anti-corrosion coating
• Finish: Black powder coat
• Angle Adjustment: -15 to +5 degrees
• Mechanical Safe Limit: 2 x SRX910LA
• Mechanical Maximum Limit: 4 x SRX910LA
• Mounting: M20 threaded connection and 3 x M10 through-holes

Dimensions and Weight

• Height: 75 mm / 2.9 inches
• Width: 683 mm / 26.9 inches
• Depth: 540 mm / 21.3 inches
• Net Weight: 6.0 kg / 13 lbs
• Shipping Weight: 8.5 kg / 18.8 lbs

What's in the Box

• 1 x SRX910LA Base Plate
• 1 x M20 Thumb Screw
