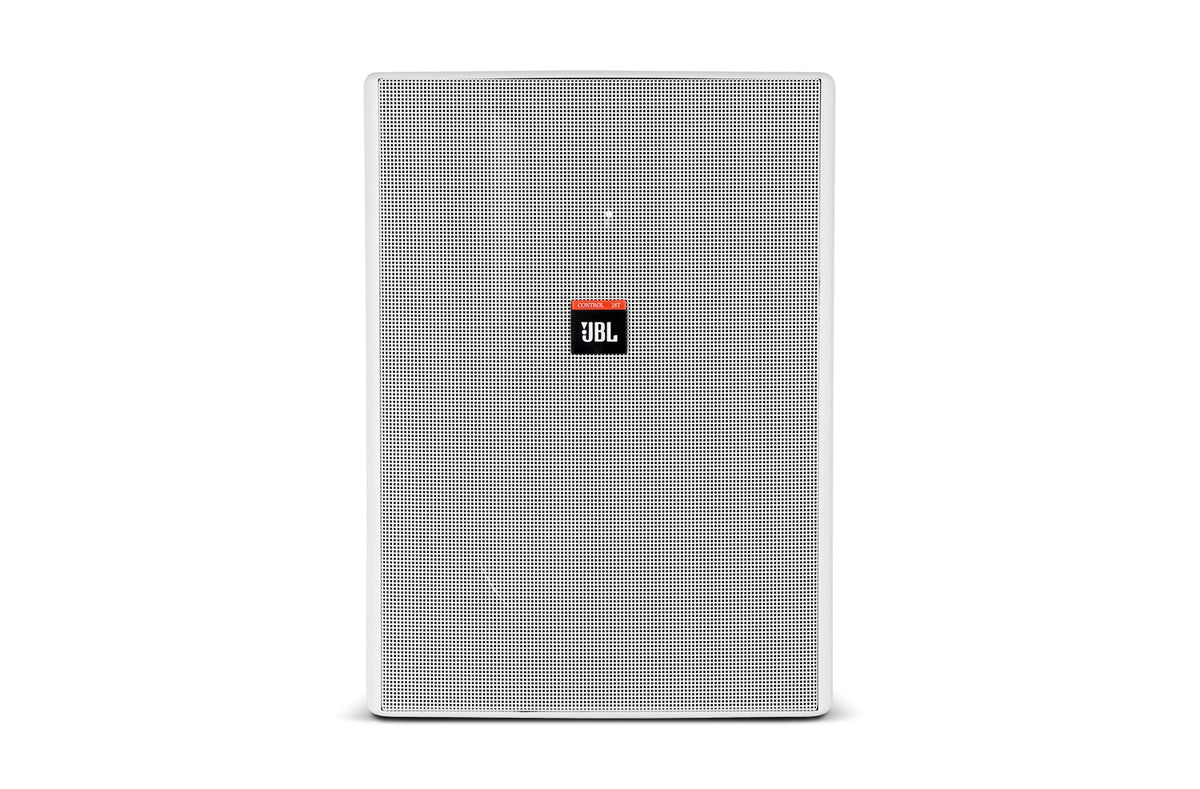

JBL Control 28T-60-WH 70-Volt Loudspeaker - White

JBL Control 28T-60 High Output Indoor/ Outdoor Background/ Foreground Loudspeaker

The Control® 28T is the largest of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers.

• Isolation transformer for 70.7 V / 100 V distributed-line sound systems.
• Components: 8 in Polypropylene coated woofer, 1 in Titanium coated horn loaded tweeter.
• Built-in InvisiBall® mounting hardware*.
• Weather resistant enclosure and transducers.
• Readily paintable.
• 90° x 90° high frequency horn.
• Overload Protection Circuitry.
• 8 Ohm Speaker

SPECIFICATIONS

• Frequency Range: 55Hz to 15kHz (-10 dB)
• Power Capacity: 175 W Continuous Program Power; 87 W Continuous Pink Noise
• Transformer Taps:
  • 100 V Line: 60 W, 30 W, 15 W
  • 70 V Line: 60 W, 30 W, 15 W, 7.5 W
• Nominal Max Output by Tap (dB-SPL @ 1m) 100V Input:
  • Tap#1: 102 dB
  • Tap#2: 105 dB
  • Tap#3: 107 dB
  • Tap#4: (do not use)
• Nominal Max Output by Tap (dB-SPL @ 1m) 70.7V Input:
  • Tap#1: 99 dB
  • Tap#2: 102 dB
  • Tap#3: 105 dB
  • Tap#4: 107 dB
• Coverage Angle: 90° x 90°
• Directivity Factor (Q): 7.5 dB
• Directivity Index (DI): 8.8 dB
• Crossover Frequency: 2.8kHz
• LF Driver: 200mm (8 in) Polypropylene cone with WeatherEdge
• HF Driver: 25mm (1 in) Titanium coated polycarbonate
• Enclosure Material: HIPS (High Impact Polystyrene)
• Overload Protection: Full-Range power limiting to protect network and transducers
• Termination: Spring terminals, accepts banana plug
• Environmental: Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating.
• Dimensions (H x W x D): 380 x 280 x 220 mm (15.0 x 11.0 x 8.6 in.)
• Net Weight (each): 6.5kg (14.3 lb)
• Shipping Weight (each): 15kg (33 lb)
• Included Accessories: Invisiball Assembly, 6mm x 180mm hex key
• Optional Accessories:
  • MTC-28SSG: Stainless Steel Grille, available in silver, black (-BK), or white (-WH)
  • MTC-28WMG: Weather Max Grille with backing to break up driving rain
  • MTC-28CM: Ceiling-Mount Adapter
  • MTC-28V: For vertical columnar orientation of up to 3 loudspeakers
  • MTC-28H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array
  • MTC-28/25CM: Ceiling-mount adapter
