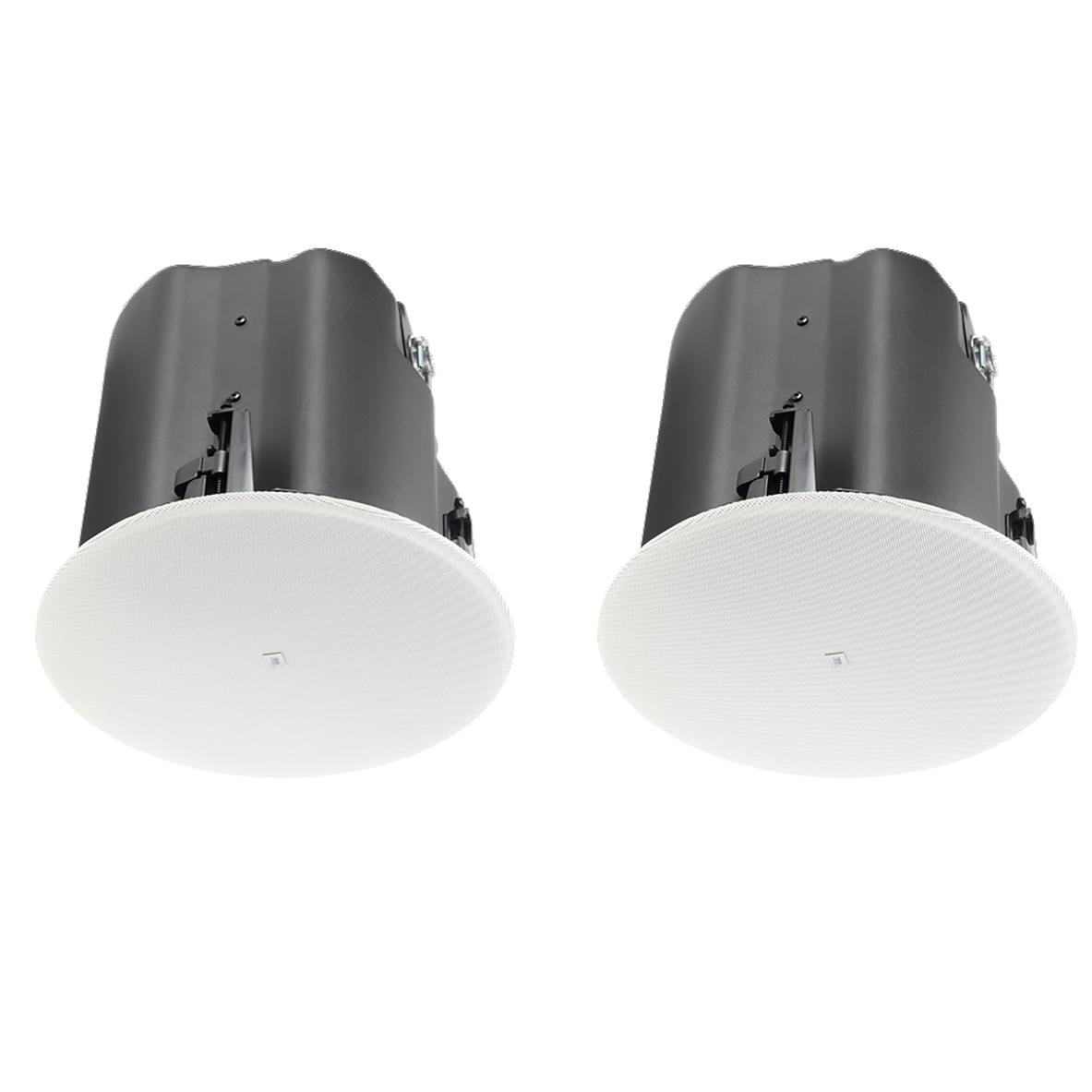

JBL Control 418C/T 2-Way 8-Inch Coaxial Ceiling Loudspeaker - Pair

Get Clean, Wide Coverage with the JBL Control 418C/T Ceiling Speaker

The JBL Control 418C/T from the Control 400 Standard Coverage Series is a two-way coaxial ceiling loudspeaker designed to deliver consistent, high-quality sound in commercial spaces. It features an 8" woofer and an integrated enclosure that fits most ceiling plenum spaces, plus wide 100° conical coverage for smooth, even listening across the room. Installation is streamlined with thoughtful hardware like a captive dogear design and a terminal cover that supports top or side cable entry. The included transformer makes it ready for both 70V/100V distributed systems and low-impedance applications.

• Two-way coaxial ceiling loudspeaker with integrated enclosure for most plenum installations
• 8" woofer delivers strong, clear full-range performance
• 100° conical coverage for even sound distribution
• Supports 70V/100V distributed audio and 8Ω low-impedance systems
• Transformer included for flexible system design
• Captive dogear design supports a range of ceiling thicknesses for reliable mounting
• Redesigned terminal covers allow convenient top or side cable entry
• Full-face magnetic grille is paintable and includes safety tethers
• Blends into modern interiors with optional grille styles and colors available

SPECIFICATIONS

• Item Number: JBL-C418C/T-LS
• Frequency Range (-10 dB): 57 Hz - 20 kHz
• Power Capacity: 135 W (540 W Peak) Continuous Pink Noise (2 hrs); 90 W (360 W Peak) Continuous Pink Noise (100 hrs)
• Sensitivity (1m/1W): 92 dB
• Coverage Angle: 100° conical
• Maximum SPL (1m): 113 dB continuous pink noise (119 dB peak)
• Nominal Impedance: 8Ω
• Transformer Taps: 70 V = 60 W, 30 W, 15 W, 7.5 W; 100 V = 60 W, 30 W, 15 W
• Drivers: 200 mm (8 in) LF with paper cone, SBR surround
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed; UL 1480A listed; UL registered transformer
• Environmental: IP33 per EN/IEC 60529; Operating temperature 0° C to 45 °C
• Color: Stock grille is White (RAL9003), paintable
• Ceiling Cutout Size: 282 mm (11.1 in)
• Dimensions: 283 mm (11.3 in) H x 315 mm (12.6 in) dia.; 271 mm (10.8 in) from bottom of ceiling tile to top of backcan
• Net Weight (each): 5.8 kg (12.79 lbs)
• Shipping Weight (pair): 17.72 kg (39.07 lbs)

OPTIONAL ACCESSORIES

• JBL-MTC-418BG black (RAL9004) round grille
• JBL-MTC-418SG white (RAL9003) square grille
• JBL-MTC-447NC new construction bracket
• JBL-MTC-447MR mud-ring construction bracket
• JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
