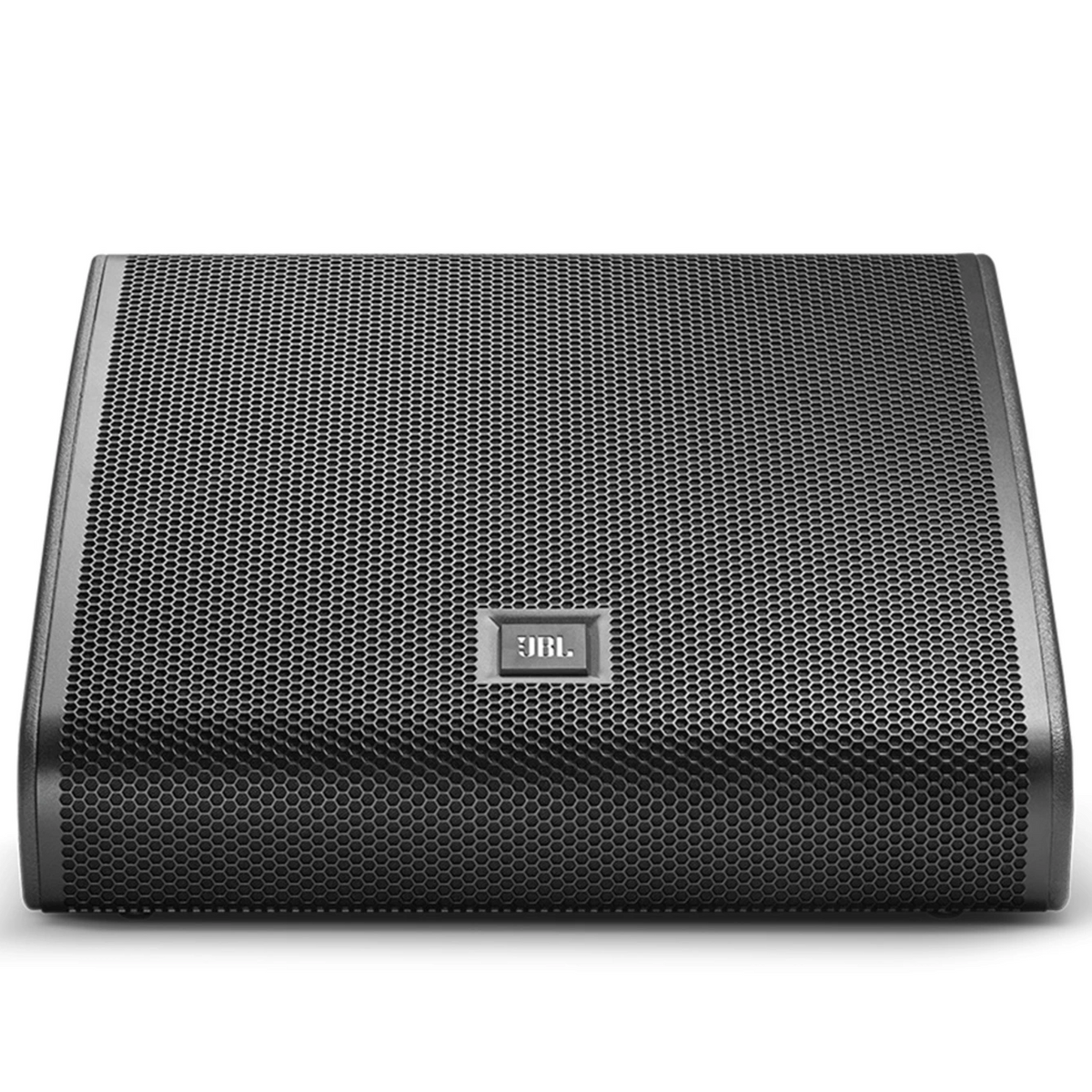

JBL VTX-M20 Dual 10-inch Professional Stage Monitor

Experience Precision Monitoring With the JBL VTX M20 Dual 10-Inch Professional Stage Monitor

The JBL VTX M20 is a dual 10-inch professional stage monitor designed for the most demanding touring and broadcast environments. Featuring a low-profile, elegant design, it fits seamlessly into any stage setup while delivering unmatched clarity and power. Equipped with JBL’s state-of-the-art Differential Drive™ transducers and D2 dual diaphragm compression driver, the VTX M20 provides pristine sound quality, impressive output, and exceptional consistency across every performance.

• Dual 10-inch professional stage monitor with compact, low-profile design
• Ideal for touring and high-profile broadcast applications
• Features JBL Differential Drive™ cone transducers and D2 dual diaphragm compression driver
• 60° x 60° high-frequency waveguide with JBL Image Control Waveguide Technology
• Selectable single-channel (passive) or dual-channel (bi-amp) operation for maximum system flexibility
• Compatible with Crown Audio I-Tech HD Series amplifiers and processing

SPECIFICATIONS

Frequency Response

• Frequency Range (-10 dB): 55 Hz – 19.5 kHz

Coverage Pattern (-6 dB)

• Horizontal: 60°
• Vertical: 60°

Power Rating

• Passive: 1250 W Continuous (IEC / 100 hour)
• Active LF: 1250 W Continuous (IEC / 100 hour)
• Active HF: 100 W Continuous (IEC / 100 hour)

Maximum SPL (1 m)

• 136 dB (Preset: VTX M20 FR)

System Latency

• 3.33 ms

System Processing

• Crown Audio I-Tech HD Series, I-Tech 4x3500HD

Nominal Impedance

• Passive: 4 ohms
• Active LF: 4 ohms
• Active HF: 8 ohms

Transducers

• LF Driver: 2 × 2261H, 254 mm (10-inch) diameter, dual 76 mm (3-inch) voice coil, NDD® Direct Cooled™
• HF Driver: 1 × D2430H, D2 dual diaphragm, dual 76 mm (3-inch) voice coil

Monitor Angle

• 30°

Enclosure

• 18 mm, 11-ply Finnish birch plywood

Grille

• Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing

Input Connectors

• Passive: Neutrik® Speakon® NL-4 (4x), selectable Pins 1 ± or Pins 2 ±
• Active: Neutrik® Speakon® NL-4 (4x), Pins 1 ± (LF), Pins 2 ± (HF)

Dimensions (H × W × D)

• 342.9 mm × 575.0 mm × 515.3 mm (13.6 in × 22.6 in × 20.3 in)

Weight

• 23 kg (51 lbs)
