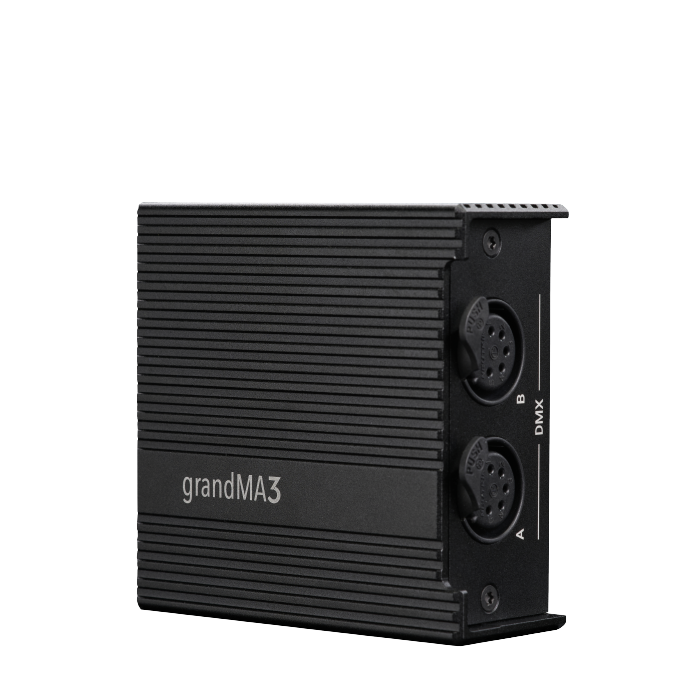

MA Lighting MA4035535 grandMA3 onPC DMX-key 4k

Unlock Compact Lighting Control with the MA Lighting grandMA3 onPC DMX-key

The MA Lighting grandMA3 onPC DMX-key is a compact USB-C lighting control solution designed for small venues, clubs, theatres, houses of worship, television studios, installations, and system racks. Used with the free grandMA3 onPC software, it unlocks real-time control of 4,096 parameters without the need for a dedicated console or complex network setup.

• Unlocks 4,096 parameters when used with grandMA3 onPC software
• Simple USB-C connection for true plug-and-play operation
• No configuration or networking setup required
• Ideal for small venues, clubs, theatres, TV studios, houses of worship, and installations
• Compact design works well in system racks, cases, museums, stadiums, theme parks, and architainment projects
• Lockable USB-C connector provides a secure computer connection
• Two DMX512-A outputs on 5-pin XLR female connectors
• Status LED provides quick visual feedback
• Robust aluminum housing built for dependable use
• Anti-slip strips and guide rails support easy mounting

Professional grandMA3 Control in a Compact Format

The grandMA3 onPC DMX-key brings the performance and reliability of the grandMA3 platform to compact and flexible environments. By connecting directly to a PC running grandMA3 onPC software, it provides access to professional lighting workflows without requiring a full console.

Simple Plug-and-Play Setup

Setup is straightforward: connect the DMX-key to your PC, launch the grandMA3 onPC software, and begin working. This makes it useful for users who need a reliable control solution without complicated configuration, networking, or additional infrastructure.

Built for Venues and Installations

The compact form factor and mounting-friendly design make the grandMA3 onPC DMX-key suitable for both portable and permanent applications. Anti-slip strips, guide rails, and included mounting screws allow it to be installed in system racks, cases, and fixed lighting control setups.

Reliable MA Lighting Ecosystem

With access to unrestricted grandMA3 onPC software, the DMX-key offers long-term flexibility, scalability, and compatibility with professional MA Lighting workflows. It is a practical solution for compact lighting systems that still need professional-grade control.

SPECIFICATIONS

General

• Product Type: USB-C DMX interface for grandMA3 onPC
• Model: grandMA3 onPC DMX-key
• Art. No.: 4035535
• Compatible Software: grandMA3 onPC
• Parameters: 4,096 HTP/LTP
• Parameters Mode2: Not applicable, no Mode2
• Housing: Robust aluminum
• Status Indicator: Status LED
• Mounting: Anti-slip strips, guide rails, and mounting screws

Power

• Operating Voltage / Supply Voltage: USB powered, 5 V DC
• Power: Max. 2.5 VA

Connections

• DMX Outputs: 2 x DMX512-A out, 5-pin XLR female
• USB Connection: 1 x USB 2.0 Type-C
• USB Connector: Lockable USB-C

Operating Environment

• Operating Temperature: 0°C to 40°C / 32°F to 104°F

Dimensions

• Dimensions: 90 x 88 x 38 mm / 3.54 x 3.46 x 1.5 inches
• Dimension Format: Width x depth x height

Weight

• Net Weight: 0.24 kg / 8.5 oz

Supplied With

• 1 x MA USB 2.0 Type-C locking screw to Type-C cable, 0.5 m, Art. No. 4035958
• 1 x MA mounting screw set, 2 x M5 x 12 screws and 2 x M5 nuts, Art. No. 4035959
• 1 x Safety Instructions
