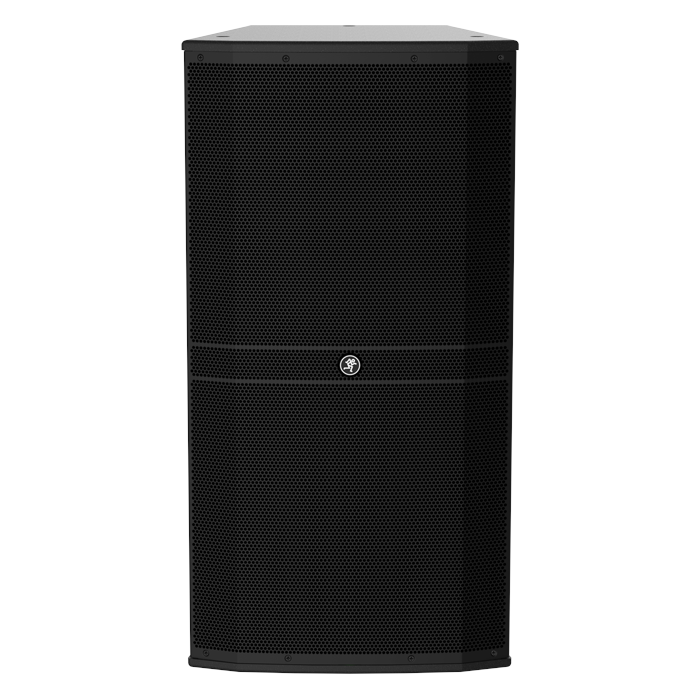

Mackie DRM315-P 2000 W 15-Inch 3-Way Passive Loudspeaker

Get High-Performance Audio With the Mackie DRM315-P 2000 W 15 Inch 3-Way Passive Loudspeaker - Pair

DRM Passive Series Professional Passive Loudspeakers feature custom transducers housed in touring-grade plywood cabinets designed for consistent performance in all applications. Equipped with M10 fly points and dual angle pole mounts, DRM Passive Loudspeakers are perfect for clubs, rental systems, and more. Combine with MX Series Amplifiers and the SP260 Loudspeaker Processor for a complete Mackie professional system.

• High-performance professional loudspeaker designed for high-demand applications
• Custom-designed for high-demand applications
• 1.4 inch Titanium diaphragm compression driver offer maximum transparency and clarity
• 6.5 inch Midrange transducer provides incredible midrange clarity for punchy vocals and instrument reproduction
• 15 inch High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications
• Rotatable waveguide assembly allows for horizontal orientation while maintaining maximum coverage
• Precision 3-way crossover
• Premium grade components and precise tuning provide maximum clarity and performance
• Parallel speakerON inputs
• Road-worthy 15 mm plywood construction and internal bracing offers optimal acoustic performance
• Touring-grade textured cabinet coating
• Powder-coated heavy gauge steel grille
• Pole-mountable
• Flyable - 12xM1O flypoints for vertical and horizontal orientation
• Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
• Power-handling (continuous/program/peak): 500 W / 1000 W/ 2000 W
• 67.5 pounds / 30.6 kg

SPECIFICATIONS

Acoustic Performance

• Type: 15 Inch 3-Way Passive Loudspeaker
• Frequency Range (-10 dB): 45 Hz - 20 kHz
• Frequency Range (-3 dB): 65 Hz - 18 kHz
• Horizontal Coverage Angl: 90 degree [rotatable]
• Vertical Coverage Angle: 60 degree [rotatable]
• Power Handling: 1000 watts RMS, 2000 watts peak, 136 dV max SPL peal
• Crossover Frequency: 900 Hz [LF/MF], 2.5 kHz [MF/THF]

Transducers

• Low Frequency: 15 inch / 381 mm with ferrite
• Mid Frequency: 6.5 inch / 165 mm
• High Frequency: 1.4 inch / 36 mm titanium, dome compression driver

Physical

• Input Type: 1x Female speakON
• Thru Type: 1x Female speakON
• Nominal Impedance: 4 ohms
• Basic Design: Vertical Trapezoidal
• Enclosure Material: 15 mm Plywood
• Enclosure Finish: Black Polyurea
• Grille Material: 16-18 gauge perforated steel
• Grille Finish: Powder-coated black
• Handles: One on each side
• Operating Temperature: 0-40 degrees Celsius, 32 - 104 degrees Fahrenheit

Dimensions

• Height: 36.5 inches / 927 mm
• Width: 19 inches / 483 mm
• Depth: 18.8 inches / 479 mm
• Weight: 68 pounds / 30.8 kg

Mounting Methods

• Flour mount, pole mount via the built-in socket on the bottom of the cabinet [be sure the capable of supporting the weigh of the DRM315-P or fly via the integrated M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts)
