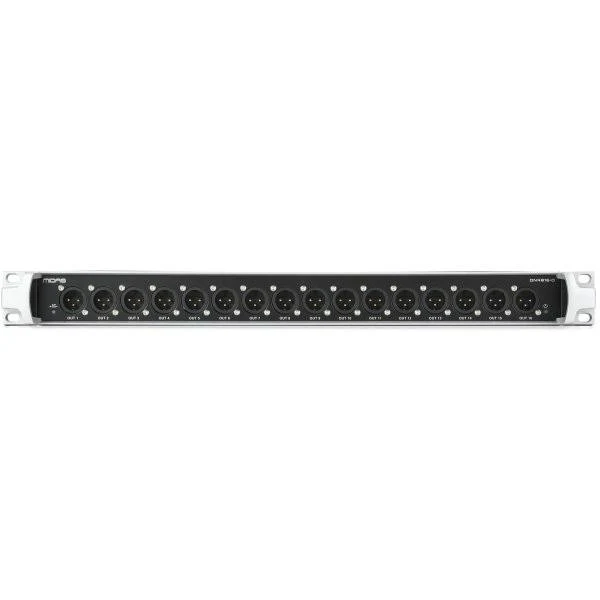

Midas DN4816-O StageConnect Interface

Midas DN4816-O StageConnect Interface with 16 XLR Line Outputs

The Midas DN4816-O provides a dead-simple way to break out 16 channels of line-level analog audio from a StageConnect network. This bus-powered interface delivers 16 XLR outputs and includes two Ethernet ports: one to send output to StageConnect channels 1–16, and a second to accept 16 channels from another ULTRANET device. Configuration is quick via the built-in Synchronization switch, and onboard status LEDs plus a USB firmware port keep you ready for the road and the rack.

• Breaks out 16 channels of analog audio from a StageConnect network
• 16 XLR line-level analog outputs
• Two Ethernet ports: one routes to StageConnect channels 1–16; one accepts 16 channels from another ULTRANET device
• Built-in Synchronization switch to accept sync from ULTRANET or StageConnect
• Status LED confirms StageConnect network connection
• Power LED indicates power from external adapter or StageConnect bus
• USB Type-B port for firmware updates
• Rackmountable 1U design

SPECIFICATIONS

• Type: Stage Box
• Compatibility: Midas ULTRANET, StageConnect
• Channels: 32 x 16
• Main Outputs: 16 x XLR
• Data I/O: 2 x StageConnect XLRs, 2 x RJ45
• USB: 1 x Type B
• Rackmountable: Yes, 1U
• Power Source: 12V DC power supply (included)
• Height: 1.9 inches
• Width: 19 inches
• Depth: 6.7 inches
• Weight: 4.9 lbs
