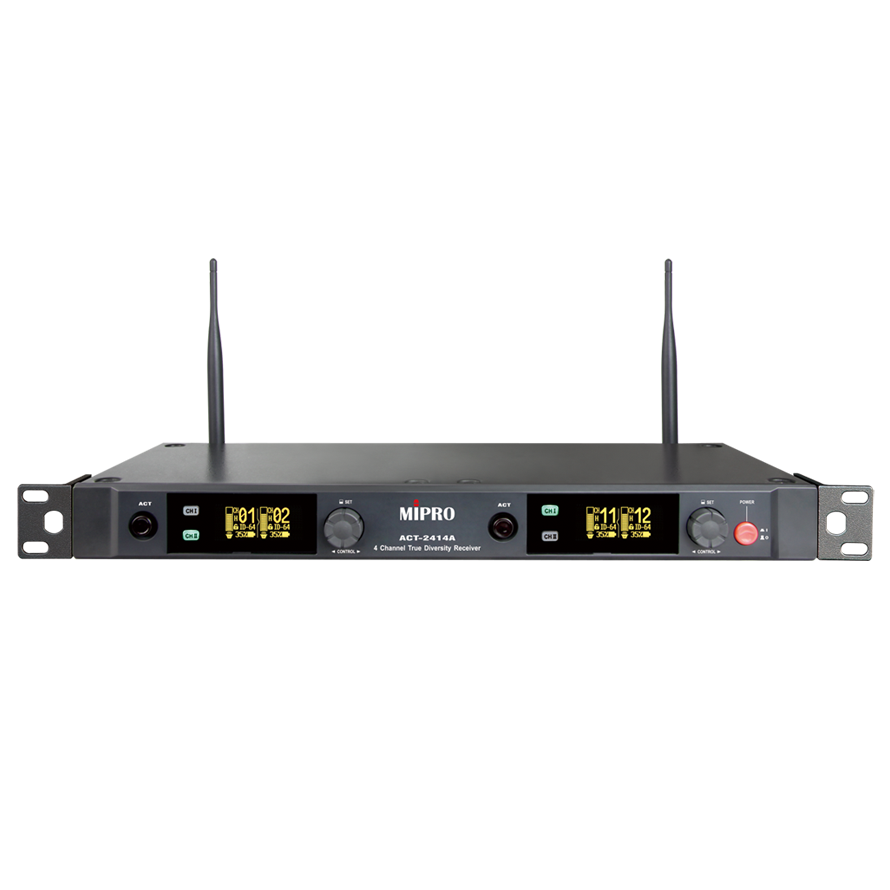

MIPRO ACT-2414A - Detachable Antenna Quad-Channel Digital Receiver

Get Cutting Edge Audio in a Affordable Price - MIPRO ACT-2414A - Detachable Antenna Quad-Channel Digital Receive

The MIPRO ACT-2414A is a cutting-edge Detachable Antenna Quad-Channel Digital Receiver, offering dual-tuner true diversity reception for extended range and reliable performance without signal dropouts. It utilizes Frequency Hopping Spread Spectrum (FHSS) technology, adept at navigating around the Wi-Fi frequencies in use, significantly reducing interference from other 2.4 GHz devices. Featuring a graphic OLED display, it offers an expansive viewing experience. The design of the front panel and operation align with the user-friendly interface of MIPRO's digital lineup. Encased in a robust housing, its meticulously engineered PCB ensures minimal malfunction rates, embodying MIPRO's commitment to reliability and quality in audio technology.

• The receiver in full-rack metal chassis has antenna connectors on the rear panel for connecting the external antenna system. The receiver in half-rack metal chassis has a built-in high efficiency antenna on the front panel.
• MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without blind angles.
• Up to 12 channels for interference-free operation in one frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• ACT-2414A/2412A are equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• Effectively avoids RF interference from UHF communication products
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• Pairs with ACT-240H handheld and ACT-240T bodypack transmitter.
• All are designed and made in Taiwan to ensure high quality and value.


SPECIFICATIONS

• Description: Detachable Antenna Quad-Channel Digital Receiver
• Channel: Quad
• Chassis: EIA Standard 19 " 1U metal black chassis
• Antenna: Rear panel, detachable
• Frequency Band: ISM 2.4 GHz
• Bandwidth: 83 MHz
• Preset Frequency: 12
• Display: Graphic OLED
• Transmission Method: FHSS frequency-hopping technique. Each channel has 4 preset hopping frequencies.
• Receiving Mode: Dual-tuner true diversity receiving
• Audio Sampling: 24-bit / 44.1 kHz Rate
• Frequency Response: 20 Hz ~ 20 kHz
• Dynamic Range: 117 dBA
• Output Connectors: Balanced XLR & Unbalanced Ø 6.3 mm, 0 dB (standard), -10 ~ +20 dB adjustable range
• Latency: < 4.0 ms
• Channel Set-up: ACT Sync
• Dimensions (W × H × D): 420 × 44 × 180 mm / 17 × 1.7 × 7.1 "
• Net Weight: Approx. 1.5 kg / 3.3 lbs
