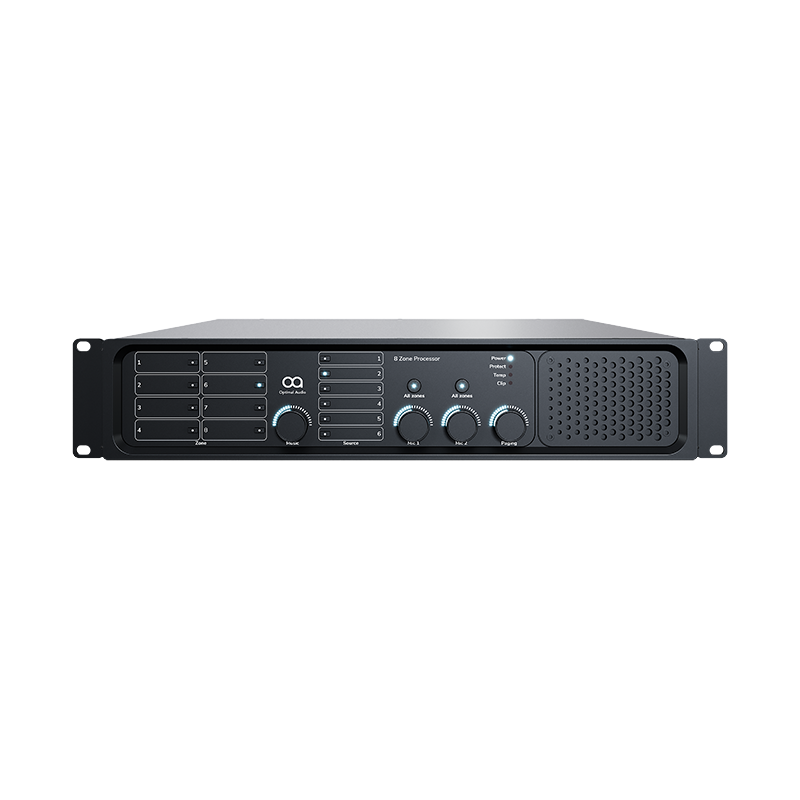

Optimal Audio Zone 8 – 8-Zone Audio Controller with DSP and WebApp

The Optimal Audio Zone 8 is a powerful multi-zone audio controller with built-in DSP, designed to be the central hub of high-quality commercial sound systems. Supporting up to eight configurable zones, it offers complete flexibility in routing and managing audio sources, making it ideal for venues such as restaurants, hotels, retail spaces, houses of worship, corporate offices, and more.

With its intuitive WebApp interface, the Zone 8 enables straightforward configuration, including EQ adjustments, speaker preset selection, time-of-day routines, and other essential audio controls. Featuring a range of input options—including 4 stereo line inputs, 2 microphone inputs with phantom power, and 2 HDMI inputs for video sources—it integrates easily into any modern audio setup.

When paired with Optimal Audio ZonePads and SmartAmp amplifiers, the Zone 8 delivers a streamlined, cost-effective, and scalable system with outstanding sound performance.

• Full suite of audio controls for up to 8 independent zones
• Flexible source routing via WebApp interface
• 2 mic inputs with 48V phantom power and adjustable gain
• 4 stereo line inputs with SPDIF option on input 1
• 2 HDMI inputs for TV and video audio integration
• Speaker presets and zone-specific EQ settings
• Programmable presets and timed events
• Compatible with ZonePad wall controllers
• Works seamlessly with Optimal Audio SmartAmp series

SPECIFICATIONS

• Type: 8-zone audio processor with DSP and loudspeaker presets
• Mic Inputs: 2 (48V phantom power, +12dB to +55dB gain)
• Mic Input Processing: Hi-pass filter @160Hz; sweepable mid-band 200Hz–5kHz, ±12dB; HF shelf @12kHz
• Line Inputs: 4 stereo (+26dB gain trim, SPDIF option on input 1)
• HDMI Inputs: 2
• Line Outputs: 8
• ZonePad Sockets: 8
• Paging Inputs (CAT 5): 2
• LAN: Ethernet 100Mbps
• Alarm Override: Yes
• Dimensions (W x H x D): 480 x 88 x 400 mm / 18.90" x 3.46" x 15.75"
• Weight: 9.2 kg / 20.2 lbs
