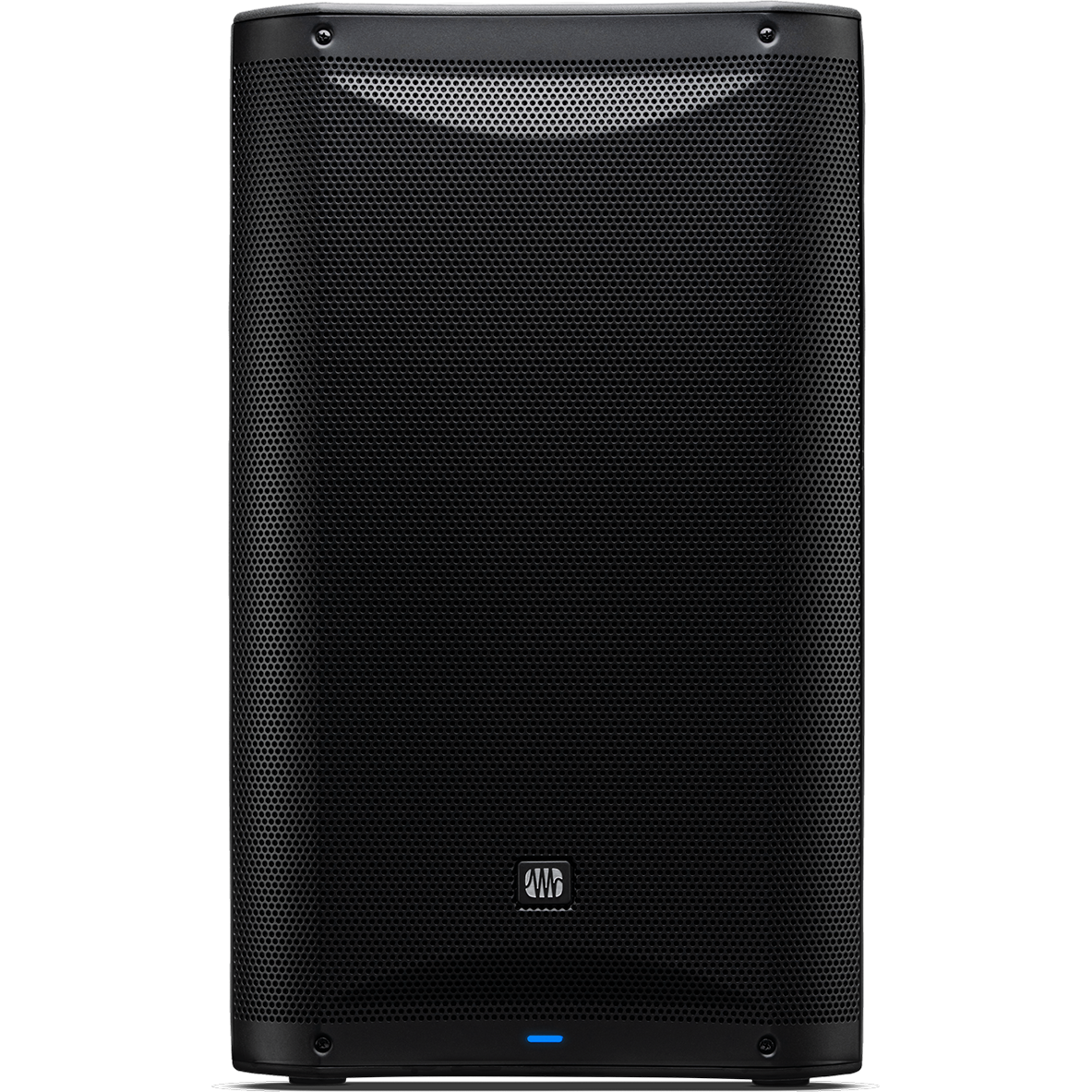

PreSonus AIR XD 12 2-Way 12-Inch Active Extended Definition Loudspeaker

Get Extended-Definition Sound with the PreSonus AIR XD 12 2-Way 12-Inch Active Extended Definition Loudspeaker

The PreSonus AIR XD 12 is a full-range active loudspeaker built for professional sound reinforcement, delivering extended-definition clarity, high SPL, and a balanced response for live gigs, DJs, corporate events, and installs. Its custom 12" LF driver uses an enlarged 2.56" voice coil for efficient power handling and punchy low end, while the 1.35" HF compression driver with a PEEK diaphragm stays crisp, detailed, and responsive even during long, high-output sets. With 1,500W of Class D bi-amplification and onboard DSP presets, the AIR XD 12 makes it easy to dial in the right voicing for FOH, monitor, speech, or music playback.

• 1,500W Class D bi-amplification delivers clean output with up to 132 dB SPL
• Custom 12" LF driver with enlarged 2.56" voice coil for tight, dynamic low end
• 1.35" HF compression driver with PEEK diaphragm for clear, durable, detailed highs
• Onboard DSP with performance presets, tuning modes, and ±10 dB EQ
• Full-color 2.6" LCD for intuitive metering, control, and fast setup
• Bluetooth 5.0 with TWS Bridge Mode for true wireless stereo pairing
• Integrated 3-channel mixer with combo mic/line and aux inputs
• Versatile deployment: flown, pole-mounted (dual-angle socket), ground-stacked, or floor wedge

SPECIFICATIONS

• Product Name: AIR XD 12 2-Way Active Sound-Reinforcement Loudspeaker
• Series: AIR
• Amplifier Type: Class-D (Bi-Amplified)
• Total Power Output: 1500W
• Peak SPL: 132 dB
• Frequency Response: 51 Hz – 20 kHz (-3 dB); 48 Hz – 20 kHz (-10 dB)
• Coverage Pattern: 90° (H) x 60° (V)
• Crossover Frequency: 1.6 kHz
• LF Transducer: 12" (2.56" Voice Coil)
• HF Transducer: 1.35" Compression Driver (PEEK diaphragm)
• Inputs: 2 x XLR/TRS Mic/Line Combo, 1 x 1/8" TRS Stereo, Bluetooth Stereo
• Line Out: 1 x XLR Mix Out (Balanced, XLR Male)
• Bluetooth: Bluetooth® v5.0 (TWS Bridge Mode)
• Channels: 3
• Controls: Gain, Volume, Hi/Lo EQ
• DSP Features: Speaker modes, Location, Bass, Treble
• Protections: Output limiter
• Cabinet Material: H-PP Molded
• Grille: 1.2 mm Steel
• Handles: 1 Top, 1 Side
• Pole Socket: Dual Position (0°, 7.5°)
• Suspension: M10 points (Flypoints: 2 Top, 1 Back)
• Power Requirements: 100-240 VAC, 50-60 Hz
• Power Consumption: 6.6A (120V); 3.3A (230V-50 Hz)
• Power Cable: IEC
• Color: Black
• Dimensions (H x W x D): 24.4" x 14.2" x 13.8" (61.9 x 36.0 x 35.1 cm)
• Weight: 43.3 lb (19.5 kg)
