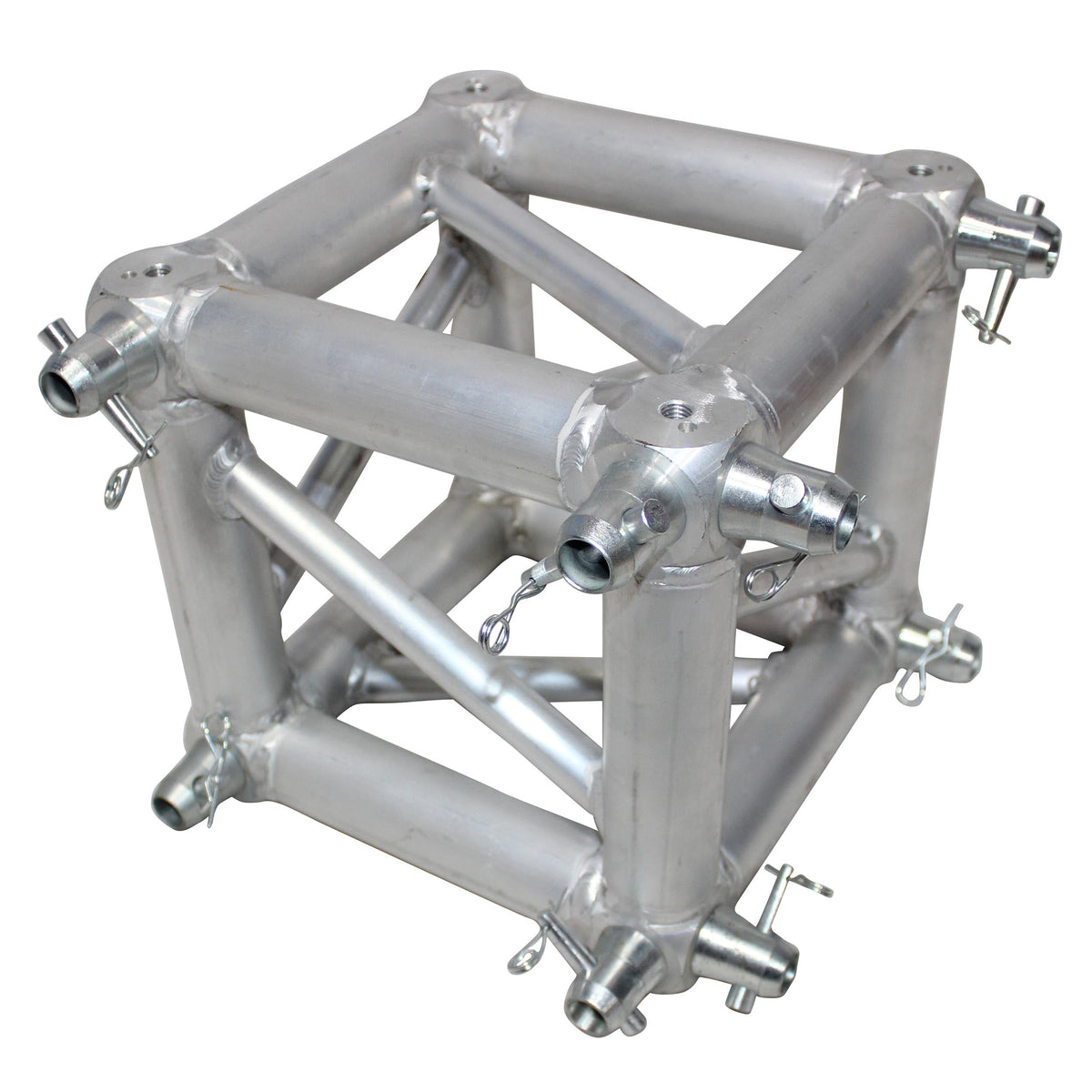

ProX XT-JB6W-2W 6 Way Square Truss Junction Block

Get Strong, Modular Rigging Flexibility with the ProX XT-JB6W-2W 6-Way Square Truss Junction Block – Includes 2-Way 8 Half Conical Couplers

The ProX XT-JB6W-2W 6-Way Square Truss Junction Block is a universal connecting node for F34-class square truss systems. It ships ready to integrate with ProX XT F34 components and other brands that use the same size and conical connector style. Built with 2-inch (50 mm) main tubes, 3/4-inch (20 mm) bracing, and 3 mm wall thickness, this block is engineered for dependable, repeatable assembly in touring, event, and install applications.

Designed to the highest safety and performance standards, the XT-JB6W-2W features tolerance-free standard conical connectors for fast, rigid mating and includes eight half conical couplers to get you building right away. Use it as the core of multi-directional grids and towers, combine with corners, base plates, and accessories, and scale to limitless configurations. (Always verify loads with the appropriate truss loading chart for your design.)

• 6-way junction node for F34 square truss systems
• Includes 8 half conical couplers; accepts additional couplers for expanded utility
• Tolerance-free standard conical connector interface
• 2-inch main tubes with 3 mm wall thickness; 3/4-inch bracing
• Compatible with many manufacturers using the same size and connector style
• Ideal for grids, towers, and modular event structures

SPECIFICATIONS

SKU

• XT-JB6W-2W

System & Compatibility

• Class: F34 square truss profile
• Connector: Standard conical (tolerance-free)
• Compatibility: ProX XT F34 and other brands with matching size/connector style

Tubing & Construction

• Main Tube (OD): 2 in / 50 mm
• Wall Thickness: 0.11 in / 3 mm
• Braces (OD): 0.75 in / 20 mm
• Material: EN-AW T6 6082 aluminum
• Welding: TÜV-certified aluminum welding

Dimensions & Weight

• Profile (XT-SQ Series): 11.42 in × 11.42 in (290 mm × 290 mm)
• Exterior Cube Size: 11.45 in H × 11.45 in W × 11.45 in L
• Junction Block Weight: 17.0 lb

Included Hardware

• 8 × Half conical couplers (installed)
• Complete connecting hardware set
