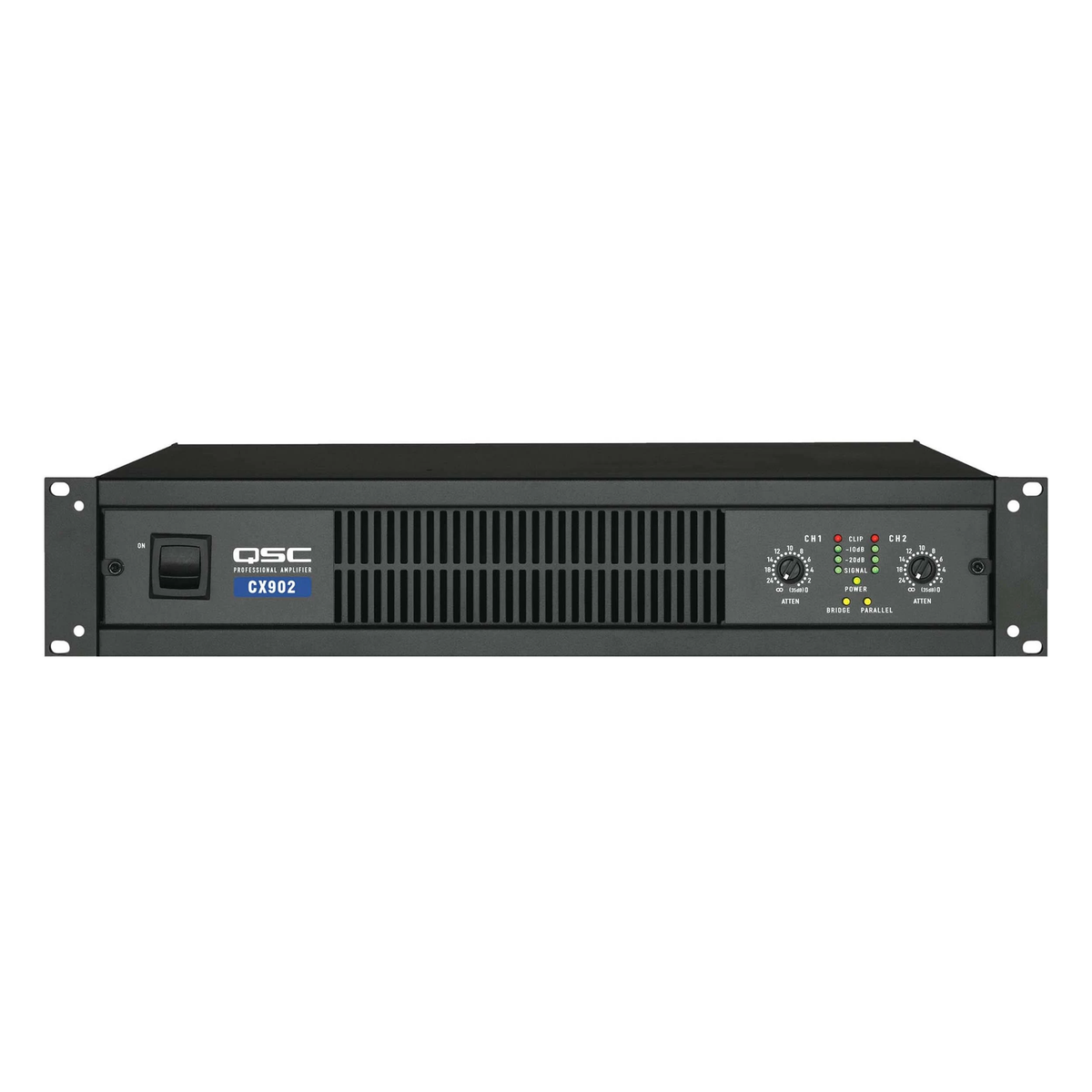

QSC CX902 550-Watt Installation Power Amplifier

Designed to Meet the Specialized Needs of Sound Contractors - The QSC CX902 550-Watt Installation Power Amplifier

The CX Series is designed to meet the specialized needs of sound contractors. Eight 2-channel models have been designed from the ground up, combining the exclusive QSC PowerLight™ technology with specific features to meet the requirements of fixed installations. With high-output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system

• 8 models to meet your exact power requirements •
• Exclusive PowerLight switch-mode power supply technology for high performance and compact size •
• Custom integrated security cover for tamper proof installations •
• Variable speed fan for low noise •
• 1 dB detented gain controls for fast and accurate gain settings •
• Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers •
• XLR and detachable Euro-style input connectors •
• HD15 DataPort connector for QSControl computer control or signal processing accessories •
• Dip switch control for clip limiters, high-pass filters, bridge-mono and parallel operation •
• Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (33 Hz or 75 Hz on non-V models, 50 Hz or 75 Hz on V models) •
• Comprehensive front panel indicators including signal, clip, protect and QSC’s exclusive bridge-mono and parallel input LEDs •
• Barrier strip output connector •
• Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection •
• Class H complementary bipolar output circuitry for high efficiency (CX702, CX902, CX1102 & CX1202V) •
• Optional external transformer accessory pack for isolated 70 and 100 volt outputs (converts CX302 to 400 watts per channel isolated output) •
• Compact size – all models only 2 RU and 14" deep for reduced rack cost and floor space •
• Lightweight – all models only 21 pounds (9.5 kg) for easier racking and shipping •
• 3-year warranty plus optional 3-year extended service contract


SPECIFICATIONS

• Amplifier Power Rating:
  • 16 Ohms: 1100 W (Full Range, 0.1% THD)
  • 8 Ohms: 550 W (Full Range, 0.05% THD)
  • 140 V:
    • 800 W (Full Range, 0.1% THD)
    • 880 W (1 kHz, 0.05% THD)
    • 1200 W (1 kHz, 1% THD)
  • 70 V:
    • 400 W (Full Range, 0.05% THD)
    • 440 W (1 kHz, 0.05% THD)
    • 600 W (1 kHz, 1% THD)
• Amplifier Class: Class-AB, Class-B
• Performance Protections: DC Fault, On/Off Muting, Open Circuit, RF, Reactive/Mismatched Load, Short Circuit, Thermal, Ultrasonic
• Frequency Response: 20 Hz to 20 kHz ±0.2 dB, 8 Hz to 50 kHz +0/-3 dB
• Damping Factor: > 500
• Input Sensitivity: 1.26 Vrms
• Input Impedance: 6 Kilohms (Unbalanced), 12 Kilohms (Balanced)
• Max Gain: 35 dB (at 70 V)
• THD: < 0.01% (Full Range, at Rated Power -10 dB), < 0.01% (1 kHz, at Rated Power)
• Intermodulation Distortion: < 0.02% (SMPTE)
• Signal Processing:
  • Filters: High-Pass (33 Hz / 75 Hz)
  • Limiting: Clip
• Connectivity:
  • Analog Audio I/O: 2x Block 3-Pin Input, 1x Barrier Strip 6-Pin Output
  • Digital I/O: 1x DE-15/DB-15 DataPort Input
• Power:
  • AC Input Power: 120 VAC, 60 Hz
  • Current Consumption: 0.9 A (Idle), 8.7 A (1/8 Power), 13 A (1/3 Power)
• Physical Attributes:
  • Display & Indicators: 1x Red LED (Stereo Mode), 1x Yellow LED (Bridged Mode), 1x Green LED (Power), 1x Red LED (Clip/Protect, per Channel), 2x Yellow LED (Level, per Channel), 1x Green LED (Level, per Channel)
  • Cooling: Fan (Variable Speed), Heatsink
  • Dimensions: 19.0 x 3.5 x 14.0" / 48.3 x 8.9 x 35.6 cm
  • Weight: 21 lb / 9.5 kg
• Packaging Info:
  • Package Weight: 27 lb
  • Box Dimensions (LxWxH): 24 x 18.5 x 6"
