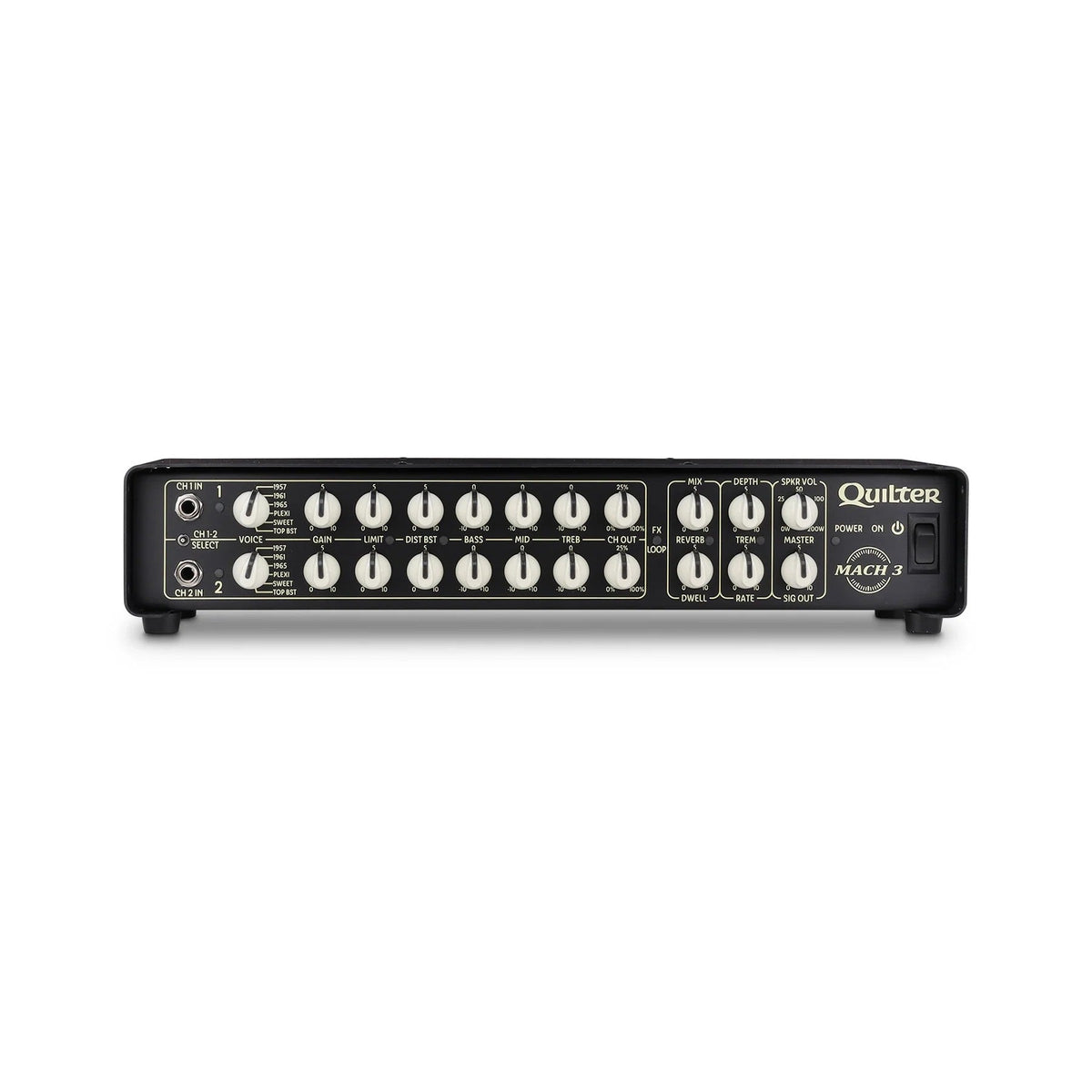

Quilter Aviator Mach 3 Guitar Amplifier Head

Soar to New Heights with Unparalleled Power and Tone - The Quilter Aviator Mach 3 Guitar Amplifier Head

Introducing the Quilter Aviator Mach 3, the pinnacle of lightweight and powerful guitar amplification. Weighing in at just over 4 pounds, this two-channel head is a marvel of modern engineering, capable of delivering up to a full 200 watts of tube-like power. Whether you’re a gigging musician or a recording artist, the Mach 3 is designed to elevate your performance with its supersonic power and tonal versatility.

• Up to 200 watts of tube-like power
• Dual channel switching: Switch one instrument between channels, switch between two instruments, or use both channels at once
• 6 different voicings to switch between or combine 2 at a time
• 3 band active EQ (Bass/Mid/Treble)
• Reverb and Tremolo effects
• Separate SPKR VOL and SIG OUT volumes: When playing on stage with PA reinforcement, work with the sound operator to establish a comfortable SIG OUT level, then use the SPKR VOL to set your personal speaker level without changing the SIG OUT level
• Cab Sim Switch
• Effects Loop

Dual Channels for Dynamic Creativity

The Mach 3 offers two switchable channels that cover a wide array of iconic rock amp tones, perfect for genres ranging from rock and blues to country and pop. With six distinct voices on each channel, you can effortlessly switch between instruments or blend them together for a rich, layered sound.

Professional Features for the Performing Artist

The Mach 3 is not just an amplifier; it’s a comprehensive toolbox for the discerning guitarist. It includes professional features like separate mix out volume controls, allowing you to maintain a consistent signal out level while adjusting your speaker volume on stage. The built-in EQ with Bass, Mids, and Treble controls lets you sculpt your sound with precision, and the footswitch-defeatable reverb adds depth to your tone. It includes professional features like separate mix out volume controls, allowing you to maintain a consistent signal out level while adjusting your speaker volume on stage.

Connectivity and Control

Designed with the modern musician in mind, the Mach 3 provides differentiated signal output paths for on-stage performance and sound engineering needs. The FX Loop, SIG OUT, and HEADPHONE outputs offer flexibility for direct PA system connection, recording, and silent practice.

SPECIFICATIONS

Electronic Performance

• Input: 2 X ¼” Mono, 2 meg impedance, 1.5-5Vpk (depending on EQ)
• FX Loop: ¼” mono, 1V full scale, 1K out, 47K inp (with FX Send lifted)
• SIG OUT: ¼” TRS, balanced line, 40 ohms each leg, 2V full scale
• HEADPHONE (SIG OUT): ¼” TRS, 40 ohms each channel, 0-6Vpk (depending on SIG VOL)

Power

• Speaker Out: 0-200W (depending on SPKR VOL setting)
• AC Power: 100-240 VAC, 50-60Hz, 250W maximum

Dimensions

• Head HxWxD: Height: 3.5” (8.9cm) including feet, 0.45"(1.1 cm) Width: 17” (43.2cm) Depth: 5.6” (14.3cm)
• Weight (Combo): 4.35 lbs (1.9 kg)
• Cover: Includes Deluxe Head Case

Primary Controls

• VOICE SELECTOR SWITCH allowing you to choose between 6 distinct voices on each channel.
• GAIN adjusts the distortion from clean to high gain.
• LIMITER intervenes to limit how far into overdrive the sound can go.
• DISTORTION BOOST lets you add breakup before the VOICE and EQ section, so these settings will also shape the tone of the distortion, much like using a pedal in front of the amp.
• 3-BAND ACTIVE EQ Boosts and cuts Bass, Mids, and Treble frequencies.

Effects Controls

• REVERB applies to both channels and is footswitch defeatable.
• TREMOLO applies to both channels and is footswitch defeatable.

Volume Controls

• CH OUT marked with percentages from zero to 100% relating to the power level selected by the SPKR VOL located in the MASTER section on the far right.
• SPKR VOL adjusts speaker power volume level.
• SIG OUT controls the volumes of headphones and Line Out.
