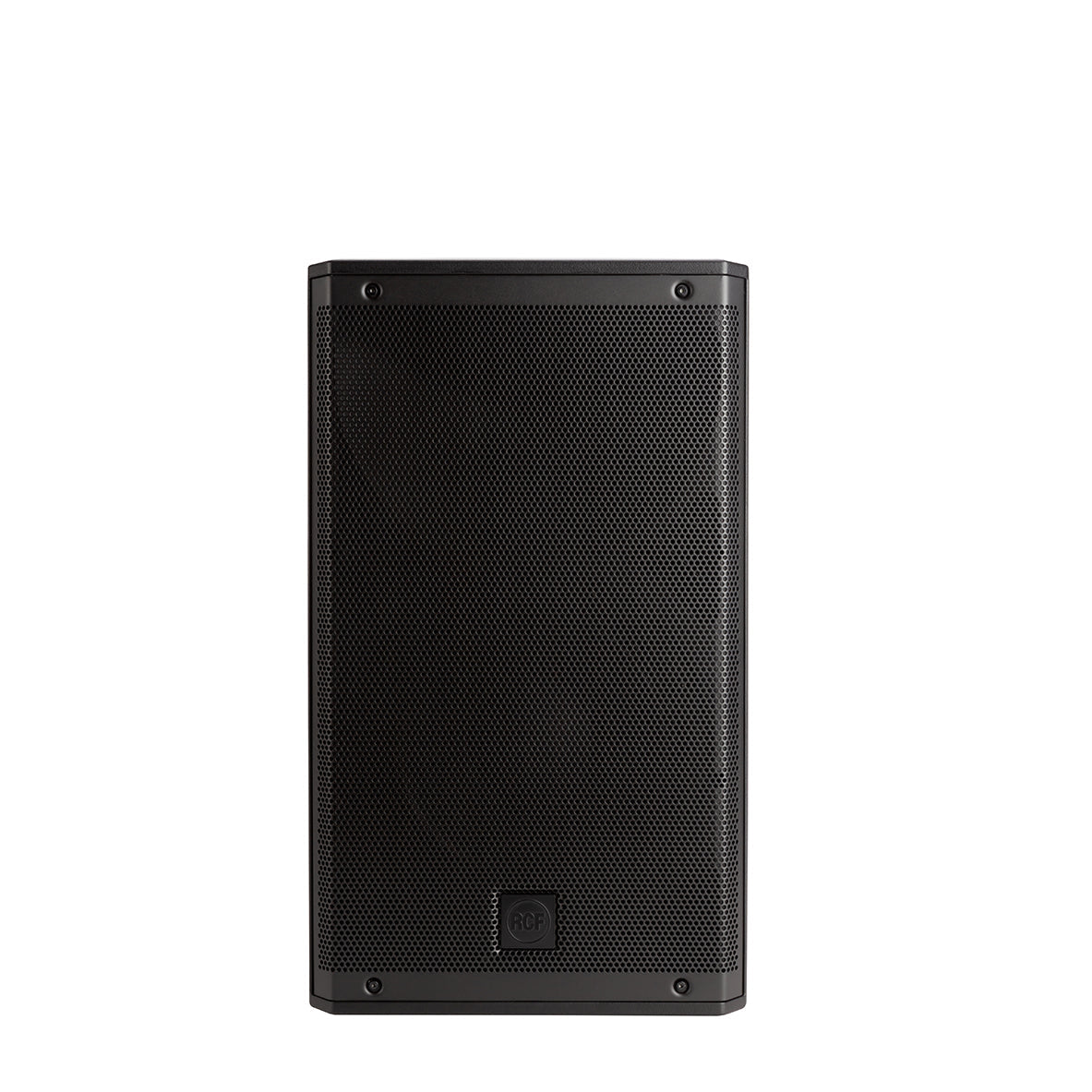

RCF ART 810-A 10-Inch 2-Way Active Speaker
Deliver Portable Sound with the RCF ART 810-A 10-Inch Active Speaker ART 810-A is a portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75-inch...
PRODUCT DETAILS
Everything you need to know.
Deliver Portable Sound with the RCF ART 810-A 10-Inch Active Speaker
ART 810-A is a portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75-inch compression driver, 10-inch woofer, and powerful 1400 W two-channel amplifier work with RCF’s constant-directivity True Resistive Waveguide to deliver consistent 100° x 60° coverage, clear reproduction, and up to 129 dB SPL with low distortion.
- 129 dB Max SPL
- 1400 W Class D Bi-Amplification
- 100° x 60°, wide dispersion True Resistive Waveguide
- 1.75-inch compression driver
- 10-inch woofer
- FiRPHASE technology
- XBOOST low frequencies enhancer
The lightweight yet rugged cabinet uses a special polypropylene composite with internal M-brace reinforcement for improved stability and reduced resonance, making ART 810-A fast to deploy, easy to handle, and ready for portable systems or secure installation on a pole, wall, truss, or flown setup via multiple rigging points.
SPECIFICATIONS
Acoustical Specifications
- Frequency Response: 50 Hz - 20000 Hz
- Max SPL: 129 dB at 1 m
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 60°
Transducers
- Compression Driver: 1 x 1.0-inch, 1.75-inch voice coil
- Woofer: 10-inch, 2.5-inch voice coil
Input/Output Section
- Input Signal: Balanced/unbalanced
- Input Connectors: XLR, jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
- Mic Input Sensitivity: -32 dBu
Processor Section
- Crossover Frequencies: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Volume, Boost, MIC/Line
Power Section
- Total Power: 1400 W peak
- High Frequencies: 400 W peak
- Low Frequencies: 1000 W peak
- Cooling: Convection
- Connections: VDE
- RCF Technology: FiRPHASE, XBOOST
Standard Compliance
- Safety Agency: CE compliant
Physical Specifications
- Cabinet/Case Material: PP composite
- Hardware: 2 x M10, top and bottom side
- Handles: 1 on top
- Pole Mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
Dimensions
- Height: 564.9 mm / 22.24 inches
- Width: 329.9 mm / 12.99 inches
- Depth: 310.2 mm / 12.21 inches
Weight
- Weight: 16 kg / 35.27 lb
Manufacturer: RCF
Model: ART 810-A
SKU: I934304-N-4-WHXB
