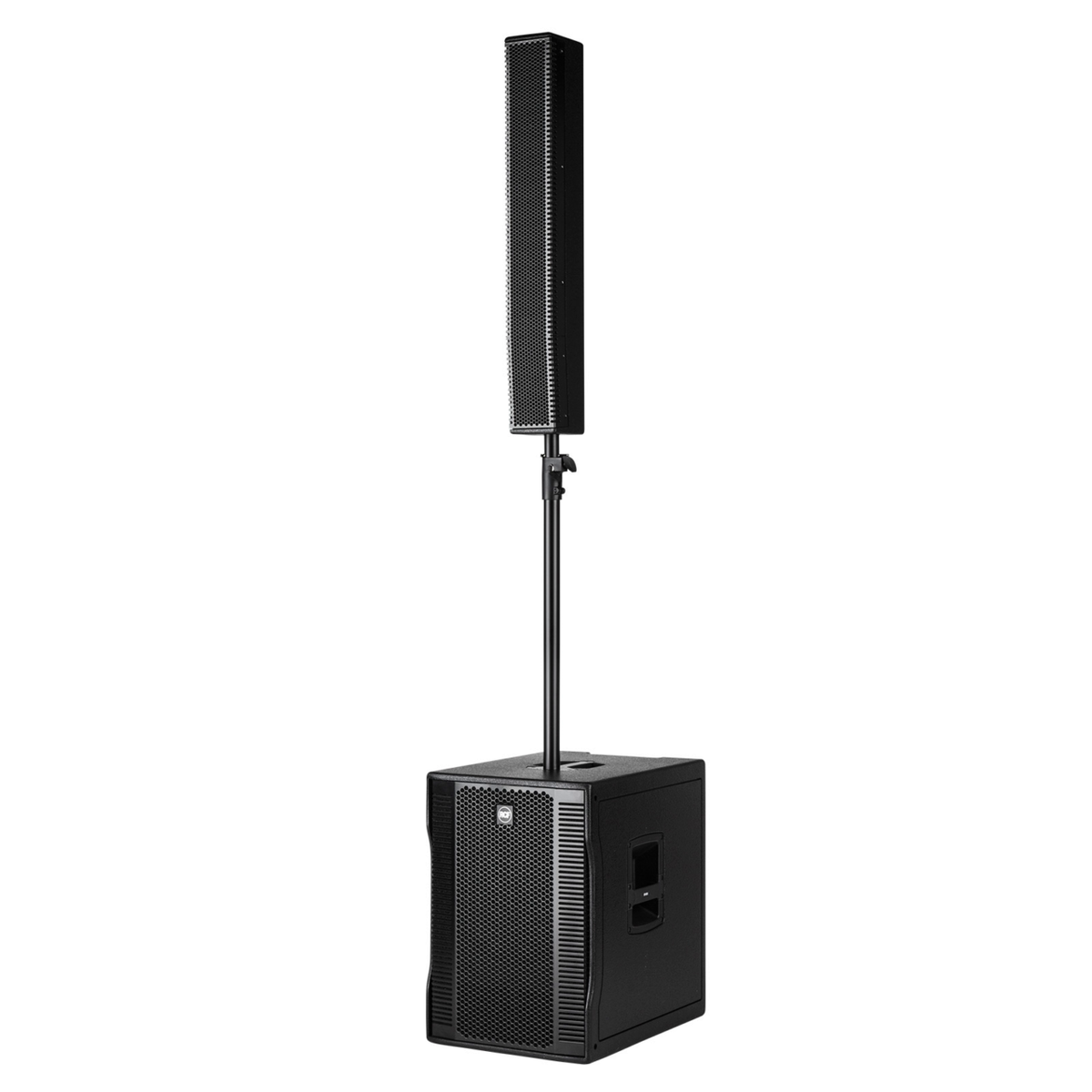

RCF EVOX 12 Active Two Way Array

Get A High Performance Enclosure That's Very Compact, With Integrated Wheels And Extendable Handle - The RCF EVOX12 Active Two Way Array System

EVOX is the professional RCF answer to small satellite-subwoofer or column style portable speakers. EVOX, designed for live sound, exceeds the portability and the performances of other existing products.

The RCF EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4" full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs.

The 15" subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response
• 15" Woofer
• 8 x 4" neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

SPECIFICATIONS

Acoustical

• Frequency Response -3 dB: 40 Hz - 20 Hz
• Max SPL: 130 dB
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 30 Degrees
• Full-Range: 8x 4.0", 1.0" v.c.
• Woofer: 15", 3.0" v.c.

Input/Output

• Input Connectors: Jack-XLR male
• Output Connectors: XLR female
• Input Sensitivity: -2 dBu / + 4 dBu

Processor

• Crossover Frequencies: 180 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ

Amplifier

• Total Power: 1400 W PEAK, 700 W RMS
• High frequencies: 400 W PEAK, 200 W RMS
• Low frequencies: 1000 W PEAK, 500 W RMS
• Cooling: Convection
• Connections: VDE connector

Cabinet

• Cabinet Material: Baltic birch plywood
• Handles: 2 side, 1 top
• Pole Mount/Cap: Yes
• Color: Black

Physical

• Height: 2220 mm/87.4"
• Width: 410 mm/16.14"
• Depth: 560 mm/22.05"
• Net Weight: 36.4 kg/80.24 lbs
