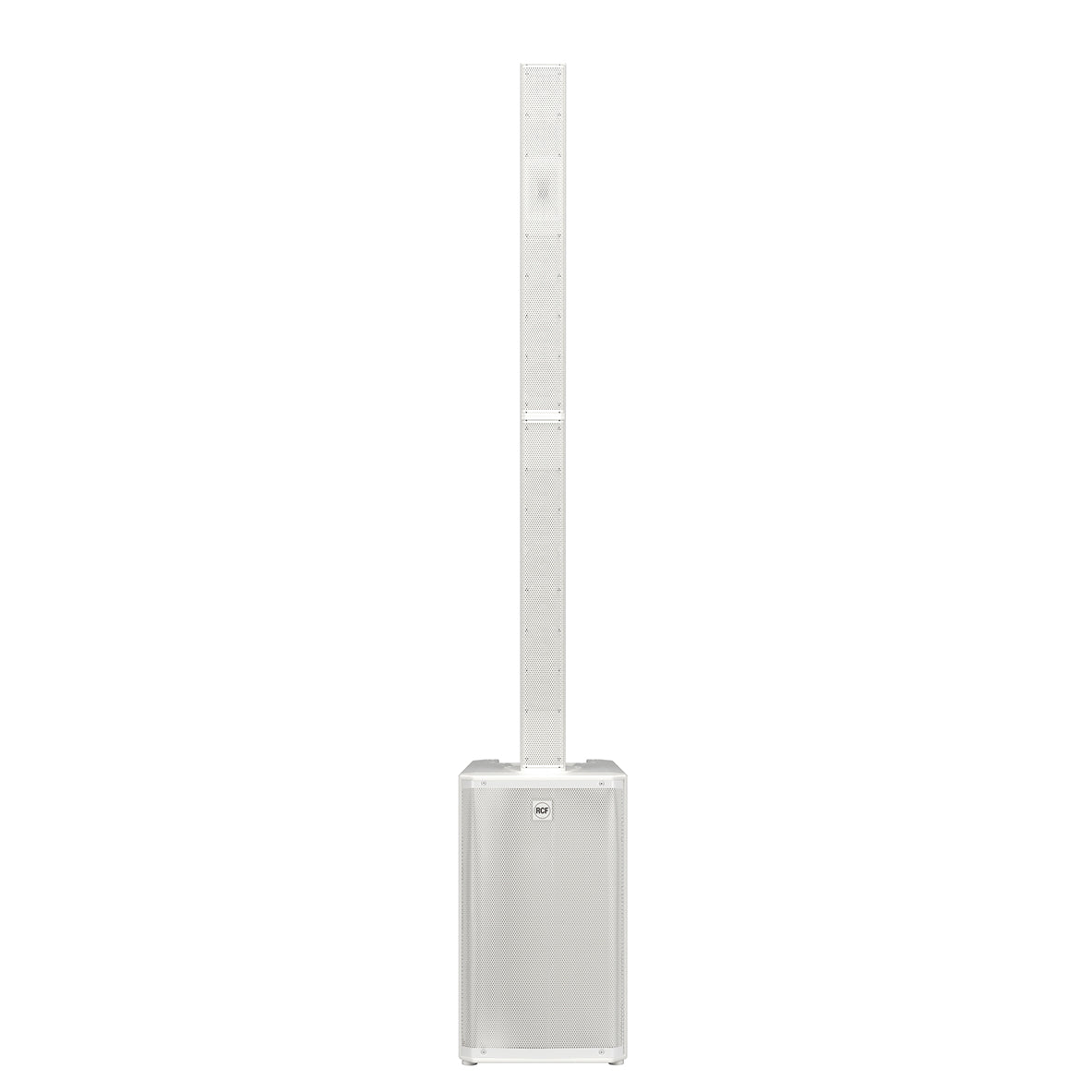

RCF EVOX-J11 Active 3500-Watts 12-Inch Three-way Column Array - White

Maximum Clarity and Serious Output - The RCF EVOX-J11 Active 3500-Watts 12-Inch Three-way Column Array in White

The RCF EVOX J11 is an active, three-way portable column system built for maximum clarity and serious output in a compact, elegant footprint. A 1.75" compression driver paired with a 120° × 40° True Resistive Waveguide delivers wide, consistent coverage, while 12 x 3" full-range neodymium transducers and a high-power 12" woofer in a bass-reflex enclosure produce articulate mids and deep, controlled lows. Powered by a 3500W onboard dual-channel Class-D amplifier with built-in DSP, the EVOX J11 reaches up to 132 dB Max SPL—ideal for bands, DJs, and live performers who need fast deployment and tour-grade performance.

• 132 dB Max SPL for high-impact live performance
• 3500W peak Class-D amplification with built-in DSP
• 1.75" neo compression driver with 120° x 40° True Resistive Waveguide
• 12 x 3" full-range neo transducers for detailed vocal and instrument clarity
• 12" RCF precision low-frequency woofer for tight, controlled bass
• Preset voicings for quick setup: LINEAR/LIVE, CLUB, VOICE
• Composite cabinet with aluminum stand mount and quick-fit socket
• Road-ready, sleek column design for unobtrusive staging
• Top speaker padded carrying bag included
• PowerCON TRUE1 TOP IN/OUT mains connectors

SPECIFICATIONS

General

• System Type: Active Three-Way Portable Column Speaker
• Frequency Response: 37 Hz – 20,000 Hz
• Max SPL @ 1m: 132 dB
• Coverage: 120° (H) x 40° (V)

Transducers

• Compression Driver: 1 x 0.75" neo, 1.75" voice coil
• Full-Range: 12 x 3.0" neo, 1.0" voice coil
• Woofer: 1 x 12", 2.5" voice coil

I/O

• Input Signal: Balanced / Unbalanced
• Input Connectors: Combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: +4 dBu

DSP / Processing

• Crossover Frequencies: 160 Hz / 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets (LINEAR/LIVE, CLUB, VOICE)

Amplifier / Power

• Total Power: 3500 W Peak
• HF Power: 1500 W Peak
• LF Power: 2000 W Peak
• Cooling: Convection
• AC Connections: PowerCON TRUE1 TOP IN/OUT

Dimensions & Weight

• Height: 2285 mm (89.96 in)
• Width: 400 mm (15.75 in)
• Depth: 460 mm (18.11 in)
• Weight: 20.2 kg (44.53 lb)
