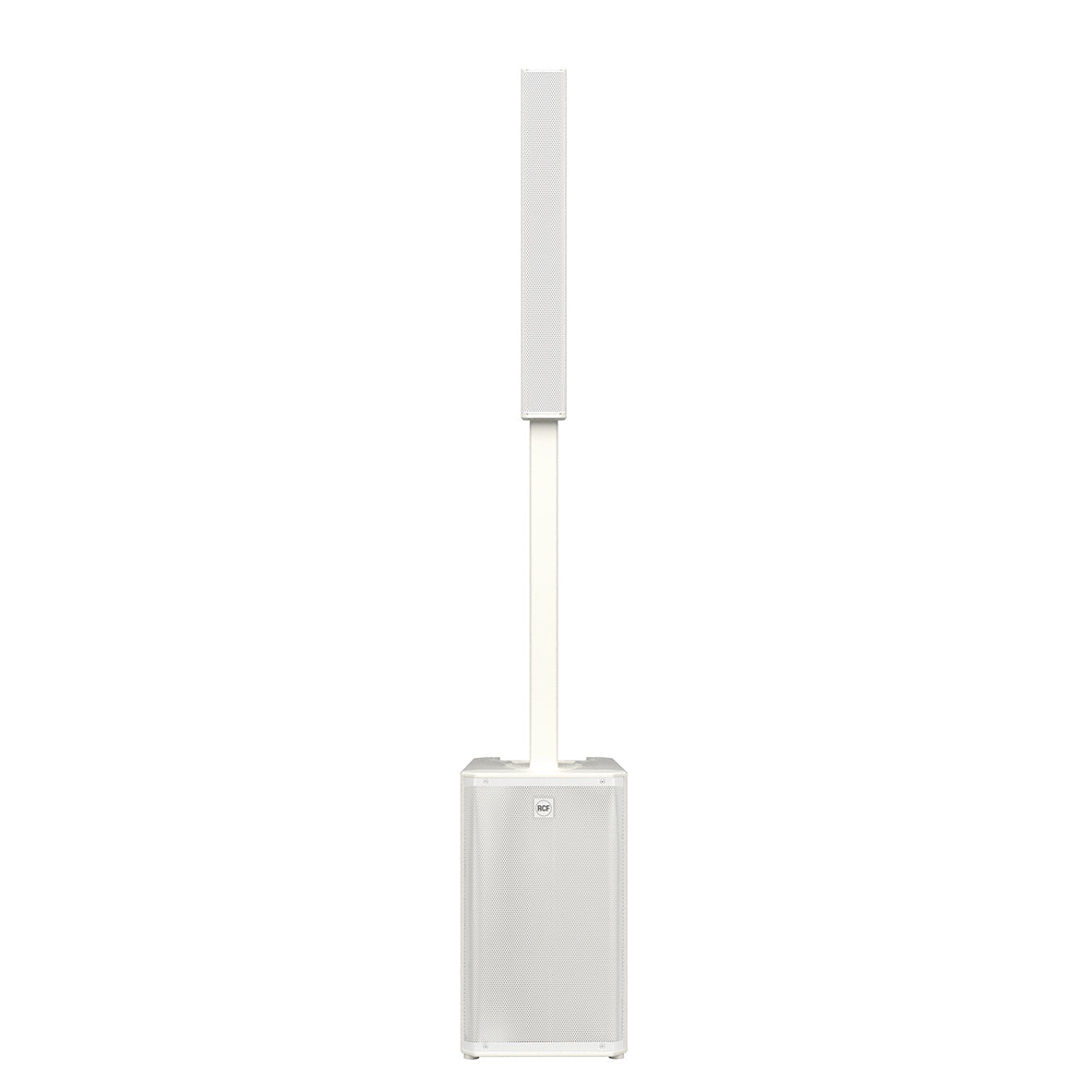

RCF EVOX JMIX 9 Active 2100-Watts 12-Inch Three-way Column Array with 8-Channel Mixer and Bluetooth - White

Mix and Stream Anywhere – The RCF RCF EVOX JMIX 9 Active 2100-Watts 12-Inch Three-way Column Array with 8-Channel Mixer and Bluetooth in White

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain.

• 8-Ch True-Stereo Digital Mixer w/ Bluetooth
• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75-inch Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 6 × 3-inch Full-Range Neo Transducers
• 12-inch RCF Precision Low-Frequency Woofer
• Enhanced Coverage And Clarity
• Sleek Composite Cabinet With Aluminum Stand Mount
• Top Speaker Padded Carrying Bag Included
• VDE Mains Connector

A 1.75-inch compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3-inch transducers and a high-power 12-inch bass-reflex woofer provide articulate mids and deep, controlled lows.

Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio.

All functions are accessible from the touch interface or the JMixRemote app.

SPECIFICATIONS

Acoustical Specifications

• Frequency Response: 40 Hz - 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal Coverage Angle: 120°
• Vertical Coverage Angle: 40°

Transducers

• Compression Driver: 1 x 0.75-inch neo, 1.75-inch v.c
• Fullrange: 6 x 3.0-inch neo, 1.0-inch v.c
• Woofer: 1 x 12-inch, 2.5-inch v.c

Input/Output Section

• Input Signal: bal/unbal
• Input Connectors: combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 200 Hz/1800 Hz
• Protections: thermal, RMS
• Limiter: soft limiter
• Controls: digital mixer controlled by touch screen and encoders

Power Section

• Total Power: 2100 W peak
• High Frequencies: 700 W peak
• Low Frequencies: 1400 W peak
• Cooling: convection
• Connections: VDE

Electronic Specifications

• Frequency Response: 20 Hz - 20 Hz
• THD+N, 20dB Gain, 0dBu Out: 0.003% A-weighted

Processing

• Processing Channels: 8
• Signal Processing: 32 bit
• A/D-D/A Conversion: 24 bit @ 48.0 kHz
• Dynamic Range: 114

Inputs

• Mic: 4
• Remote Controlled Storable Gain: yes
• Gain Range: 0 dB - 36 dB
• Input Noise Level: -114 dBu A-weighted

Mic Inputs

• Impedance: 3 kohm
• Low Cut: 20 Hz - 400 Hz
• Phantom Power: +48V yes

Mono Line

• Mono Line: 4
• Gain Selection: 0 dB - 36 dB
• Line Input Impedance: 10 kohm
• A/D Dynamic Range: 120 dB

Stereo Line

• Stereo Line: 2
• Gain Selection: 0 dB - 0 dB
• Stereo Line Input Impedence: 24 kohm

Outputs

• Main MIX: 1
• FX Send: 1
• AUX Send: 1
• AUX Output: 1
• Phones: 1

Output Specifications

• Main Out Impedance: 150 ohm
• Main Out Level: 20 dBu
• Aux Out Impedance: 150 ohm
• Aux Out Level: 20 dBu
• Phones Out Impedance: 100 ohm
• Phones Out Level: 20 dBm
• D/A Dynamic Range: 118 dB

Compressors

• RCF Compressors: compressors on MIC/LINE CH1 to CH4 inputs

EQ

• Input Channels EQ: 1 semi parametric / 2 shelving
• Description: 3 band EQ: high and low band shelving, MID band peak on INPUT
• Main Output EQ: 8 band EQ: 6 full parametric, 1 high shelving and HPF 12dB/Oct on amplifier and MAIN output

Auxiliary Sends

• AUX 1: PRE/POST
• FX POST: 1

Internal Effects

• Send Effects: 1

Mastering Processors

• Main OUT Processors: 1
• Main OUT Type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT

Electrical Specifications

• Power Supply: internal
• Standard Compliance: safety agency CE compliant

Physical Specifications

• Cabinet/Case Material: PP composite
• Handles: 1 top
• Pole Mount/Cap: quick-fit socket
• Grille: steel
• Height: 2080 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 460 mm / 18.11 inches
• Weight: 28.8 kg / 63.49 lbs
