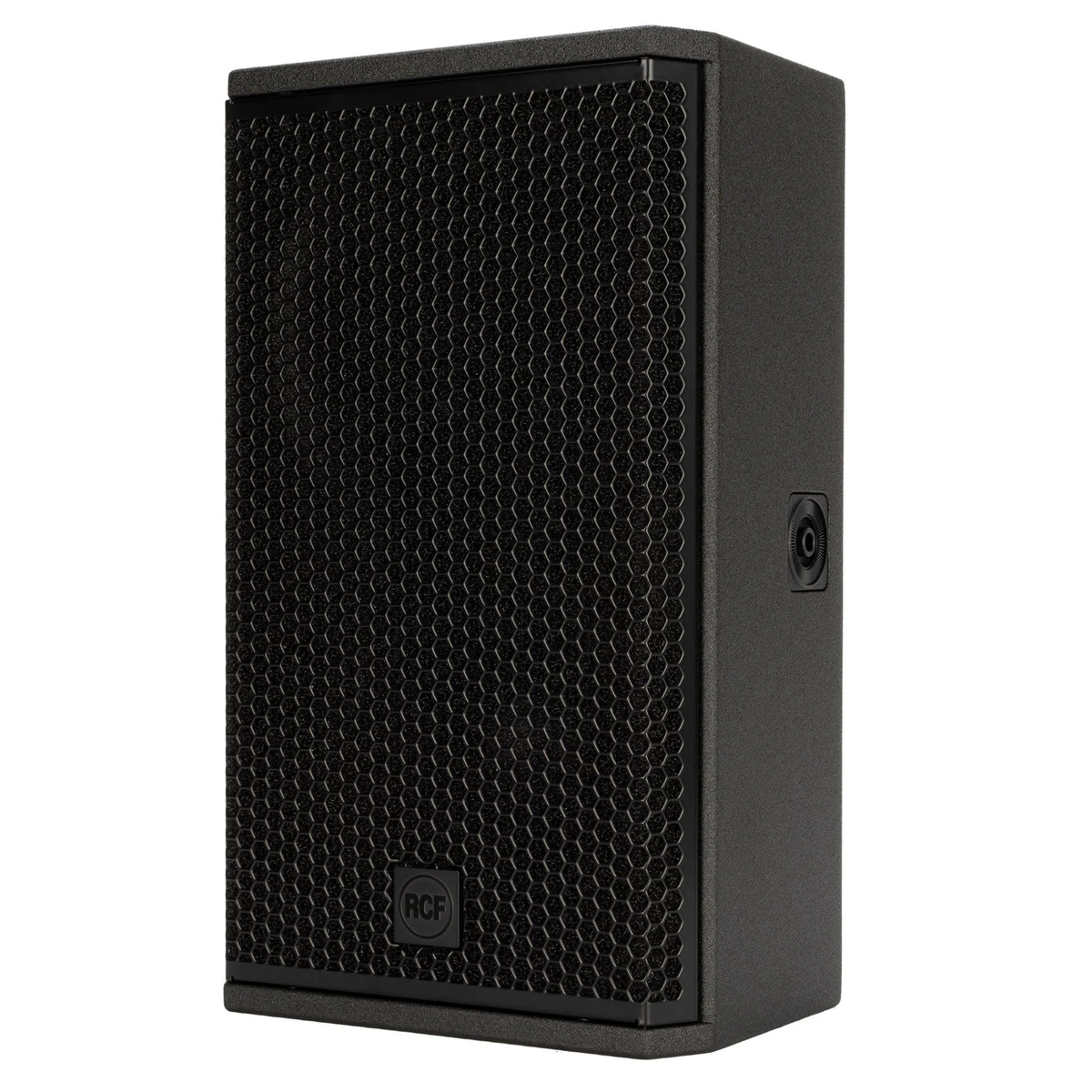

RCF KX-10A High-Performance 2000W Active 2-Way Point-Source Speaker

RCF KX 10-A 2000W 10-Inch Active Speaker with RDNet, FiRPHASE, and BMC

The RCF KX 10-A is a compact, high-output 2-way active speaker system engineered for professional users who need precise directivity, high SPL performance, and advanced system integration. Built around a 10" neodymium woofer in a bass-reflex design and a 1.75" PKX-dome neodymium compression driver on a rotatable 100° x 50° True Resistive Waveguide horn, it delivers flexible coverage for touring, installed, and portable applications. A two-channel 2000W Class D amplifier, proprietary DSP processing (FiRPHASE + Bass Motion Control), and RDNet networked management make the KX 10-A easy to deploy, tune, and monitor—whether it’s ground-stacked, pole-mounted, or flown.

• 130 dB max SPL
• Rotatable 100° x 50° True Resistive Waveguide (TRW) horn (90° rotation)
• 10" neodymium woofer with 2.5" voice coil
• Neodymium compression driver with 1.75" PKX dome
• 2-channel, 2000W peak Class D amplification
• DSP processing with FiRPHASE and Bass Motion Control (BMC)
• RDNet onboard for networked monitoring and system control
• Weatherproof, multifunctional enclosure with Quick Fit + M10 inserts
• powerCON TRUE1 TOP mains IN/OUT connectors

Designed for demanding real-world use, the KX 10-A’s rugged Baltic birch enclosure is built for durability with weatherproof finishing and tour-ready hardware. Advanced electronics and high-end AD/DA conversion support detailed sound and consistent performance, while RDNet provides remote monitoring of key status indicators such as temperature, fan/thermal behavior, meters, and protection activity across a networked system.

Specifications

Acoustical

• Frequency Response: 60 Hz – 20,000 Hz
• Max SPL @ 1 m: 130 dB
• Coverage: 100° (H) x 50° (V)

Transducers

• Woofer: 10" neodymium, 2.5" voice coil
• Compression Driver: 1 x 1.0" neodymium, 1.75" voice coil (PKX dome)

I/O

• Input Signal: balanced / unbalanced
• Input Connectors: XLR, RDNet Ethercon
• Output Connectors: XLR, RDNet Ethercon
• Input Sensitivity: -2 dBu / +4 dBu

DSP / Processing

• Crossover Frequency: 1600 Hz
• Protections: thermal, HF
• Limiter: fast limiter
• Controls: bypass, linear/high pass, volume
• RDNet: onboard

Power

• Total Power: 2000 W peak
• HF Power: 600 W peak
• LF Power: 1400 W peak
• Cooling: convection
• Power Connections: powerCON TRUE1 TOP IN/OUT

Physical

• Cabinet Material: Baltic birch plywood
• Rigging/Hardware: 3x M10 (top & bottom), 2x pin D.10 and M10 (side)
• Handles: 1 top
• Pole Mount: 35 mm insert
• Grille: steel with clothing
• Color: black
• Dimensions (H x W x D): 510 x 300 x 300 mm (20.08 x 11.81 x 11.81 in)
• Weight: 14 kg (30.86 lbs)

Shipping

• Package Dimensions (H x W x D): 615 x 355 x 355 mm (24.21 x 13.98 x 13.98 in)
• Package Weight: 15.5 kg (34.17 lbs)

Part Numbers

• 13000901: KX 10-A, 100–120V, Black, US (EAN 8024530022853)
• 13000902: KX 10-A, 220–240V, Black, EU (EAN 8024530022815)
• 13000951: KX 10-A, 220–240V, Black, UK (EAN 8024530023348)
