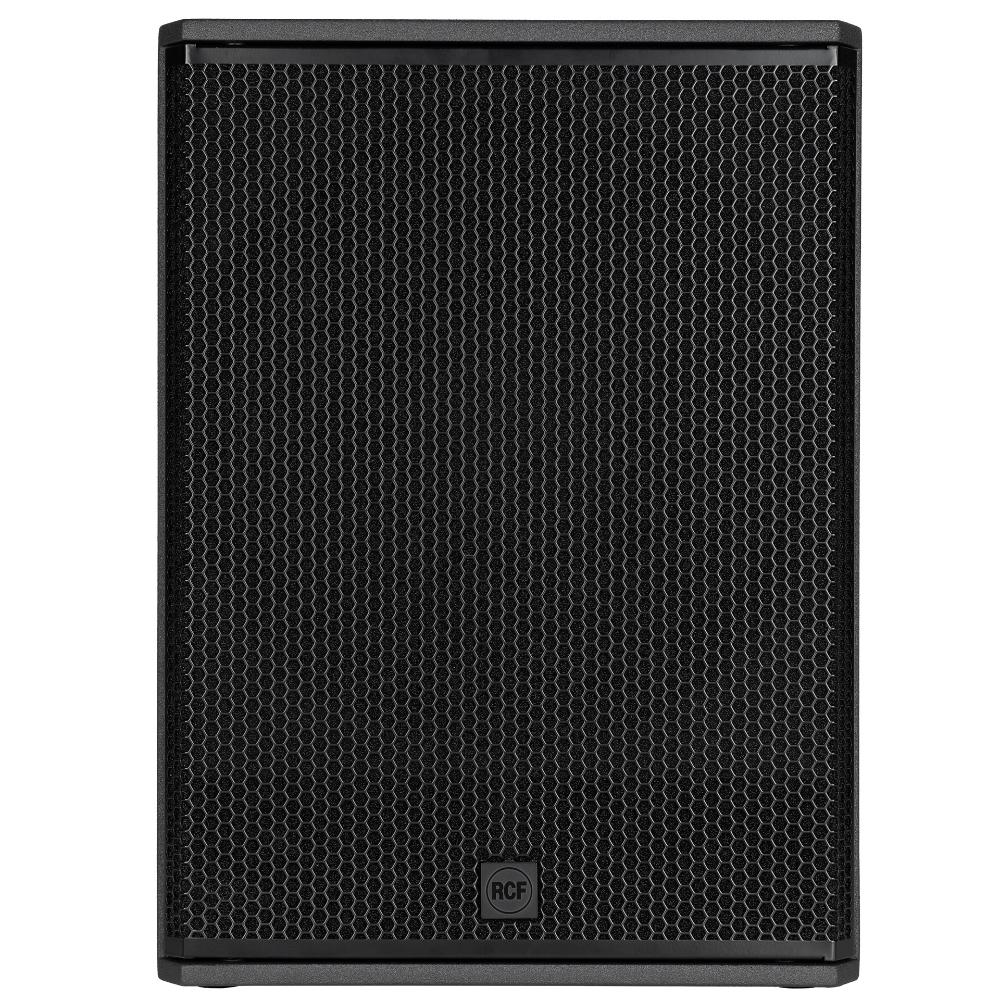

RCF SUB 18-AS 2,200-Watt 18-Inch Powered Subwoofer

Powerful Low End for Portable Rigs – RCF SUB 18-AS 2,200-Watt 18-Inch Powered Subwoofer

The RCF SUB 18-AS is a portable 18-inch high-power active subwoofer built for live sound and DJ applications where you need serious punch, fast transient response, and reliable road performance. With a 2200W Class-D amplifier and Bass Motion Control (BMC) processing, it delivers extended bass with high headroom and stable woofer behavior at any volume.

• 2200W Class-D amplifier (peak)
• Up to 135 dB Max SPL
• 35 Hz - 400 Hz frequency response
• 18-inch woofer with 4.0-inch voice coil
• Bass Motion Control for extended low end and controlled excursion
• Baltic birch tour-grade cabinet with durable polyurea coating
• Mono/Stereo Combo XLR/TRS inputs with XLR link
• Stereo XLR crossover outputs
• Rear controls: volume, polarity, low-pass frequency selection
• Convection cooling (no fan)

Designed as an ideal low-frequency partner for 10-inch, 12-inch, or 15-inch tops, the SUB 18-AS combines a high-power 18-inch transducer with RCF’s BMC algorithm that limits only over-excursion—helping keep the bass deep and musical without the phase compromises of traditional high-pass approaches. The rear I/O makes it easy to run mono or stereo feeds, link additional subs, and send crossed-over outputs to your full-range speakers for a clean, efficient system setup.

SPECIFICATIONS

Acoustical Specifications

• Frequency Response: 35 Hz - 400 Hz
• Max SPL @ 1m: 135 dB

Transducers

• Woofer: 1 x 18-inch, 4.0-inch v.c

Input/Output Section

• Input Signal: bal/unbal
• Input Connectors: combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu

Processor Section

• Protections: thermal
• Limiter: soft limiter
• Controls: volume, polarity, low pass filter frequency

Power Section

• Total Power: 2200 W peak
• Cooling: convection
• Connections: VDE

Compliance

• Safety Agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Handles: 2 side
• Pole Mount/Cap: M20 thread
• Grille: steel
• Color: black
• Height: 693 mm / 27.28 inches
• Width: 505 mm / 19.88 inches
• Depth: 685 mm / 26.97 inches
• Weight: 44.5 kg / 98.11 lbs

Shipping Information

• Package Height: 735 mm / 28.94 inches
• Package Width: 745 mm / 29.33 inches
• Package Depth: 565 mm / 22.24 inches
• Package Weight: 51 kg / 112.44 lbs
