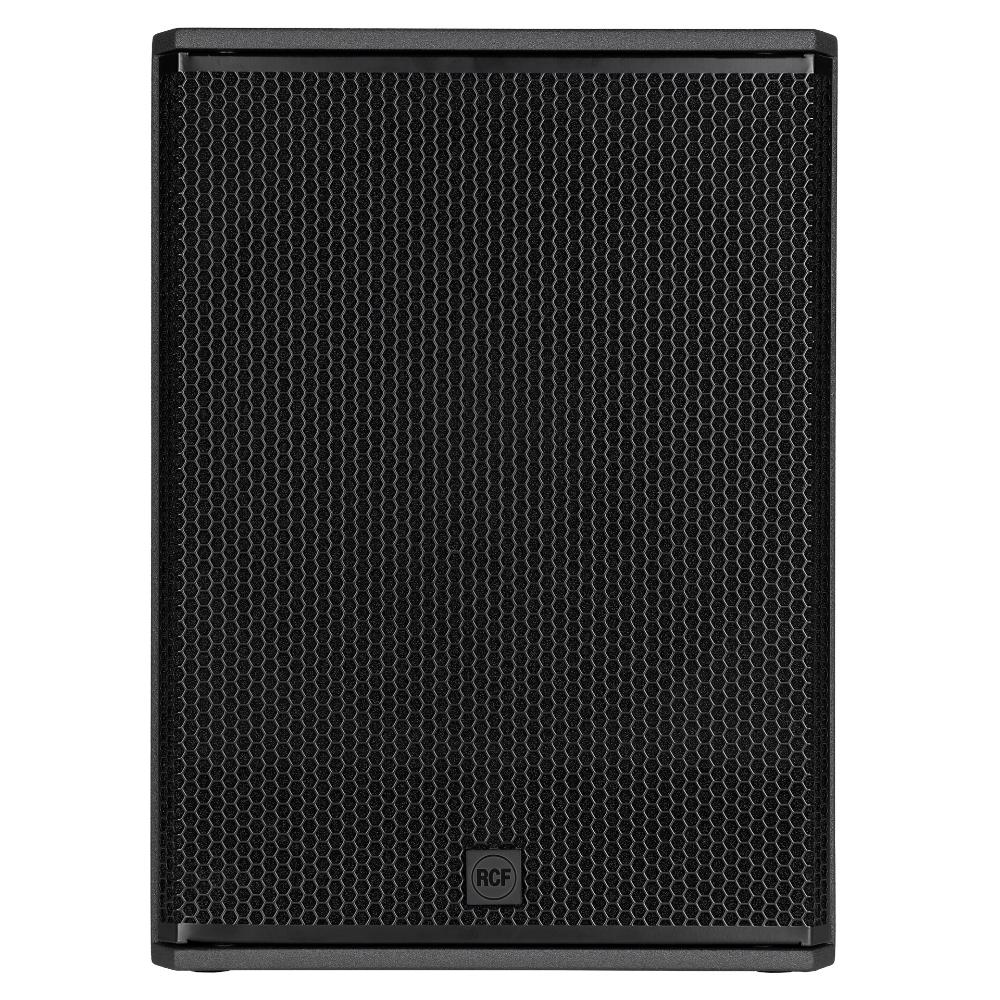

RCF SUB 18-AX Active 18-Inch Powered Subwoofer

Drive the Rhythm of the Beat with the RCF SUB 18-AX Active 18-Inch Powered Subwoofer

The SUB 18-AX is a portable 18" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 135 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 18-AX is the ideal complement for 10", 12” or 15" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

• 2200 Watt Class-D Amplifier
• 133 dB MAX SPL
• 15” Woofer, bass reflex housing
• Digital Crossover w/ Presets
• Multi-ply hardwood polyurea-coated
• LiveRemote App
• Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
• Bass Motion Control excursion management
• Powercon True1 Top Sealed AC Connector

SPECIFICATIONS

• Frequency Response: 35 Hz ÷ 120 Hz
• Max SPL @ 1m: 135 dB
• Woofer: 1 x 18'', 4.0'' voice coil
• Input Signal: Balanced/Unbalanced
• Input Connectors: Combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu
• Protections: Thermal
• Limiter: Soft Limiter
• Controls: Encoder for Volume control and data entry, Touch Screen for parameter management and monitor
• Total Power: 2200 W Peak, 1100 W RMS
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT
• Safety Agency: CE compliant
• Handles: 1 handle per side
• Pole Mount/Cap: Yes
• Color: Black, White
• Dimensions: Height 693 mm / 27.28 inches, Width 505 mm / 19.88 inches, Depth 685 mm / 26.97 inches
• Weight: 37.6 kg / 82.89 lbs
• Shipping Dimensions: Height 735 mm / 28.94 inches, Width 745 mm / 29.33 inches, Depth 565 mm / 22.24 inches
• Shipping Weight: 44 kg / 97 lbs
