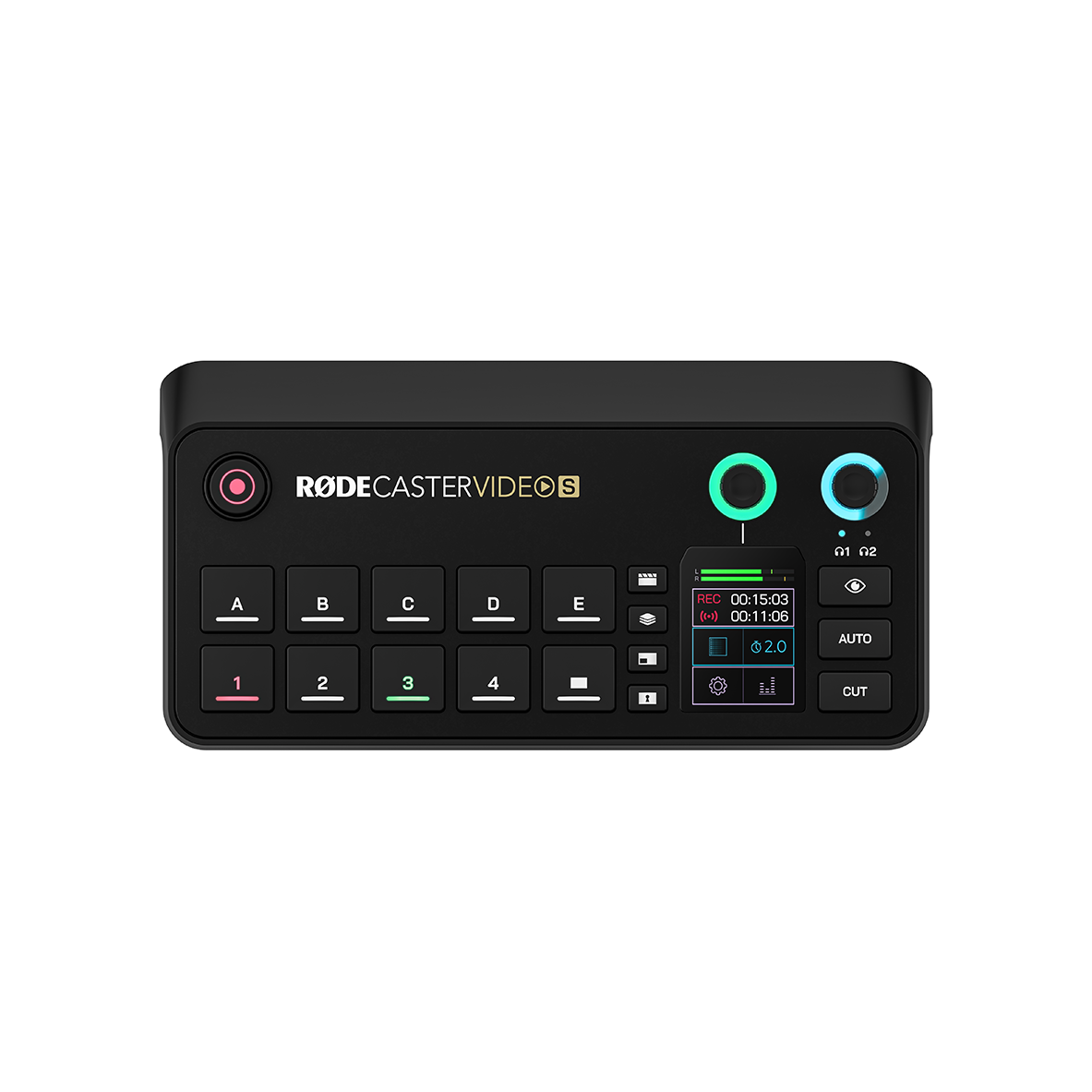

Rode RØDECaster Video S All-In-One Audio and Video Console

Create Broadcast-Quality Video and Audio Content with the Rode RØDECaster Video S All-In-One Audio and Video Console

The RØDECaster Video S is a revolutionary all-in-one console for video and audio production, giving users intuitive control over every aspect of their content. A streamlined version of the RØDECaster Video, it combines powerful video switching, recording, and production tools with a fully integrated professional audio mixer, all in a compact, desktop-friendly package. From studio shoots and video podcasts to interviews and live streams, the RØDECaster Video S delivers seamless, broadcast-quality results with total ease.

• Switch between up to four video sources and five fully customizable scenes
• High-performance octa-core CPU video and audio processor
• Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and Rode USB audio devices
• Two studio-grade Neutrik combo jacks with ultra-low noise, high-gain Revolution Preamps for capturing pristine audio from XLR microphones, instruments, or other sources
• Powerful APHEX audio processing including EQ, compressor, noise gate, high-pass filter, de-esser, and the legendary Aural Exciter, Big Bottom, and Compellor effects
• Media playback, keying, transitions, multi-source scenes, and graphic overlays accessible from the front panel
• Support for network cameras (including PTZ operation) with up to four NDI inputs and one output via Ethernet, plus dual-cam streaming with the free Rode Capture app for iOS
• 2-inch high-resolution touchscreen and rotary encoder for quick configuration and adjustment
• Connect an external SSD via USB to record video or output directly to a computer via UVC
• Remote control, custom scenes, graphics, media, audio mixing, and effects via RØDECaster App
• Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
• Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
• Dual internal wireless receivers for connecting Rode Series IV wireless microphones
• Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to external USB storage, including isolated (ISO) recording
• Designed and made in Rode’s state-of-the-art facilities in Sydney, Australia

SPECIFICATIONS

Video Specifications

• Video Input Feeds: 4 simultaneous
• HDMI Inputs: 3 type-A (HDMI 1.4b)
• USB (UVC) Inputs: 1 multi-function USB-C for UVC video
• HDMI Outputs: 1 configurable – Preview, Program, Multiview, Inputs 1–4
• Video Input Frame Rates: 1920 x 1080p – 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1920 x 1080i – 25, 29.97, 30
• Video Output Frame Rates: 1920 x 1080p – 24, 25, 30, 50, 60
• Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
• NDI Protocols: Single TCP, Multicast
• NDI Formats: Hx2, Hx3
• NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-bit
• NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48kHz

Audio Specifications

• Analog Audio Inputs: 2 combo jacks (microphone, line, or instrument) with Revolution Preamps
• Wireless Audio Inputs: 2 Series IV wireless receivers
• Audio Processing: APHEX VoxLab Processing per channel with compressor, EQ, de-esser, noise gate, high-pass filter, Aural Exciter, and Big Bottom
• Input Gain: Up to 76dB
• Equivalent Input Noise: -131.5dBV (A-weighted)
• Streaming Sample Rate / Bit Depth: 48kHz / 32-bit
• Recording Sample Rate / Bit Depth: 48kHz / 24-bit

Streaming and Recording

• Direct Streaming: RTMP/RTMPS via Ethernet or Wi-Fi
• Supported Platforms: YouTube Live, Twitch, Facebook Live, Twitter/X, Custom Server
• Video Recording: Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
• Isolated Video Recording: Up to 4 video inputs and 1 program feed (1080p30)
• Audio Recording: Stereo mix WAV audio file, 9 independent stereo WAV tracks
• Storage: External USB mass storage (exFAT) for recordings

Network and Software

• Network: Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4/5GHz)
• Software: RØDECaster App for scene building, auto-switching, mixing, effects, and configuration

Power and Dimensions

• Power Supply: USB-C PD 45W, 20V 2.25A
• Dimensions (H x W x D): 60.2 x 128.4 x 253.5 mm
• Weight: 875 g

What's in the Box

• RØDECaster Video S
• Power Supply
• SuperSpeed USB-C to USB-C Cable
