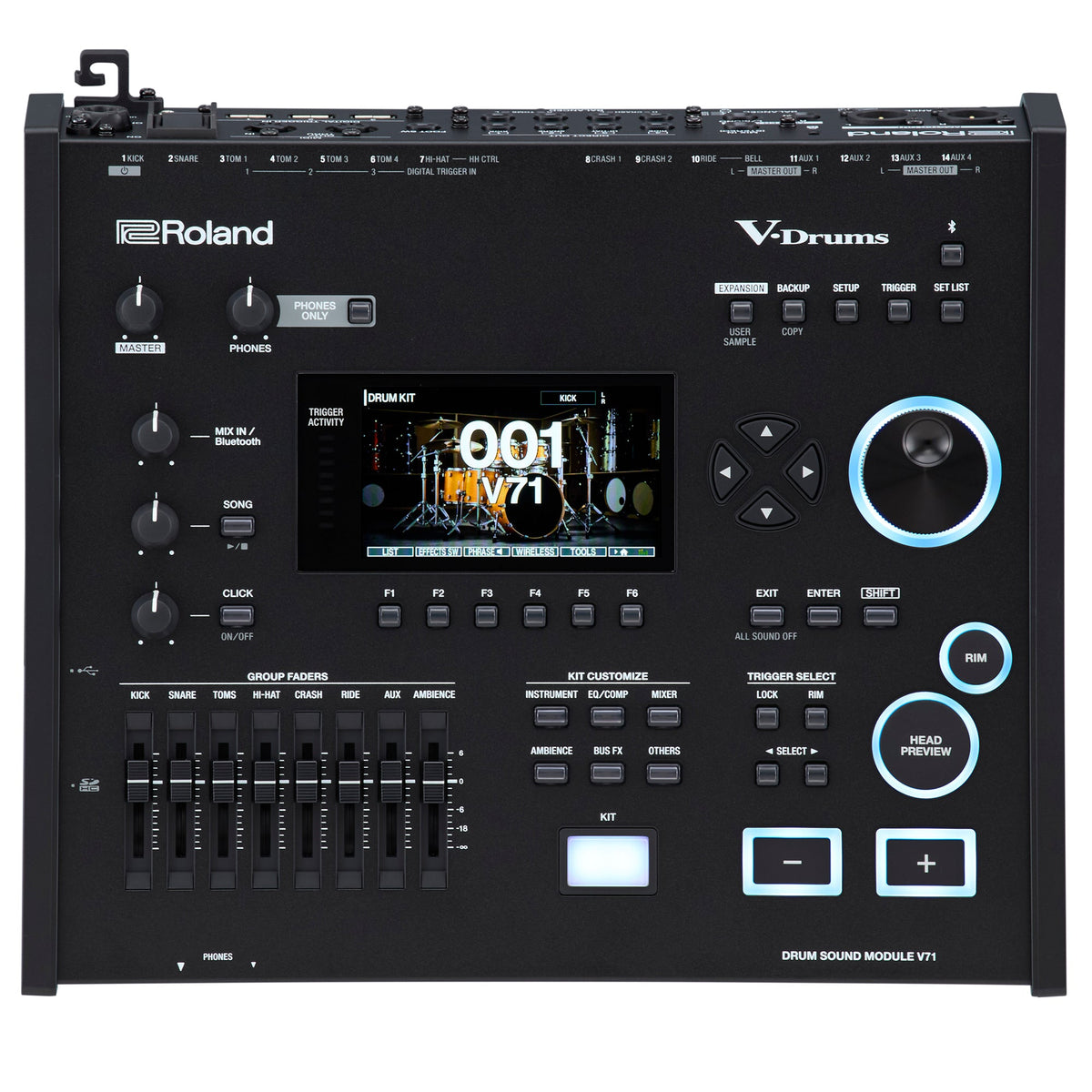

Roland V71 V-Drums Sound Module
In stock SKU: I798218-N

Musictoner

Roland V71 V-Drums Sound Module

$1,799.99

Step Into the Next Generation of Music with the Roland V71 V-Drums Sound Module Nothing beats dedicated hardware for quick setup and trouble-free playing in demanding situations. With the V71 module, you get no-compromise sound and pro audio connectivity—including multiple direct outs...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.


Step Into the Next Generation of Music with the Roland V71 V-Drums Sound Module

Nothing beats dedicated hardware for quick setup and trouble-free playing in demanding situations. With the V71 module, you get no-compromise sound and pro audio connectivity—including multiple direct outs for individual drums—housed in a rugged command center with fast startup, an informative color display, and quick-access controls.


SPECIFICATIONS

  • Drum Kits: 200 (Preset: More than 70)
  • Instruments: More than 1000
  • Effect Types
    • Layer Transient: each layer
    • Layer Equalizer: each layer
    • Pad Equalizer: each pad (by head and rim)
    • Pad Compressor: each pad (head and rim common)
    • Overhead Mic Simulator
    • Room/Reverb/Kit Resonance
    • Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
    • Bus Reverb
    • Master Compressor
    • Master Equalizer
  • User Sample Import
    • Number of User Sample: Maximum 500 (includes factory preloaded user samples)
    • Sound Length (total): 24 minutes in mono, 12 minutes in stereo
    • File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
  • Song Player (SD Card)
    • Audio File: WAV (44.1 kHz, 16/24 bits), MP3
  • Recorder
    • Recording Method: Realtime
    • Maximum Note Storage: approx. 40,000 notes
    • Export File Format: WAV (44.1 kHz, 16 bits), SMF or Recording Method: Realtime
    • Maximum length: 60 min (temporary recording: 1 min) (*1)
    • File format: WAV (44.1 kHz, 16 bits)
  • Display
    • Graphic color LCD 4.3 inch
    • TRIGGER ACTIVITY Indicator (LED)
  • Faders
    • 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
  • External Memory
    • SD Card (SDHC supported)
  • Connectors
    • TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad)
    • DIGITAL TRIGGER IN port x 3: USB A type
    • MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced
    • MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced
    • DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced
    • PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
    • MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type
    • MIDI (IN, OUT/THRU) connectors
    • USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
    • FOOT SW jack: 1/4-inch TRS phone type
    • DC IN jack
  • Number of USB Audio Record/Playback Channels
    • Vendeor Mode
    • Sampling Rate (Original): 44.1 kHz
    • Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
    • Record: 32 channels
    • Playback: 32 channels
    • Generic Mode
    • Sampling Rate (Original): 44.1 kHz
    • Record: 2 channels
    • Playback: 2 channels
  • Power Supply
    • DC 12V (AC Adaptor)
  • Current Draw: 2,400 mA
  • Power consumption when in off mode (when the power automatically turns off): 0.2 W
  • Dimensions
    • 330 (W) x 308 (D) x 110 (H) mm
      • 13 (W) x 12-1/8 (D) x 4-3/8 (H) inches
  • Weight
    • 4.2 kg
    • 9 lbs 5 oz
  • Accessories
    • Quick Start
    • Roland Cloud Connect Setup Guide
    • Roland Cloud Activation Card
    • AC Adaptor
  • Options (sold separately)
    • Pad: PD series, PDX series, BT-1
    • Cymbal: CY series
    • Kick: KD series, KT series
    • Hi-Hat: VH series
    • Hi-Hat Control Pedal: FD series
    • Acoustic Drum Trigger: RT series
    • Footswitch: BOSS FS-5U, FS-6
    • Personal Drum Monitor: PM series


    (*1) Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 1 minutes.


    Manufacturer: Roland
    Model: V71
    SKU: I798218-N-3-WHXC
    UPC: 761294520048
