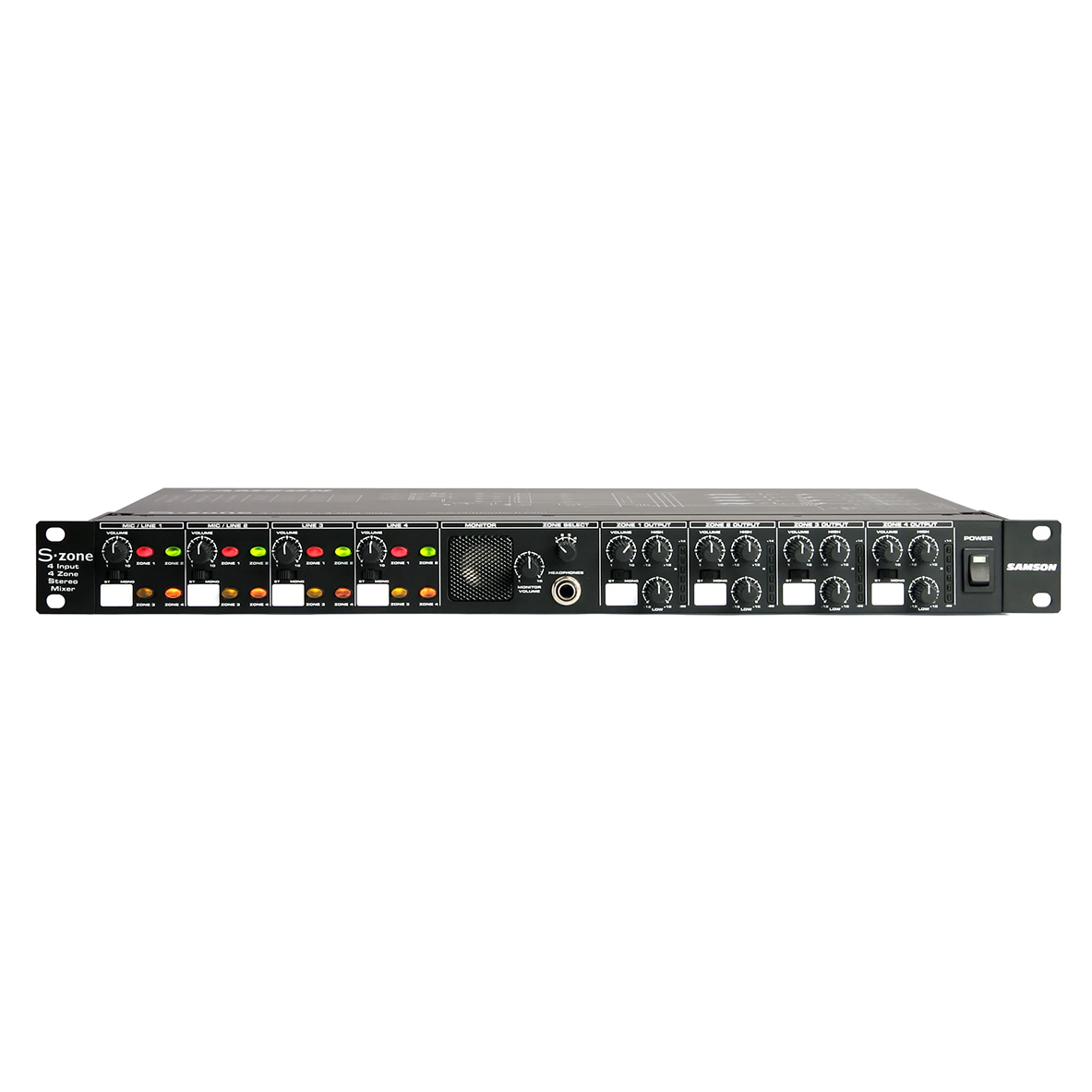

Samson S-Zone 4-Input 4-Zone Stereo Zone Mixer

Control Four Audio Zones in One Rack Space with the S-Zone 4-Input / 4-Zone Stereo Zone Mixer

The S-Zone gives system installers the tools they need to manage up to four zones of audio from a compact 1U rackmount mixer, with flexible input-to-zone assignment, onboard monitoring, and simple front-panel control.

• 4-channel / 4-zone stereo zone mixer in a single rack space (1U)
• Assign any input to any zone from the front panel with push-button routing
• Two Mic/Stereo Line inputs with ducking for paging and announcements
• Two Stereo CD/Line inputs for music sources
• Independent 2-band EQ plus input/output level control
• Built-in speaker and headphone monitoring for selectable zone monitoring
• Euroblock I/O connectors for clean, installer-friendly wiring
• Remote volume control support for convenient zone level adjustment

Designed for restaurants, retail spaces, fitness facilities, and production environments, the S-Zone makes multi-room audio straightforward. Use the unique front-panel control section to quickly route any of the four inputs to any of the four zones—no menus or complicated programming—then fine-tune each zone with dedicated volume controls and 2-band EQ. Built-in monitoring (speaker and headphones) makes it easy to check what each zone is receiving, while Euroblock connections keep installs tidy and reliable in permanent systems.

SPECIFICATIONS

• Type: 4-input / 4-zone stereo zone mixer (1U)
• Inputs: Two Mic/Stereo Line inputs with ducking; Two Stereo CD/Line inputs
• Monitoring: Onboard speaker and headphone monitoring
• Connectors: Euroblock (Inputs: 6-pin; Outputs: 9-pin)
• Remote Volume Control: Yes
• Input Impedance (Mic): 600 Ω (XLR balanced)
• Input Impedance (Line): 22 kΩ
• Max Input Level (Mic): -14 dBV (balanced)
• Max Input Level (Line): +24 dBV
• Maximum Gain (Mic): 60 dB
• Maximum Gain (Line): 26 dB
• Output Level: +17 dBV max
• Output Impedance (Balanced): 200 Ω
• Output Impedance (Unbalanced): 100 Ω
• Max S/N Ratio: 96 dB
• THD: < 0.02%
• CMRR: > 52 dB (Mic)
• Phantom Power: +15 VDC
• Tone Controls: LOW ±15 dB @ 100 Hz / HIGH ±15 dB @ 10 kHz
• Power Consumption: 5 W
• Dimensions (W x D x H): 19" x 7.5" x 1.75" / 482 mm x 190 mm x 44 mm
• Weight: 5.1 lb / 2.31 kg
