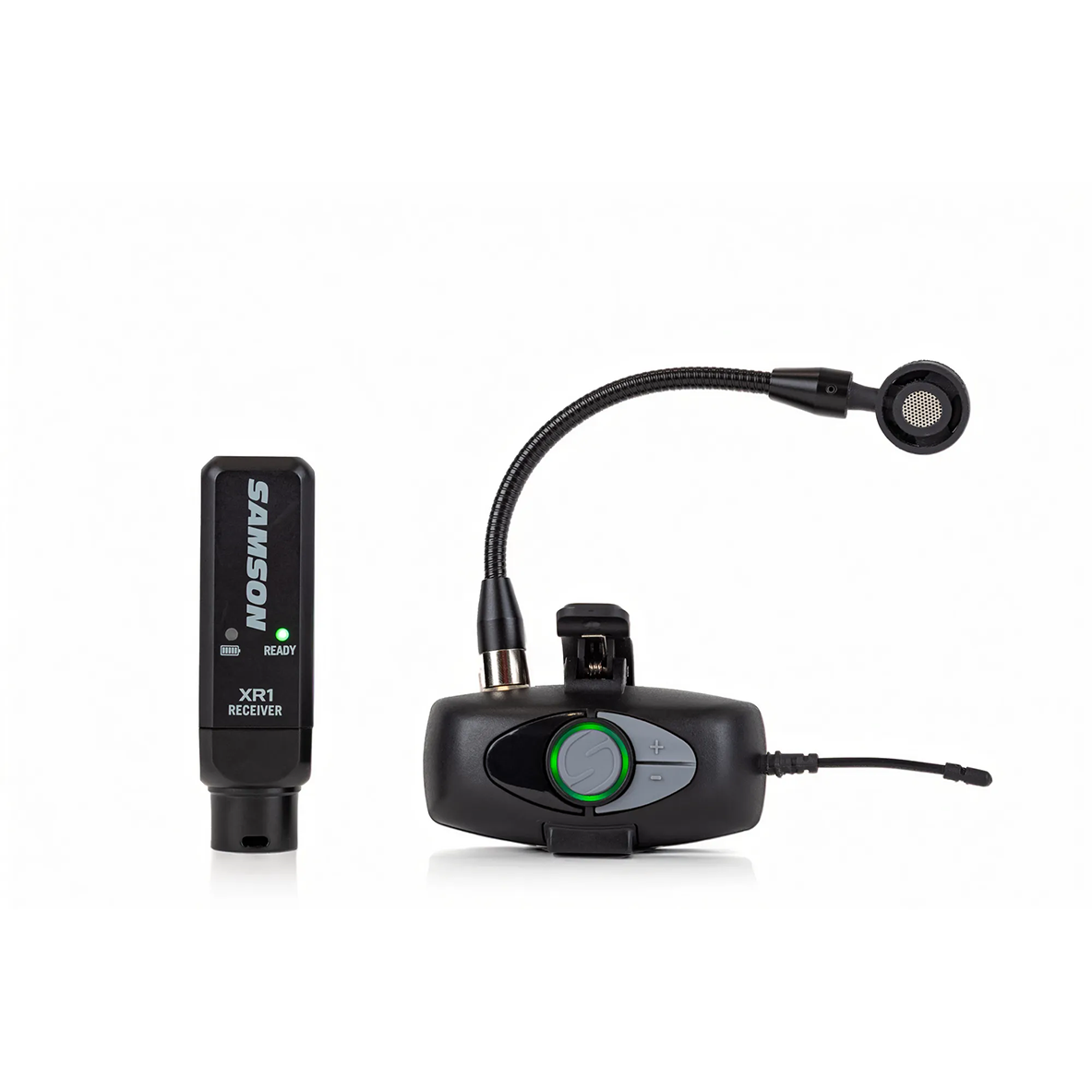

Samson SWSWXD Airline XR 2.4 GHz Digital Wireless Wind Instrument XLR System HM60 Mic

Go Cordless on Stage with the Samson AirLine XR Wireless Wind Instrument System

The Samson AirLine XR wireless wind instrument system gives horn players true cordless freedom with a clip-on, battery-powered transmitter that mounts to the instrument bell and captures your performance with a flexible gooseneck mic—paired with a compact plug-in XLR receiver for fast, gig-ready setup.

• 2.4 GHz digital wireless system with easy sync for hassle-free setup
• 100' (30 m) line-of-sight operating range for full stage mobility
• XH1 transmitter clips directly to the instrument bell (no beltpack or cable)
• HM60 condenser capsule with supercardioid pickup pattern
• Handles up to 125 dB SPL with 3-point halo isolation mount
• 8.5" gooseneck (Mini-XLR P3) for precise mic placement + windscreen included
• Plug-and-play XR1 XLR “stick” receiver fits mixers and powered speakers
• Built-in rechargeable lithium-ion batteries with USB-C charging (up to 6 hours)
• Variable gain, one-touch mute, and low-battery LED indicator

Designed for working sax, trumpet, trombone, and other horn players, AirLine XR keeps your rig lightweight while delivering reliable digital wireless performance. The clip-on XH1 transmitter mounts directly to your bell and positions the HM60 supercardioid condenser capsule right where you need it—helping isolate your instrument and reduce bleed in loud stage environments. The XR1 receiver plugs straight into any XLR input, cutting setup time from minutes to seconds. With up to 6 hours of rechargeable battery life and a 100' operating range, the AirLine XR is a powerful, portable solution for live sound, worship stages, and theater/production work.

SPECIFICATIONS

• System Type: 2.4 GHz digital wireless wind instrument system
• Working Range: 100' (30 m) line of sight
• Audio Frequency Response: 50 Hz - 15 kHz
• T.H.D. (Overall): < 1% (@AF 1 kHz, RF 46 dBu)
• Dynamic Range: > 100 dB (A-weighted)
• Signal to Noise: > 95 dB
• Operating Temperature: –10°C (14°F) to +60°C (+140°F)
• Tone Key Frequency: 35 kHz

• Mounting: Clips directly to instrument bell
• Mic Capsule: HM60 condenser, supercardioid
• Max SPL: 125 dB SPL
• Isolation Mount: 3-point halo isolation mount
• Gooseneck: 8.5" (Mini-XLR P3 connector)
• Controls: Variable Gain control; One-touch Mute
• Indicators: Low battery LED
• Input Connector: Mini-XLR (P3)
• Input Impedance: 3 kΩ
• Input Gain Range: 20 dB
• RF Power: 10 mW EIRP
• Power Requirements: 3.6 V 500 mAh lithium-ion rechargeable battery
• Battery Life: Up to 6 hours
• Charging: USB-C
• Dimensions (L x W x H): 5.9" x 6.7" x 3.9" / 150 mm x 170 mm x 100 mm
• Weight: 0.13 lb / 60 g

• Design: Plug-and-play XLR “stick” receiver
• Wireless: 2.4 GHz digital
• Audio Output Level (Unbalanced): +14 dBu
• Audio Output Level (Balanced): +9 dBu
• Audio Output Impedance (Unbalanced): 810 Ω
• Audio Output Impedance (Balanced): 240 Ω
• Sensitivity: -100 dBm / 30 dB sinad
• Image Rejection: > 50 dB
• Operating Voltage: 15 VDC, 200 mA
• Battery Life: Up to 6 hours (rechargeable lithium-ion)
• Charging: USB-C
• Dimensions (L x W x H): 3.35" x 0.98" x 0.98" / 85 mm x 25 mm x 25 mm
• Weight: 0.13 lb / 60 g
