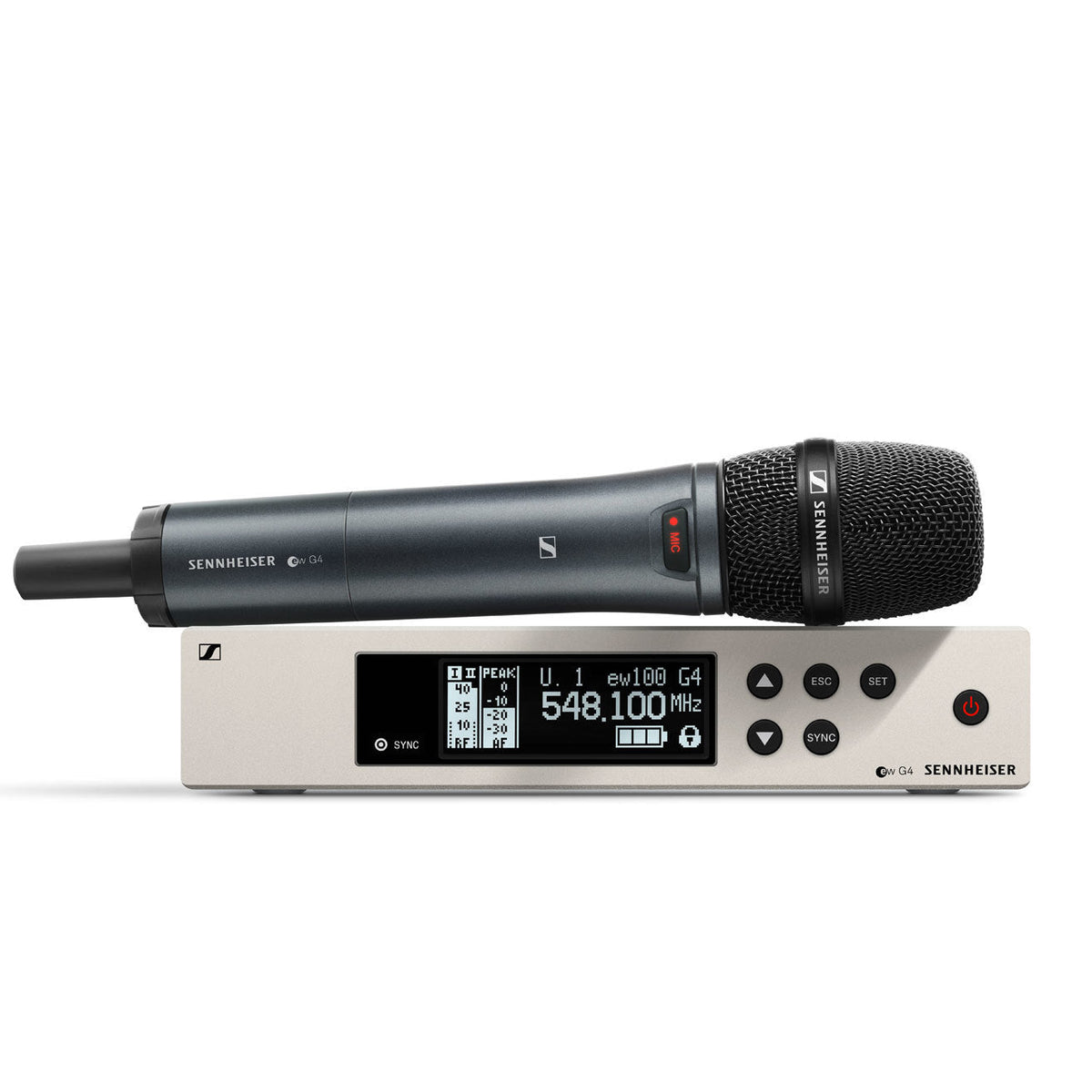

Sennheiser EW 100 G4-835-S-A1 Cardioid Dynamic Wireless System - A1 Band

Simple, Flexible, and Reliable - Sennheiser EW 100 G4-835-S-A1 Cardioid Dynamic Wireless System - A1 Band

The Sennheiser 100 series has become the first choice for both sound designers and occasional users because of its intuitive operating concept. Make no compromises in terms of live sound.

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
• State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

SPECIFICATIONS

EM 100 G4

• Frequency Range: A1: 470 - 516 MHz
• Dimensions: Approx. 190 x 212 x 43 mm
• THD, Total Harmonic Distortion: ≤ 0.9 %
• Weight: Approx. 980 g
• Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu
• XLR socket (balanced): +18 dBu
• Signal-to-Noise ratio: ≥ 110 dBA
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Modulation: Wideband FM
• Power Supply: 12 V DC
• Antenna Connector: 2 BNC sockets
• Current Consumption: 300 mA
• Adjacent Channel Rejection: Typically ≥ 65 dB
• Intermodulation Attenuation: Typically ≥ 65 dB
• Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
• Squelch Low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Equalizer
• Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: ≥ 70 dB

SKM 100 G4-S

• Dimensions: Approx. Ø 50 x 265 mm
• THD, Total Harmonic Distortion: ≤ 0.9 %
• Weight (incl. batteries): Approx. 450 g
• Signal-to-Noise Ratio: ≥ 110 dBA
• RF Output Power: Max. 30 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Typically 8 h
• Modulation: Wideband FM
• Power Supply:c2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
• Input Impedance: 40 kΩ
• Max. Input Voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF Frequency Response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency Stability: ≤ ±15 ppm

MMD 835-1

• Sound Pressure Level (SPL): 154 dB SPL
• Transducer Principle: Dynamic
• Pick-Up Pattern: Cardioid
• Sensitivity: 2.1 mV/Pa
