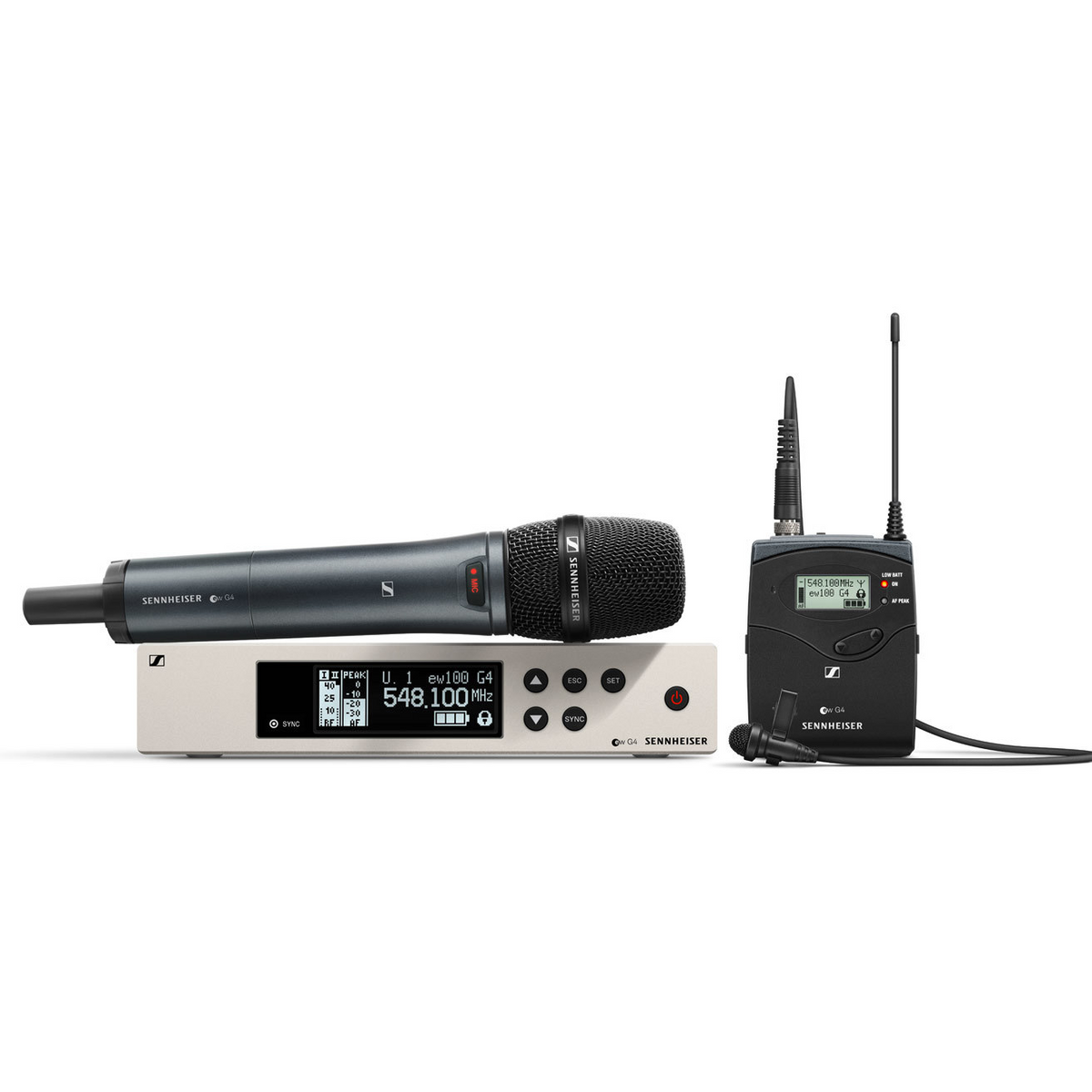

Sennheiser EW 100 G4-ME2/835-S Handheld and Lavalier System - G4 Band

Get the Full Package with theSennheiser EW 100 G4-ME2/835-S Handheld and Lavalier System - G4 Band

The EW 100 G4-ME2/835-S Handheld and Lavalier System is a versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. Dynamic handheld microphone e 835, robust bodypack transmitter and easy clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage.

• Engineered for professional live sound: Rugged all-in-one combo wireless system for singers, presenters and moderators
• Dynamic handheld microphone e 835, robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

SPECIFICATIONS

EM 100 G4

• Frequency Range: A1: 470 - 516 MHz
• Dimensions: Approx. 190 x 212 x 43 mm
• THD, Total Harmonic Distortion: ≤ 0.9 %
• Weight: Approx. 980 g
• Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu
• XLR socket (balanced): +18 dBu
• Signal-to-Noise ratio: ≥ 110 dBA
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Modulation: Wideband FM
• Power Supply: 12 V DC
• Antenna Connector: 2 BNC sockets
• Current Consumption: 300 mA
• Adjacent Channel Rejection: Typically ≥ 65 dB
• Intermodulation Attenuation: Typically ≥ 65 dB
• Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
• Squelch Low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Equalizer
• Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: ≥ 70 dB

SK 100 G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, Total Harmonic Distortion: ≤ 0.9 %
• Weight (incl. batteries): Approx. 160 g
• Signal-to-Noise Ratio: ≥ 110 dBA
• RF Output Power: Max. 30 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Typically 8 h
• Modulation: Wideband FM
• Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption at Nominal Voltage: typ. 180 mA
• With Transmitter Switched Off: ≤ 25 µA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Max. Input Voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF Frequency Response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency Stability: ≤ ±15 ppm

SKM 100 G4-S

• Dimensions: Approx. Ø 50 x 265 mm
• THD, Total Harmonic Distortion: ≤ 0.9 %
• Weight (incl. batteries): Approx. 450 g
• Signal-to-Noise Ratio: ≥ 110 dBA
• RF Output Power: Max. 30 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Typically 8 h
• Modulation: Wideband FM
• Power Supply:c2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
• Input Impedance: 40 kΩ
• Max. Input Voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF Frequency Response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency Stability: ≤ ±15 ppm

ME 2

• Connector: 3.5 mm jack
• Frequency Response: 50 to 18,000 Hz (ME 2-II)
• Max. Sound Pressure Level: 130 dB
• Cable Length: Approx. 1.60 m
• Transducer Principle: pre-polarized condensor microphone
• Pick-Up Pattern: Omni-directional
• Sensitivity in Free Field, No Load (1 kHz): 20 mV/Pa
• Equivalent Noise Level: 36 dB

MMD 835-1

• Sound Pressure Level (SPL): 154 dB SPL
• Transducer Principle: Dynamic
• Pick-Up Pattern: Cardioid
• Sensitivity: 2.1 mV/Pa

Manufacturer: Sennheiser
Model: EW 100 G4-ME2/835-SA
SKU: I672699-N-0-WHXX
UPC: 615104368286
