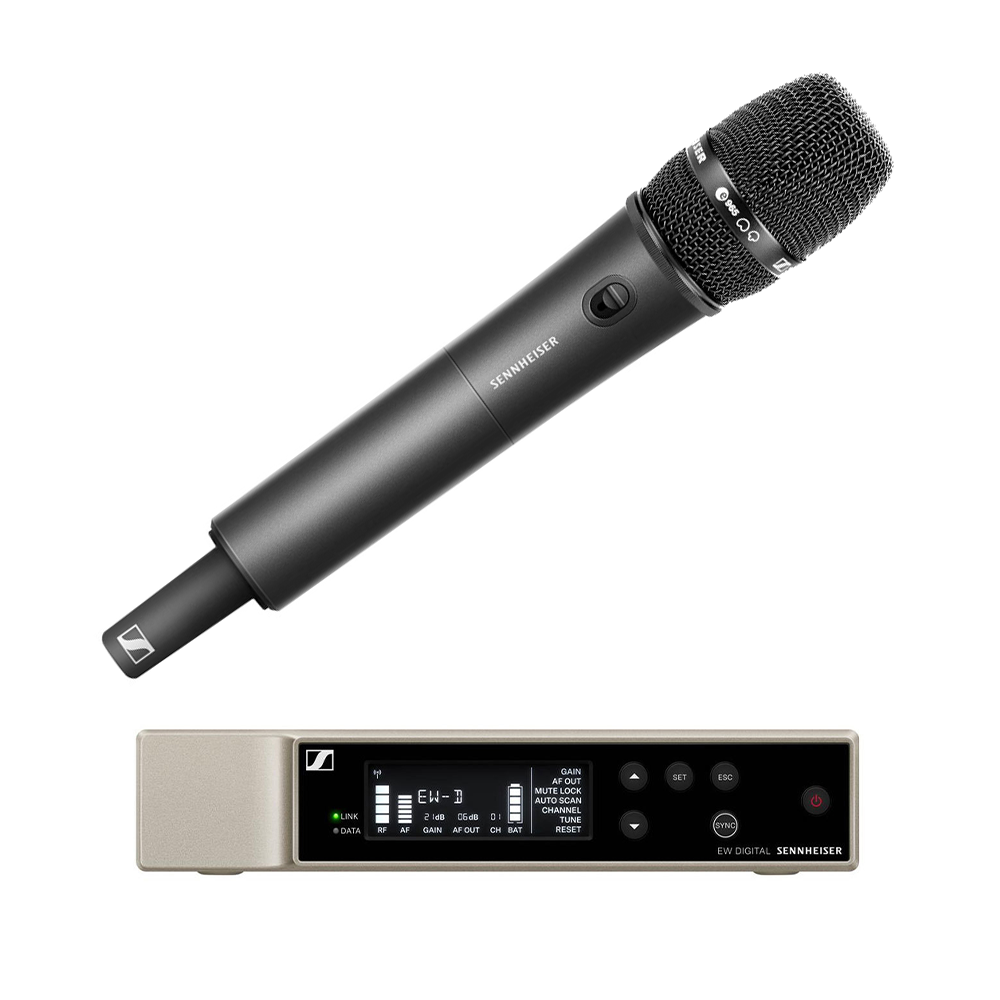

Sennheiser EW-D 965 Digital Handheld Wireless System with e965 Capsule - Q1-6 Frequency

Get an All-in-One Digital Handheld Set with Sennheiser's Flagship E 965 Mic Capsule and EW-D SKM-S Base Set Q 1-6, Frequency Range 470.2 - 526 MHz

This is a versatile, feature-rich system for those who sing, speak or mic their instruments which allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 965 capsule, a large-diaphragm, true condenser capsule. Due to its dual-membrane technology, the pick-up pattern can be easily switched between cardioid and super-cardioid for extreme versatility.

Equidistant Spacing - Simpler Than it Sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in Sennheiser's flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An Engineer in Your Pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

SPECIFICATIONS

EW-D EM

• Dimensions: 212 x 44 x 189 mm
• Weight: Approx. 1000g (without antennas and power supply)
• Current Consumption: Greater than or equal to 300 mA
• Input Voltage Range: 11 - 13 V
• Audio Output Level: 18 dBu max
• Transmission Power: BLE: max. 10 mW EIRP

MMK 965

• Weight: 151 g
• Sound Pressure Level (SPL): 144/150 dB
• Transducer Principle: Externally polarized condenser microphone
• Pick-Up Pattern: cardioid/ super cardioid, switchable
• Sensitivity: 1,8/5,7 mV/Pa

EW-D SKM-S

• Weight: Approx. 195 g (without microphone module)
• Power Supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
• Current Consumption: Less than 300 mA
• Input Voltage Range: 2.0 - 4.35 V
• Transmission Power
• Audio Link: 10 mW
• ERP (Range Y1-3: 12 mW ERP)
• BLE: max. 10 mW EIRP
• Dimensions
• 50 x 268 mm (incl. MMK 965 microphone module)
• 40 x 200 mm (without microphone module)

General

• Frequency Range: 470.2 - 526 MHz
• THD, total harmonic distortion: greater than/equal to -60 dB for 1 kHz @ -3 dBfs input level
• Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating Relative Humidity: 5 - 95 % (non-condensing)
• Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

Included In Box

• EW-D EM rack receiver
• EW-D SKM-S handheld transmitter
• MMK 965 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• Power supply with country adapters
• Rackmount set
• 4 rubber feet
• Quick guide
• Safety guide
• Manufacturer declaration sheet
