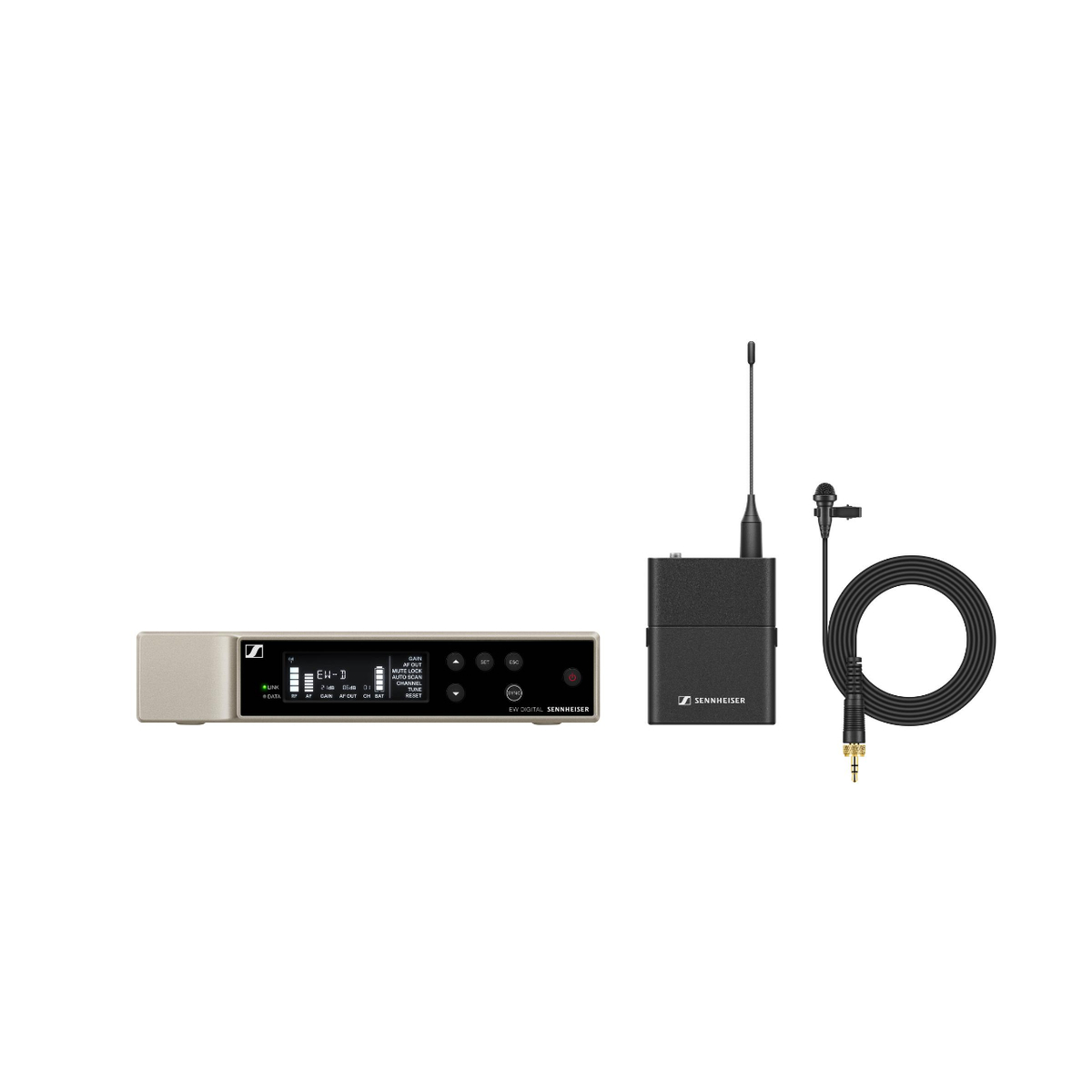

Sennheiser EW-D ME2 SET Evolution Wireless Digital Lavalier Mic Set

Evolve Your Wireless Capabilities With the Sennheiser EW-D ME-2 Lavalier Microphone System Set

Versatile and feature-rich for those who sing, speak, or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

With a metal housing, the robust bodypack transmitter and unobtrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility suit perfectly for daily use on stage.

• Digital wireless eliminates noise, interference and static bursts
• UHF transmission greatly enhances range, reliability and scalability
• Mobile App streamlines setup and operation and eliminates complicated menus
• Automated setup creates reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies
• Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
• 56 MHz Bandwidth will allow for up to 90 channels
• Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

SPECIFICATIONS

Delivery Includes

• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• ME 2 Lavalier Microphone
• 2 rod antennas
• Power supply with country adapters
• Rackmount set
• 4 rubber feet
• Quick guide
• Safety guide
• Manufacturer declaration sheet

System

• Audio Link Frequency Ranges
• Q1-6: 470.2-526 MHz
• R1-6: 520-576 MHz
• R4-9: 552-607.8 MHz
• S1-7: 606.2-662 MHz
• S7-10: 662-693.8 MHz
• U1/5: 823.2-831.8 and 863.2-864.8 MHz
• V3-4: 925.2-937.3 MHz
• Y1-3: 1785.2-1799.8 MHz
• Bluetooth Low Energy (BLE) Frequency Range: 2402-2480 MHz
• Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBA
• Audio THD: less than or equal to -60 dB for 1 kHz @ -3 dBA input level
• Operating Temperature: -10 C to 55 C (14 F to 131 F)
• Relative Humidity: 5 - 95% (non-condensing)

ED-W EM (Rack Receiver)

• Input Voltage: 11-13 V
• Input Current: less than or equal to 300 mA
• Transmit Power (radiated): BLE max 10 mW EIRP
• Audio Output Power: 18 dBu max
• Dimensions: 212 x 44 x 189 mm
• Weight: Approximately 1kg (without antennas and power supply)

EW-D SK (Bodypack Transmitter)

• Input Voltage: 2-4.35 V
• Input Current: 300 mA
• Power Supply: 2 AA batteries 1.5V, or BA 70 rechargeable battery pack
• Occupied Bandwidth: 200 kHz
• Transmit Power (radiated): Audio link and BLE, max 10 mW EIRP (range Y1-3: max 12 mW EIRP)
• Dimensions: 63 x 80 x 20 mm (without antenna)
• Weight: approx. 120 g (without batteries)

ME 2 Lavalier Microphone

• Transducer Principle: Pre-polarized Condenser Microphone
• Pick-Up Pattern: Omni-Directional
• Sensitivity (free field, no load) @ 1kHz: 17 mV/Pa
• Max SPL @ 1kHz: 130 dB SPL
• Frequency Response: 50 to 18,000 Hz
• Equivalent Noise Level (A-Weighted): 32 dB
• Connector: 3.5mm jack
• Cable Length: 5 ft
• Supply Voltage: 25 V
